Part Number # BJMI8-5
SKU # 2186478
Image Disclaimers Message
Brand: ENTRELEC
BJMI8-5
ENTRELEC 1SNA176672R0100 Terminal Block & Strip Conducting Accessories
Part Number # BJMI8-5
SKU # 2186478
$53.40 / 10Each
Typical price:$68.79 / Each
ENTRELEC BJMI8-5 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | BJMI8-5 |
| SKU #: | 2186478 |
| Amperage Rating: | 41 A |
| Dimensions: | 23.3 mm H x 8 mm W x 8 mm L |
| Series: | BJMI8-5 |
| Suitable For Use With: | C6/8/D2-5/8-ADO/D2-5/8-ADO-NF/D4/8-ADO/D4/8-ADO-NF/D6/8-ADO/D6/8-ADO-NC/D6/8-ADO-RS/D6/8-D2-ADO/M4/8-D2-SB/M4/8-D2-SF/M6/8/M6/8-D/M6/8-D2-NC/M6/8-NC/M6/8-RS |
| Type: | Low Voltage |
| Color: | Grey |
| Material: | Polyamide |
| UNSPSC: | 39121410 |
| UPC: | 00662019016672 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$53.40 / 10Each
Typical price:$68.79 / Each
Quantity:
ENTRELEC 1SNA176672R0100 Terminal Block & Strip Conducting Accessories
Brand: ENTRELEC
Part Number: BJMI8-5

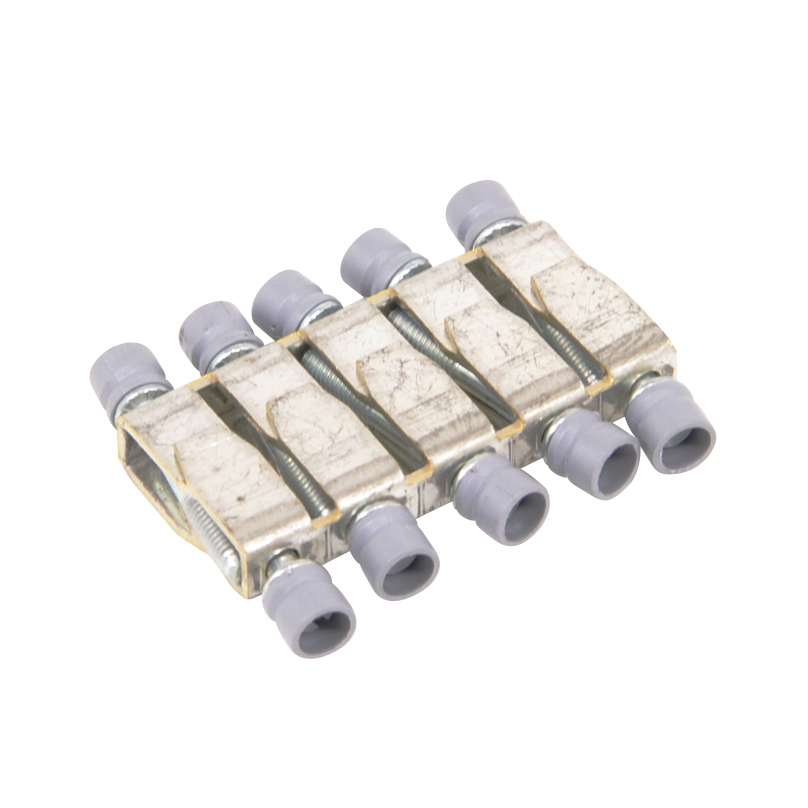

5 pole, type BJMI8, 41 Amp assembled jumber bar with IP20 protection.
Additional Description: TEC -1SNA176672R0100 BJMI8-5 POLES Jumper Bars 017667201
Catalog Description: Terminal Block & Strip Conducting Accessories, Jumper Bar, 5 Pole, Gray, Product Spacing .314 in [8 mm], -55 – 110 °C [-67 – 230 °F]
BJMI8-5 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #2186478Part Number #BJMI8-5UNSPSC39121410UPC00662019016672
