ENTRELEC 1SNA195637R1200 Reliable electrical and mechanical contact with the rail
Part Number # 1SNA195637R1200
SKU # 2391659

1SNA195637R1200
ENTRELEC 1SNA195637R1200 Reliable electrical and mechanical contact with the rail
Part Number # 1SNA195637R1200
SKU # 2391659
ENTRELEC 1SNA195637R1200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA195637R1200 |
| SKU #: | 2391659 |
| Dimensions: | 50.5 mm H x 6 mm W x 40.5 mm L |
| Spacing: | 0.235 in |
| Type: | M4/6.3A.P |
| UNSPSC: | 39121410 |
| UPC: | 00066201996431 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA195637R1200 Reliable electrical and mechanical contact with the rail
Brand: ENTRELEC
Part Number: 1SNA195637R1200
TE Connectivity, 1SNA195637R1200, TE Connectivityrminal Block, M4/6.3A.P, Series: SNA, 600 V, 480 A, 3 Pole, 12 AWG Wire, 0.374 in Wire Strip Length, Screw Clamp TE Connectivityrminal, 0.235 in Spacing, 0.5 N-m Torque, DIN Rail Mounting, -55 to 110 deg C, Polyamide, Green, 50.5 mm H x 6 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA195637R1200 (N) M4/6.3A.P Screw Clamp Terminal Blocks - Ground - Green-Yellow 019563712 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Reliable electrical and mechanical contact with the rail, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA195637R1200 Application
For Signal1SNA195637R1200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA195637R1200 Standards
UL 94V-0|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2391659Part Number #1SNA195637R1200UNSPSC39121410UPC00066201996431

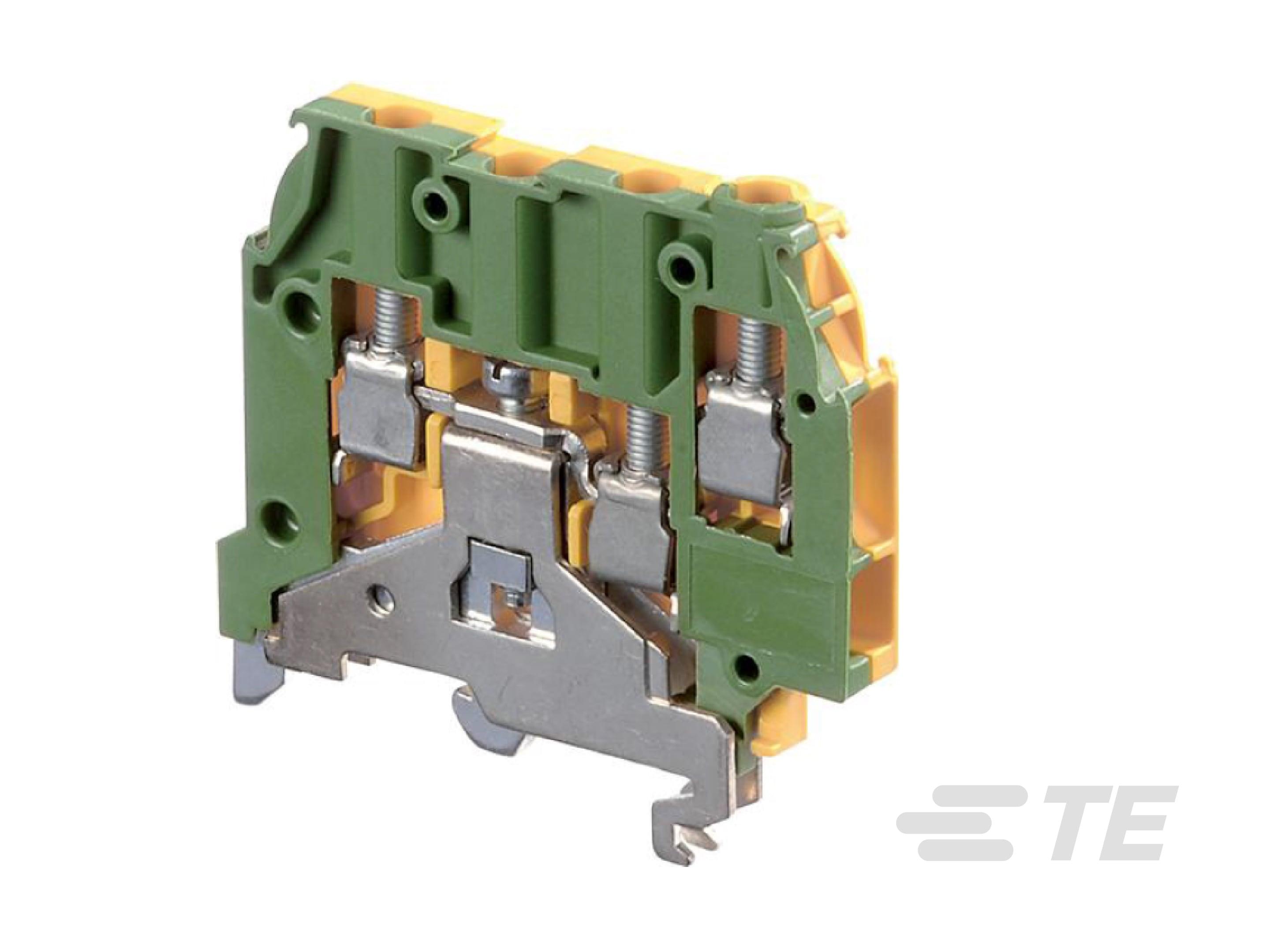

Image provided may only be a representation of final product and may include optional equipment
