Part Number # 1SNA199095R1300
SKU # 44355
1SNA199095R1300
ENTRELEC 1SNA199095R1300 Protect your circuits with 6.35x25.4 and 6.35x32 fuse terminal blocks (fuse not supplied with terminal blocks).
Part Number # 1SNA199095R1300
SKU # 44355
ENTRELEC 1SNA199095R1300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA199095R1300 |
| SKU #: | 44355 |
| Amperage Rating: | 16, 16 A |
| Dimensions: | 58 mm L x 13 mm W x 85 mm H, 85 mm H x 13 mm W x 58 mm D |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 13, 13 mm |
| Temperature Rating (Degrees F): | -40 to 111, -40 to 111 deg C |
| Terminal Size: | ML10/13SF |
| Terminal Type: | Screw/Clamp |
| Torque Rating: | 1.2 to 1.4, 1.2 to 1.4 N-m |
| Type: | 1-Level, Fused, ML10/13SF |
| Wire Size: | 10, 10 AWG |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121629 |
| UPC: | 00662019964997 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA199095R1300 Protect your circuits with 6.35x25.4 and 6.35x32 fuse terminal blocks (fuse not supplied with terminal blocks).
Brand: ENTRELEC
Part Number: 1SNA199095R1300
ABB Fuse Terminal Block, 1-Level, Series: SNA, 800 VAC, 16 A, 10 AWG Wire, 12 mm Wire Strip Length, ML10/13SF Terminal, 13 mm Spacing, 1.2 to 1.4 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -40 to 111 deg C, Thermoplastic, Black, 58 mm L x 13 mm W x 85 mm H Dimensions
Additional Description: TEC -1SNA199095R1300 ML10/13.SF Screw Clamp Terminal Blocks - For 6.3 x 25 and 6.3 x 32 fuses - Black 019909513
Catalog Description: Protect your circuits with 6.35x25.4 and 6.35x32 fuse terminal blocks (fuse not supplied with terminal blocks).
1SNA199095R1300 Application
For applications ranging from standard distribution and control panels, to specialized applications in key industries such as traction, energy, maritime, explosive atmospheres and material handling1SNA199095R1300 Item Features
- Self-locking clamp design prevents screw loosening
- Quick fuse installation and replacement
- Touch-safe IP20 protection
- High quality steel offers a very high over-torque resistance
- Compensates for the flattening of copper under contact pressure
- Clamp is protected from harsh environments by a zinc dichromate surface treatment
- Flexible 1x 0.5 to 10 sq-mm, rigid 1x 0.5 to 16 sq-mm connecting capacity main circuit
- G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 DIN rail mounting
- 3 deg pollution
- 5.5 mm recommended screw driver
- For 6.3 x 25 and 6.3 x 32 fuses
- 10 sq-mm rated cross section
- A6 gauge type
- 800 VAC IEC, 600 VAC UL, 600 VAC CSA rated, 16 A IEC, 25 A UL/CSA rated
- 10 sq-mm solid rated IEC wire range, 22 to 12 AWG stranded rated UL, 8 AWG CSA wire range
1SNA199095R1300 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cUL Listed|CE Certified|EAC Certified|UL94 V-0 Flammability RatingSKU #44355Part Number #1SNA199095R1300UNSPSC39121629UPC00662019964997

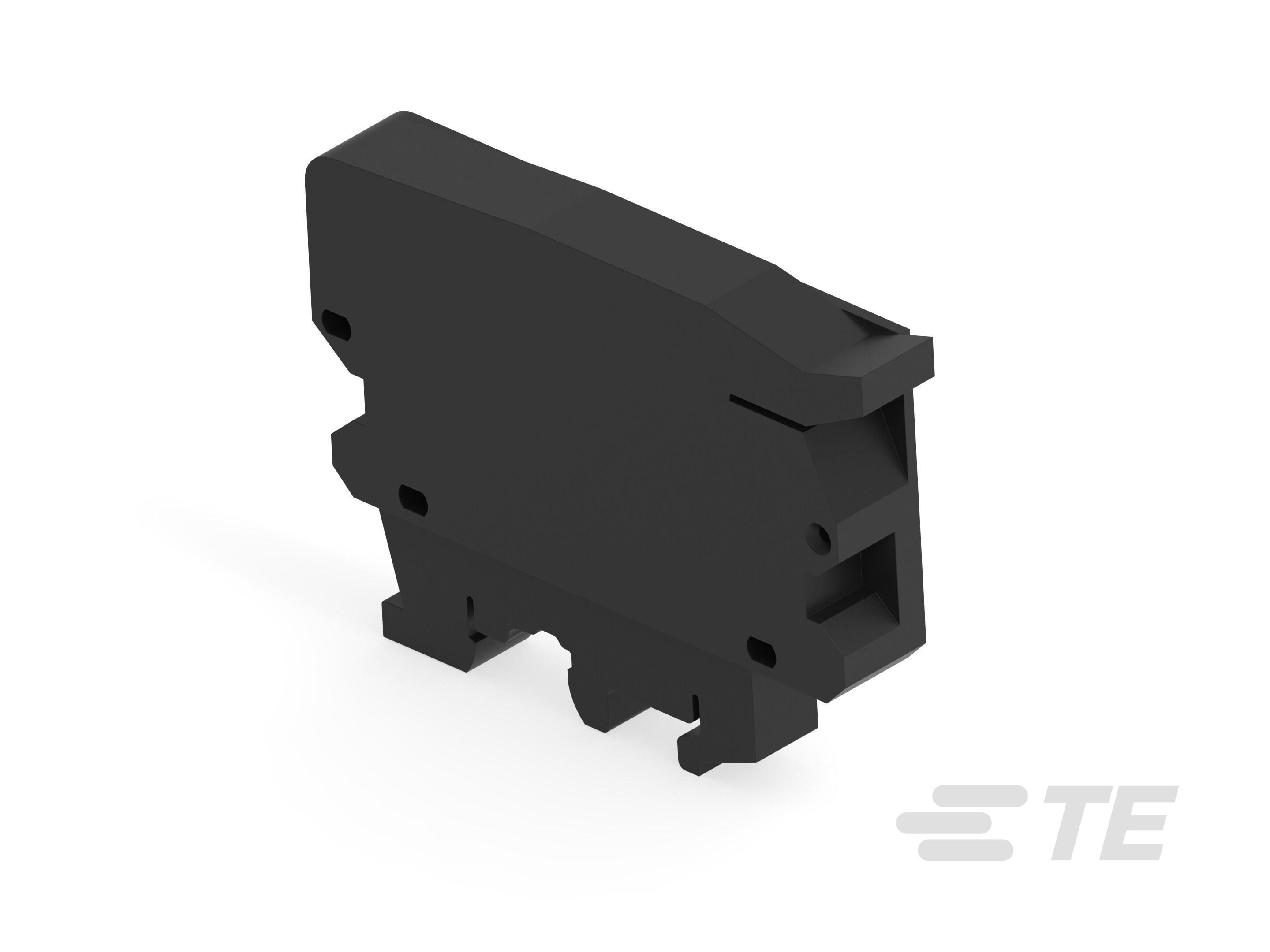

Image provided may only be a representation of final product and may include optional equipment
