Part Number # 1SNA199219R0300
SKU # 972263

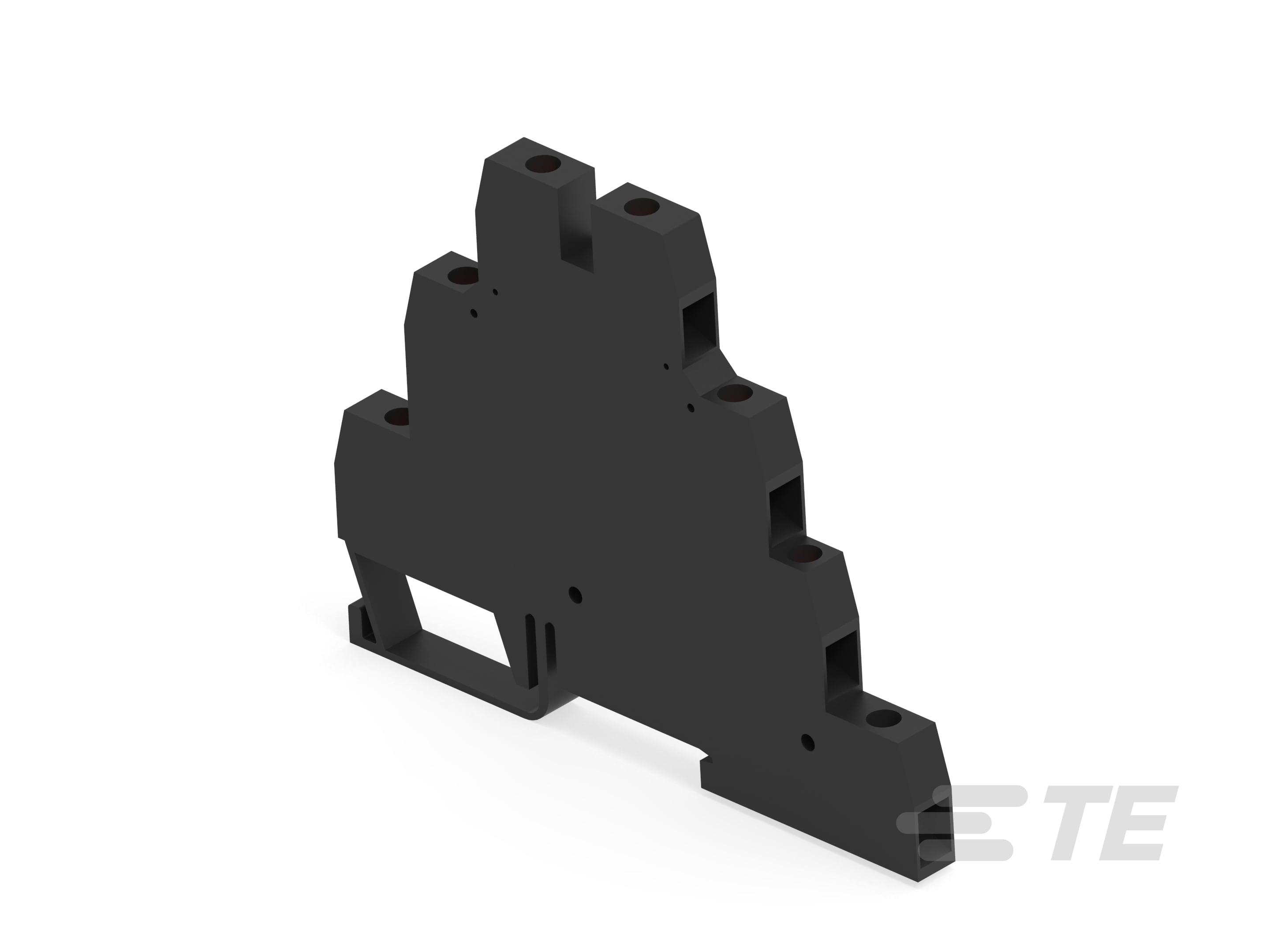

Image provided may only be a representation of
final product and may include optional equipment
1SNA199219R0300
ENTRELEC 1SNA199219R0300 Ease one potential distribution on 6 independent screw clamps
Part Number # 1SNA199219R0300
SKU # 972263
ENTRELEC 1SNA199219R0300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA199219R0300 |
| SKU #: | 972263 |
| Amperage Rating: | 32, 32 A |
| Dimensions: | 72 mm L x 90 mm H, 90 mm H x 6 mm W x 64.5 mm L |
| Number of Poles: | 6 |
| Series: | SNA |
| Spacing: | 6, 6 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.5 N-m, 0.5 to 0.8, 0.5 to 0.8 N-m |
| Type: | 3-Level, D4/6.T1 |
| Wire Size: | 12, 12 AWG |
| Connection type: | Feed-Through, Screw Clamp |
| Country of origin: | FR, PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB, TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019965376 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA199219R0300 Ease one potential distribution on 6 independent screw clamps
Brand: ENTRELEC
Part Number: 1SNA199219R0300
TE, 1SNA199219R0300, Terminal Block, D4/6.T1, Series: SNA, 500 V, 32 A, 6 Pole, 12 AWG Wire, 9.5 mm Wire Strip Length, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Black, 90 mm H x 6 mm W x 64.5 mm L Dimensions
Additional Description: TEC -1SNA199219R0300 D4/6.T1 Screw Clamp Terminal Blocks - Triple deck - Black 019921903
Catalog Description: - Ease one potential distribution on 6 independent screw clamps, - Closed terminal block: no end section needed, optimized rigidity.
1SNA199219R0300 Application
For applications ranging from standard distribution and control panels to specialized applications in key industries such as energy, explosive atmospheres, material handling, maritime and traction1SNA199219R0300 Item Features
- IP20 degree of protection
- Flexible 1 x 0.22 to 4 sq-mm, rigid 1 x 0.2 to 4 sq-mm connecting capacity main circuit
- G32 (32 x 15 mm mounting rail) according to IEC 60715, TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715, TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 mounting DIN rail
- 3 deg pollution
- 4 mm recommended screw driver
- 4 sq-mm rated cross section
- A4 gauge type
- 500 VAC IEC, 300 VAC UL, 32 A IEC, 20 A UL
- 4 sq-mm solid rated IEC wire range, 20 to 12 AWG stranded rated UL
- Rigid 1 x 20 to 12 AWG connecting capacity main circuit, rigid 20 to 12 AWG stranded 12 AWG UL/CSA wire
1SNA199219R0300 Standards
UL Listed|CSA Certified|IEC Certified|RoHS Compliant|UL 94 V-0 Flammability RatingSKU #972263Part Number #1SNA199219R0300UNSPSC39121410UPC00662019965376
