ENTRELEC 1SNA206681R0200 Insulated test sockets
Part Number # 1SNA206681R0200
SKU # 2374744

1SNA206681R0200
ENTRELEC 1SNA206681R0200 Insulated test sockets
Part Number # 1SNA206681R0200
SKU # 2374744
ENTRELEC 1SNA206681R0200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA206681R0200 |
| SKU #: | 2374744 |
| Dimensions: | 6.3 mm H x 6.3 mm W x 33.6 mm L |
| Series: | AJS9-GN |
| Suitable For Use With: | D6/8-ST-RS/M6/8-ST/ZS10-PE-R1/ZS10-R1/ZS10-ST |
| UNSPSC: | 39121410 |
| UPC: | 00088861415334 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA206681R0200 Insulated test sockets
Brand: ENTRELEC
Part Number: 1SNA206681R0200
TE, 1SNA206681R0200, Terminal Block, Low Voltage, Series: AJS9-GN, For Use With: D6/8-ST-RS/M6/8-ST/ZS10-PE-R1/ZS10-R1/ZS10-ST, Polyamide, Green, 6.3 mm H x 6.3 mm W x 33.6 mm L Dimensions
Additional Description: TEC -1SNA206681R0200 (N) AJS9-GN Test Sockets Green 1SNA206681R0200 NON-CANCELABLE, NON-RETURNABLE

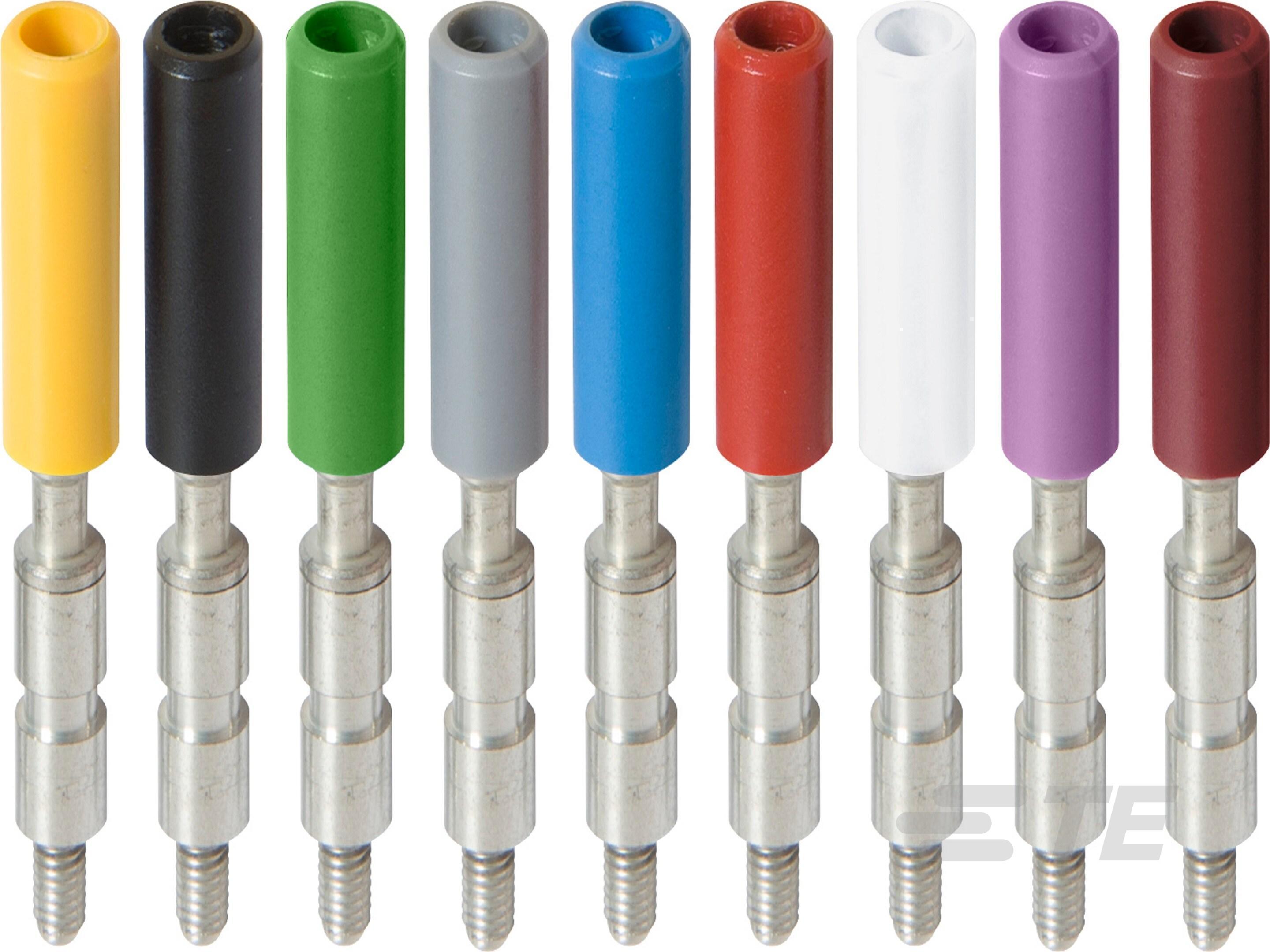

Catalog Description: - Insulated test sockets, - Many colors available for circuit identification, - Compatible with standard DIA 4 mm 0.157 in test plugs: - insulated (according to IEC 60101-031) - not insulated (with mobile protection), - Compatible with ZS10-ST…SNK series terminal blocks, M6/8.ST...SNA series terminal blocks, D6/8.ST.RS..Solution series terminal blocks
1SNA206681R0200 Application
For Test Sockets application1SNA206681R0200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA206681R0200 Standards
IEC 60101-031|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2374744Part Number #1SNA206681R0200UNSPSC39121410UPC00088861415334
Image provided may only be a representation of final product and may include optional equipment
