Part Number # 1SNA299683R0100
SKU # 1277098
Image Disclaimers Message
1SNA299683R0100

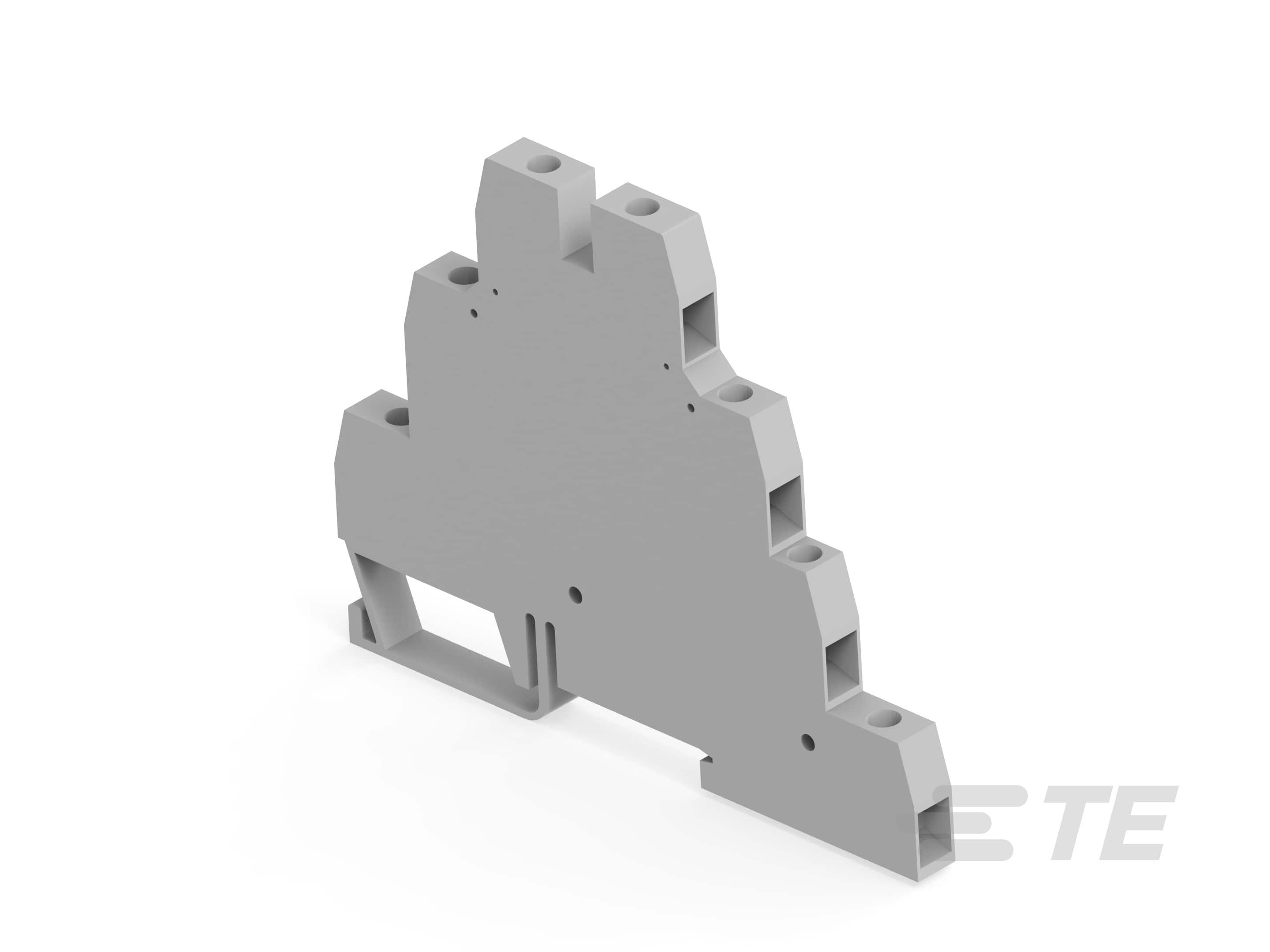

ENTRELEC 1SNA299683R0100 Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing
Part Number # 1SNA299683R0100
SKU # 1277098
ENTRELEC 1SNA299683R0100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA299683R0100 |
| SKU #: | 1277098 |
| Amperage Rating: | 32 A |
| Dimensions: | 90 mm H x 6 mm W x 64.5 mm L |
| Number of Poles: | 6 |
| Series: | SNA |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Clamp |
| Torque Rating: | 0.5 N-m |
| Type: | D4/6.T3 |
| Wire Size: | 12 AWG |
| Color: | Green/ Yellow |
| Connection type: | Screw |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019971681 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA299683R0100 Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing
Brand: ENTRELEC
Part Number: 1SNA299683R0100
TE, 1SNA299683R0100, Terminal Blocks, D4/6.T3, Series: SNA, 500 V, 32 A, 6 Pole, 12 AWG Wire, 9.5 mm Wire Strip Length, Clamp Terminal, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Connection, -55 to 110?| deg C, Polyamide, Green/ Yellow, 90 mm H x 6 mm W x 64.5 mm L Dimensions
Additional Description: TEC -1SNA299683R0100 D4/6.T3 Screw Clamp Terminal Blocks - Triple deck - Grey 029968301
Catalog Description: - Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing, - Closed terminal block: no end section needed, optimized rigidity.
1SNA299683R0100 Application
For Signal1SNA299683R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA299683R0100 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1277098Part Number #1SNA299683R0100UNSPSC39121410UPC00662019971681
