ENTRELEC 1SNK505020R0000 Save space by connecting conductors up to 4 mm (without insulated ferrule
Part Number # 1SNK505020R0000
SKU # 2213072

1SNK505020R0000
ENTRELEC 1SNK505020R0000 Save space by connecting conductors up to 4 mm (without insulated ferrule
Part Number # 1SNK505020R0000
SKU # 2213072
ENTRELEC 1SNK505020R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK505020R0000 |
| SKU #: | 2213072 |
| Dimensions: | 53 mm H x 5.2 mm W x 47.3 mm L |
| Type: | ZS4-BL |
| UNSPSC: | 39121410 |
| UPC: | 00804325488044 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNK505020R0000 Save space by connecting conductors up to 4 mm (without insulated ferrule
Brand: ENTRELEC
Part Number: 1SNK505020R0000
TE Connectivity, 1SNK505020R0000, TE Connectivityrminal Blocks, ZS4-BL, Series: SNK, 1 kV, 32 A, 2 Pole, 12 AWG Wire, 10.5 mm Wire Strip Length, Clamp TE Connectivityrminal, 5.2 mm Spacing, DIN Rail Mounting, Screw Connection, -55 to 110 | deg C, Polyamide, Blue, 53 mm H x 5.2 mm W x 47.3 mm L Dimensions
Additional Description: TEC -1SNK505020R0000 ZS4-BL Screw Clamp Terminal Block - Feed-through - Blue 1SNK505020R0000
Catalog Description: - Save space by connecting conductors up to 4 mm² (without insulated ferrule, CB certified) 12 AWG in just 5.2 mm 0.205 in spacing, - Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.
1SNK505020R0000 Application
For applications ranging from standard distribution and control panels, to specialized applications in key industries such as traction, energy, maritime, explosive atmospheres and material handling1SNK505020R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK505020R0000 Standards
UL 94V-0|IP20|CB certified|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2213072Part Number #1SNK505020R0000UNSPSC39121410UPC00804325488044

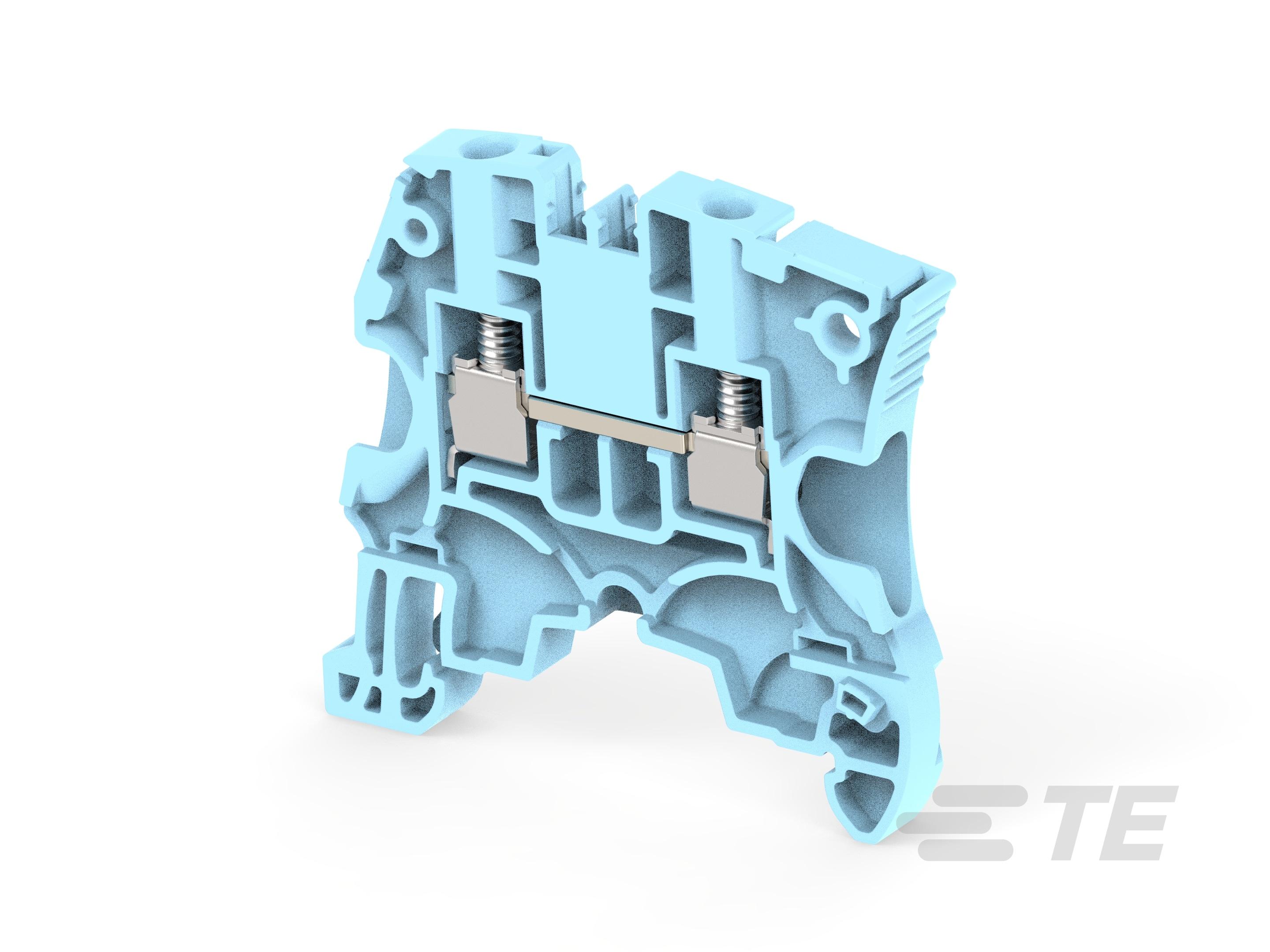

Image provided may only be a representation of final product and may include optional equipment
