Part Number # 1SNK505150R0000
SKU # 2213073
1SNK505150R0000
ENTRELEC 1SNK505150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # 1SNK505150R0000
SKU # 2213073
ENTRELEC 1SNK505150R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK505150R0000 |
| SKU #: | 2213073 |
| Amperage Rating: | 32, 32 A |
| Dimensions: | 47.4 mm L x 47.4 mm D x 59.5 mm H, 47.4 mm L x 5.2 mm W x 59.5 mm H, 59.5 mm H x 5.2 mm W x 47.4 mm D |
| Series: | SNK |
| Spacing: | 5.2, 5.2 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Torque Rating: | 0.6 |
| Type: | 1-Level 2-Position, Ground |
| Wire Size: | 12, 12 AWG |
| Connection type: | Ground/Screwless Rail, Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB, TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325488136 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK505150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Brand: ENTRELEC
Part Number: 1SNK505150R0000

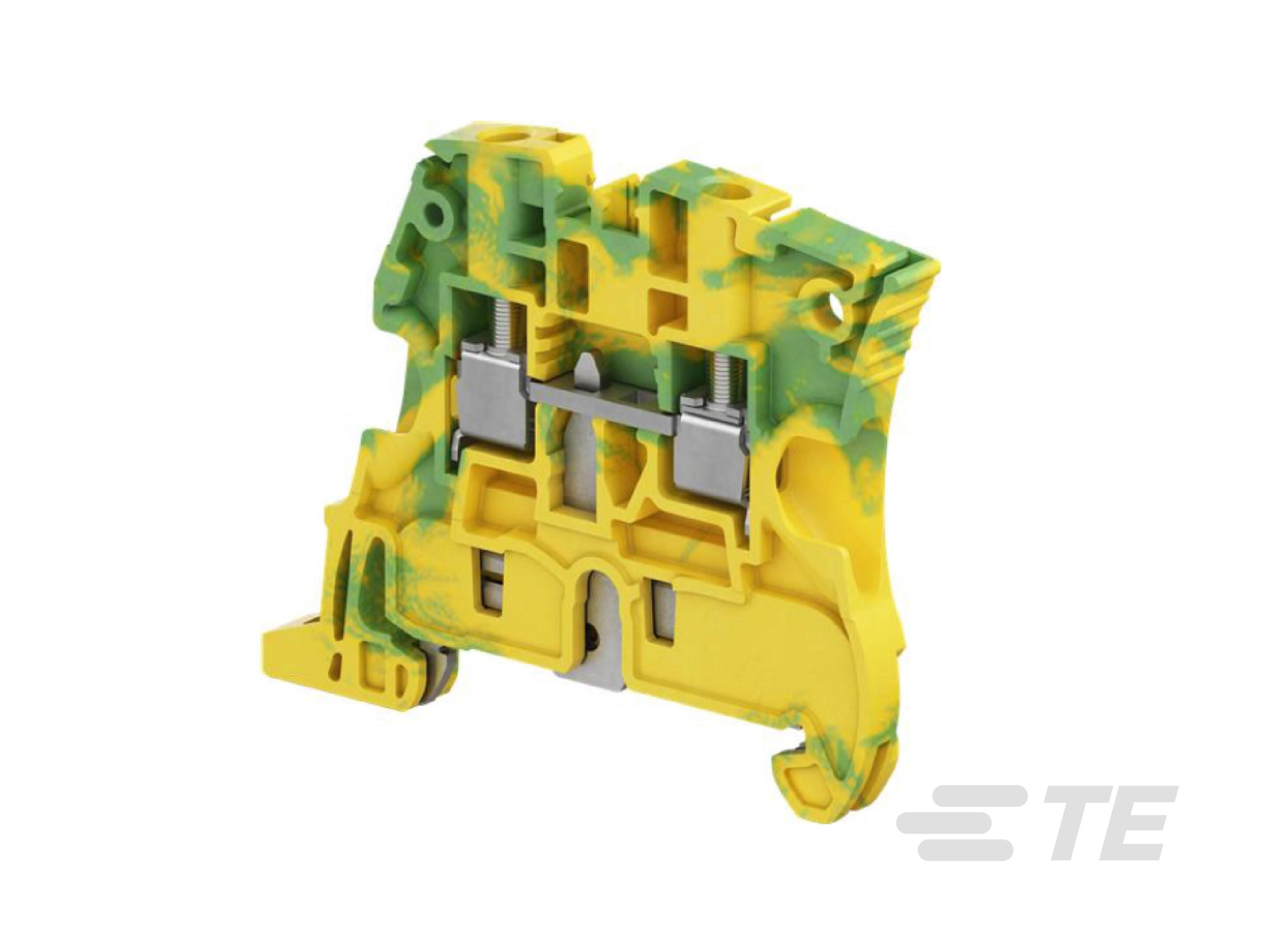

ENTRELEC Modular Terminal Block, Ground, 12 AWG Wire, 10.5 mm Wire Strip Length, Screw Clamp Terminal, 5.2 mm Spacing, DIN Rail Mounting, -55 to 110 deg C, Polyamide, Green/Yellow, 47.4 mm L x 47.4 mm D x 59.5 mm H
Additional Description: TEC -1SNK505150R0000 ZS4-PE Screw Clamp Terminal Block - Ground - Green/Yellow 1SNK505150R0000
Catalog Description: Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of IEC 60947-7-2 terminal block standard, - Secured snap on or remove from the rail.
1SNK505150R0000 Application
For applications ranging from standard distribution and control panels to specialized applications in key industries such as energy, explosive atmospheres, material handling, maritime and traction1SNK505150R0000 Item Features
- Snap-in rail connection for rapid installation and removal
- IP20 degree of protection
- Flexible 1 x 0.22 to 4 sq-mm, rigid 1 x 0.2 to 4 sq-mm, with insulated ferrule 1 x 0.22 to 2.5 sq-mm, without insulated ferrule 1 x 0.22 to 4 sq-mm connecting capacity main circuit
- TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715, TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 DIN rail mounting
- 3 deg pollution
- 3.5 mm recommended screw driver
- 4 sq-mm rated cross section
- A3/B3 gauge type
- For 1 sec 480 A short time withstand current, 8000 VAC rated impulse withstand voltage, 2200 VAC dielectric test voltage
- 4 sq-mm solid rated IEC wire range, 12 to 24 AWG, 12 AWG UL/CSA wire
1SNK505150R0000 Standards
cUL Listed|ATEX|BV|CB|CE Certified|CSA Certified|DNV|RINA Certified|RoHS Compliant|UL 94 V-0 Flammability RatingSKU #2213073Part Number #1SNK505150R0000UNSPSC39121410UPC00804325488136
Image provided may only be a representation of final product and may include optional equipment
