Part Number # 1SNK506030R0000
SKU # 2221814
Image Disclaimers Message

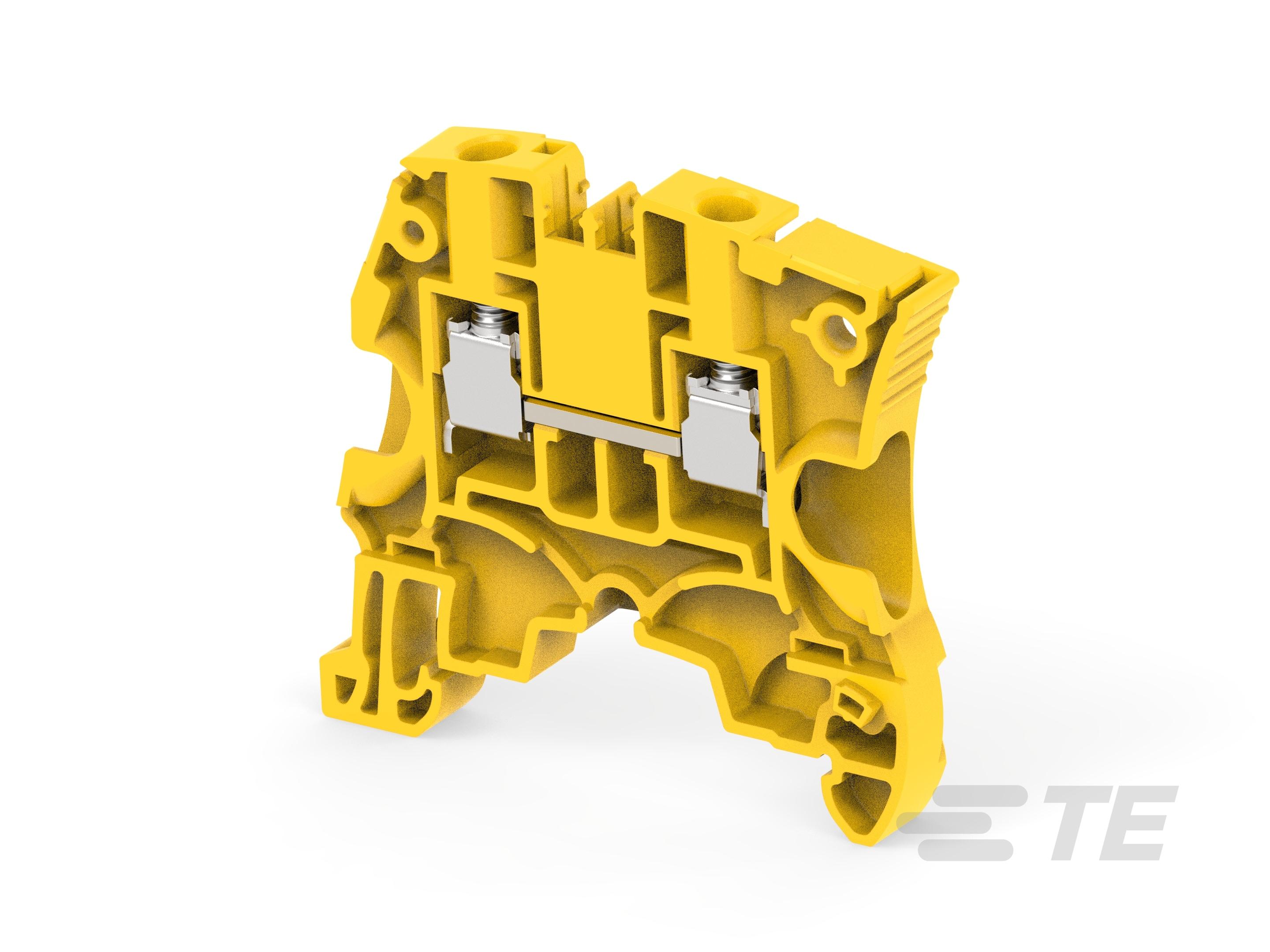

1SNK506030R0000
ENTRELEC 1SNK506030R0000 Save space by connecting conductors up to 6 mm (without insulated ferrule
Part Number # 1SNK506030R0000
SKU # 2221814
$47.00 / 50Each
Typical price:$60.80 / Each
ENTRELEC 1SNK506030R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK506030R0000 |
| SKU #: | 2221814 |
| Amperage Rating: | 41, 41 A |
| Dimensions: | 53 mm H x 6 mm W x 47.3 mm D, 53 mm H x 6 mm W x 47.3 mm L, 6 mm W x 47.3 mm D x 53 mm H |
| Number of Poles: | 2 |
| Series: | SNK |
| Spacing: | 6, 6 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Type: | Clamp, Feed-Through |
| Torque Rating: | 0.85, 0.85 N-m |
| Type: | ZS6-OR |
| Wire Size: | 10, 10 AWG |
| Color: | Orange |
| Connection type: | Screw, Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325488303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.00 / 50Each
Typical price:$60.80 / Each
Quantity:
- TE Connectivity, 1SNK506030R0000, TE Connectivityrminal Blocks, ZS6-OR, Series: SNK, 1 kV, 41 A, 2 Pole, 10 AWG Wire, 10.5 mm Wire Strip Length, Clamp TE Connectivityrminal, 6 mm Spacing, DIN Rail Mounting, Screw Connection, -55 to 110 | deg C, Polyamide, Orange, 53 mm H x 6 mm W x 47.3 mm L Dimensions
1SNK506030R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK506030R0000 Standards
UL 94V-0|IP20|CB certified|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2221814Part Number #1SNK506030R0000UNSPSC39121410UPC00804325488303
