1SNK506150R0000
ENTRELEC 1SNK506150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # 1SNK506150R0000
SKU # 2211215
ENTRELEC 1SNK506150R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK506150R0000 |
| SKU #: | 2211215 |
| Dimensions: | 47.4 mm L x 47.4 mm D x 59.5 mm H, 59.5 mm H x 6 mm W x 47.4 mm D |
| Series: | SNK |
| Spacing: | 6, 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Torque Rating: | 0.85, 0.85 N-m |
| Type: | Ground |
| Wire Size: | 10, 10 AWG |
| Color: | Green/Yellow |
| Connection type: | Ground |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325488860 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK506150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Brand: ENTRELEC
Part Number: 1SNK506150R0000

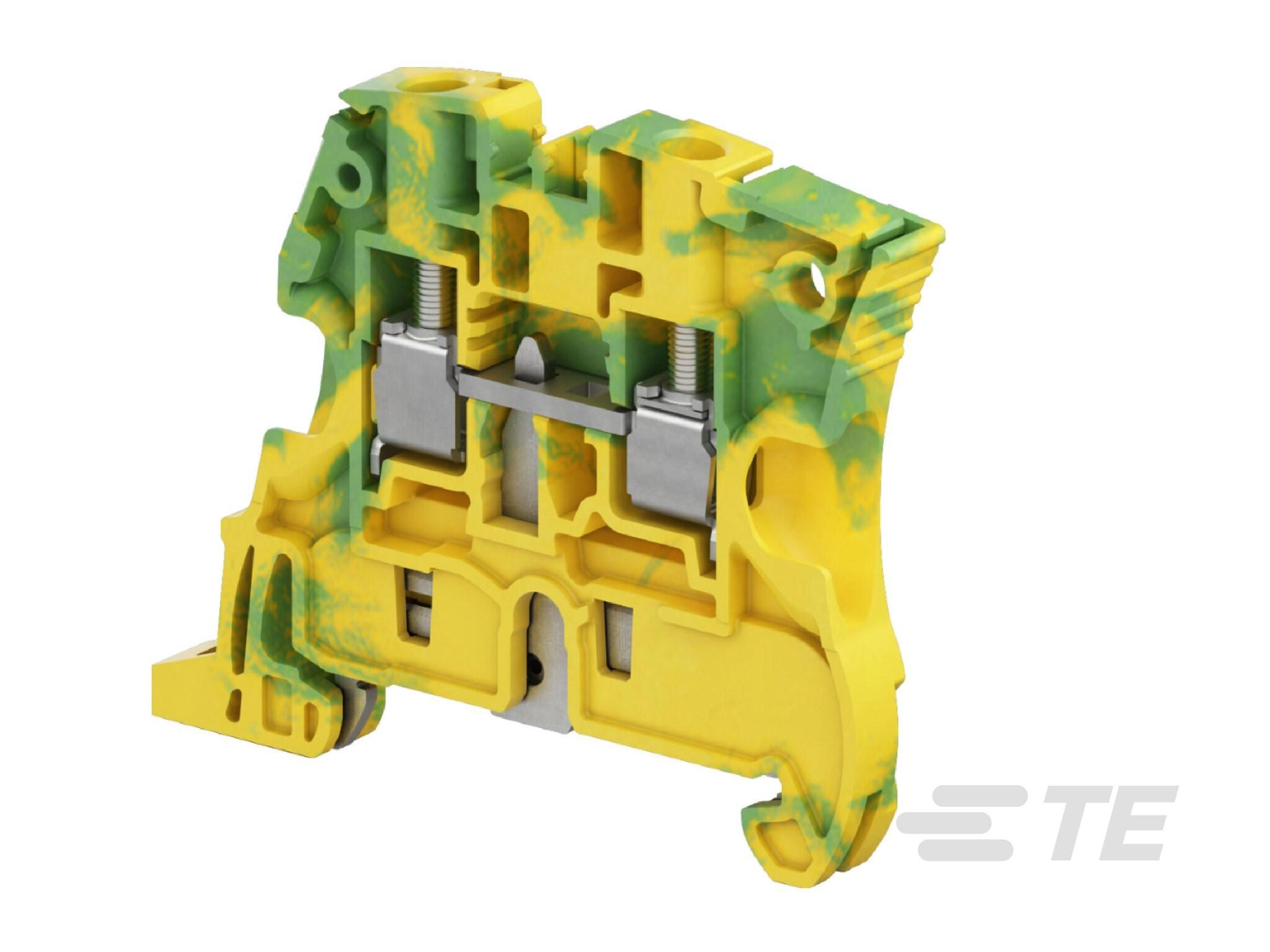

ENTRELEC Modular Terminal Block, Ground, 10 AWG Wire, 10.5 mm Wire Strip Length, Screw Clamp Terminal, 6 mm Spacing, DIN Rail Mounting, -55 to 110 deg C, Polyamide, Green/Yellow, 47.4 mm L x 47.4 mm D x 59.5 mm H
Additional Description: TEC -1SNK506150R0000 ZS6-PE Screw Clamp Terminal Block - Ground - Green/Yellow 1SNK506150R0000
Catalog Description: Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of IEC 60947-7-2 terminal block standard, - Secured snap on or remove from the rail.
1SNK506150R0000 Item Features
- For 1 sec 720 A rated short time withstand current (Icw), 8000 V rated impulse withstand voltage (Uimp)
- 2200 VAC dielectric test voltage, 3 pollution degree, IP20 degree of protection
- V-0 per UL94 flammability rated
1SNK506150R0000 Standards
China RoHS 2 Directive MIIT Order No. 32 2016|EU ELV Directive 2000/53/EC|EU RoHS Directive 2011/65/EU|UL File No. 94V-0SKU #2211215Part Number #1SNK506150R0000UNSPSC39121410UPC00804325488860
