Part Number # 1SNK506250R0000
SKU # 2271396
Image Disclaimers Message
1SNK506250R0000

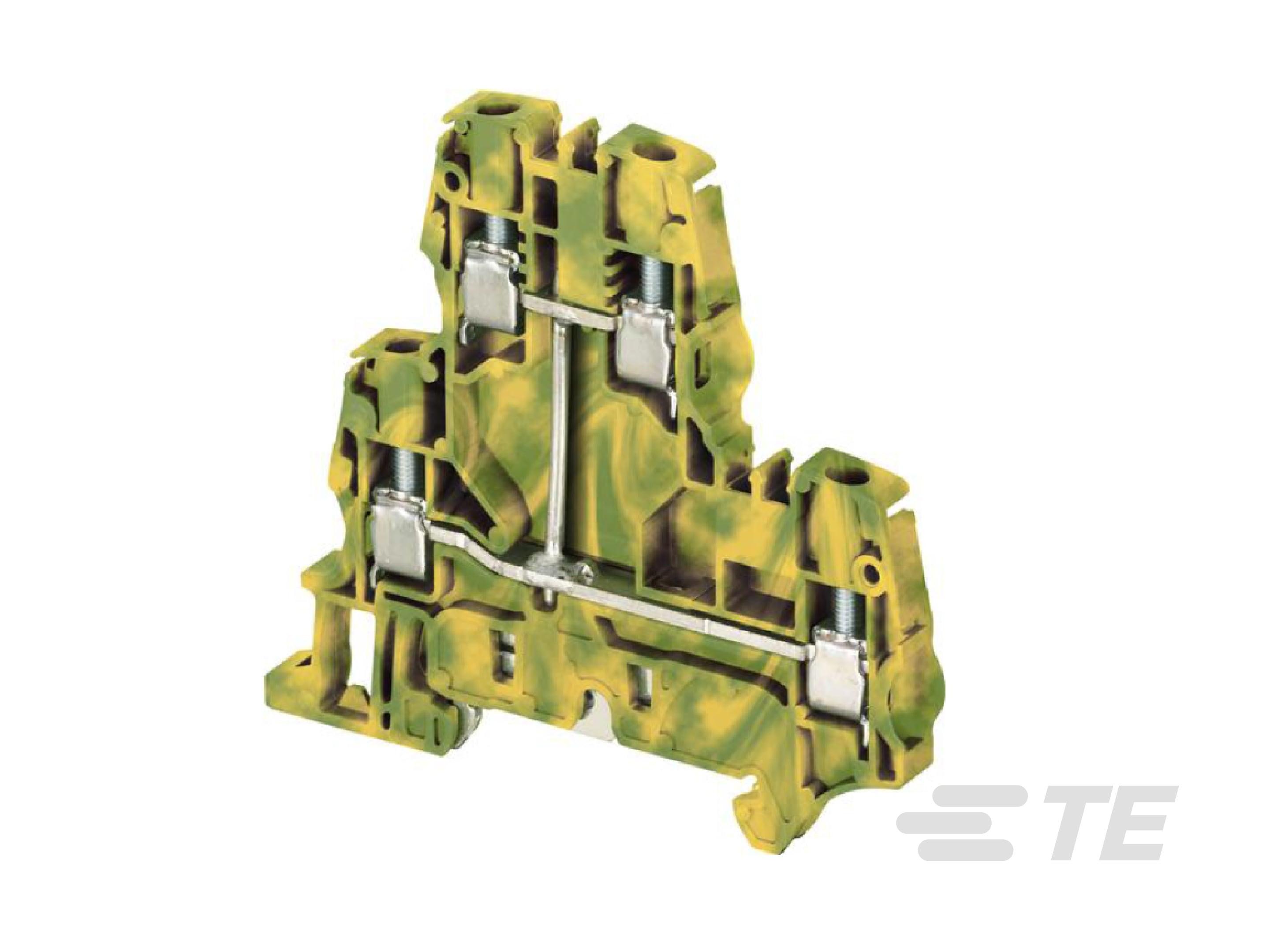

ENTRELEC 1SNK506250R0000 Save space with double deck ground terminal blocks aligned with ZS6-D2 double deck terminal blocks for convenient cabling process and circuit configuration
Part Number # 1SNK506250R0000
SKU # 2271396
ENTRELEC 1SNK506250R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK506250R0000 |
| SKU #: | 2271396 |
| Dimensions: | 77.1 mm H x 6 mm W x 65.5 mm L |
| Series: | SNK |
| Spacing: | 0.236 in |
| Temperature Rating (Degrees F): | -67 to 230 deg F |
| Terminal Type: | Screw Clamp |
| Type: | Pluggable |
| Wire Size: | 10 AWG |
| Color: | Green/Yellow |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325617116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK506250R0000 Save space with double deck ground terminal blocks aligned with ZS6-D2 double deck terminal blocks for convenient cabling process and circuit configuration
Brand: ENTRELEC
Part Number: 1SNK506250R0000
""ZS6-D1-PE Screw Clamp Terminal Block - Double Deck with 2 ground circuits - Grey, 6mm2 RatedCrossSection, 6mmSpacing, TH 35-7.5, TH 35-15 Rail""
Additional Description: TEC -1SNK506250R0000 (N) ZS6-D1-PE Screw Clamp Terminal Block - Double Deck with 1 ground circuit - Green-Yellow 1SNK506250R0000 NON-CANCELABLE, NON-RETURNABLE 1SNK506250R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Save space with double deck ground terminal blocks aligned with ZS6-D2 double deck terminal blocks for convenient cabling process and circuit configuration, - Benefit from our screwless rail connection: non operator independant, secured snap on or remove from the rail, performances above the requirements of IEC 60947-7-2 standard.
1SNK506250R0000 Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
1SNK506250R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|IP20|IEC 60947-7-2SKU #2271396Part Number #1SNK506250R0000UNSPSC39121410UPC00804325617116
