Part Number # 1SNK506321R0000
SKU # 2268933
1SNK506321R0000
ENTRELEC 1SNK506321R0000 Ease your test operations with the 2 built-in test sockets
Part Number # 1SNK506321R0000
SKU # 2268933
ENTRELEC 1SNK506321R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK506321R0000 |
| SKU #: | 2268933 |
| Amperage Rating: | 26 A |
| Dimensions: | 70.5 mm H x 6 mm W x 51.4 mm L |
| Number of Poles: | 2 |
| Series: | SNK |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Clamp |
| Type: | ZS4-S-T2-R1-BL |
| Wire Size: | 10 AWG |
| Connection type: | Screw |
| Country of origin: | PL |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325488976 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK506321R0000 Ease your test operations with the 2 built-in test sockets
Brand: ENTRELEC
Part Number: 1SNK506321R0000
TE, 1SNK506321R0000, Terminal Blocks, ZS4-S-T2-R1-BL, Series: SNK, 400 V, 26 A, 2 Pole, 10 AWG Wire, 10.5 mm Wire Strip Length, Clamp Terminal, 6 mm Spacing, DIN Rail Mounting, Screw Connection, -55 to 110?| deg C, Polyamide, Blue, 70.5 mm H x 6 mm W x 51.4 mm L Dimensions
Additional Description: TEC -1SNK506321R0000 (N) ZS4-S-T2-R1-BL Screw Clamp Terminal Block - Disconnect with blade - Blue - with 2 test socket screws DIA 2 mm 0.079 in 1SNK506321R0000 Blue - with 2 test socket screws DIA 2 mm 0.079 in Blue - with 2 test socket screws DIA 2 mm 0.079 in 1SNK506321R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Ease your test operations with the 2 built-in test sockets, - Screwdriver or hand operated disconnect blade, - Simplify the alternated distribution thanks to the two jumper channels aligned with ZS4 feed-through terminal blocks.
1SNK506321R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK506321R0000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2268933Part Number #1SNK506321R0000UNSPSC39121410UPC00804325488976

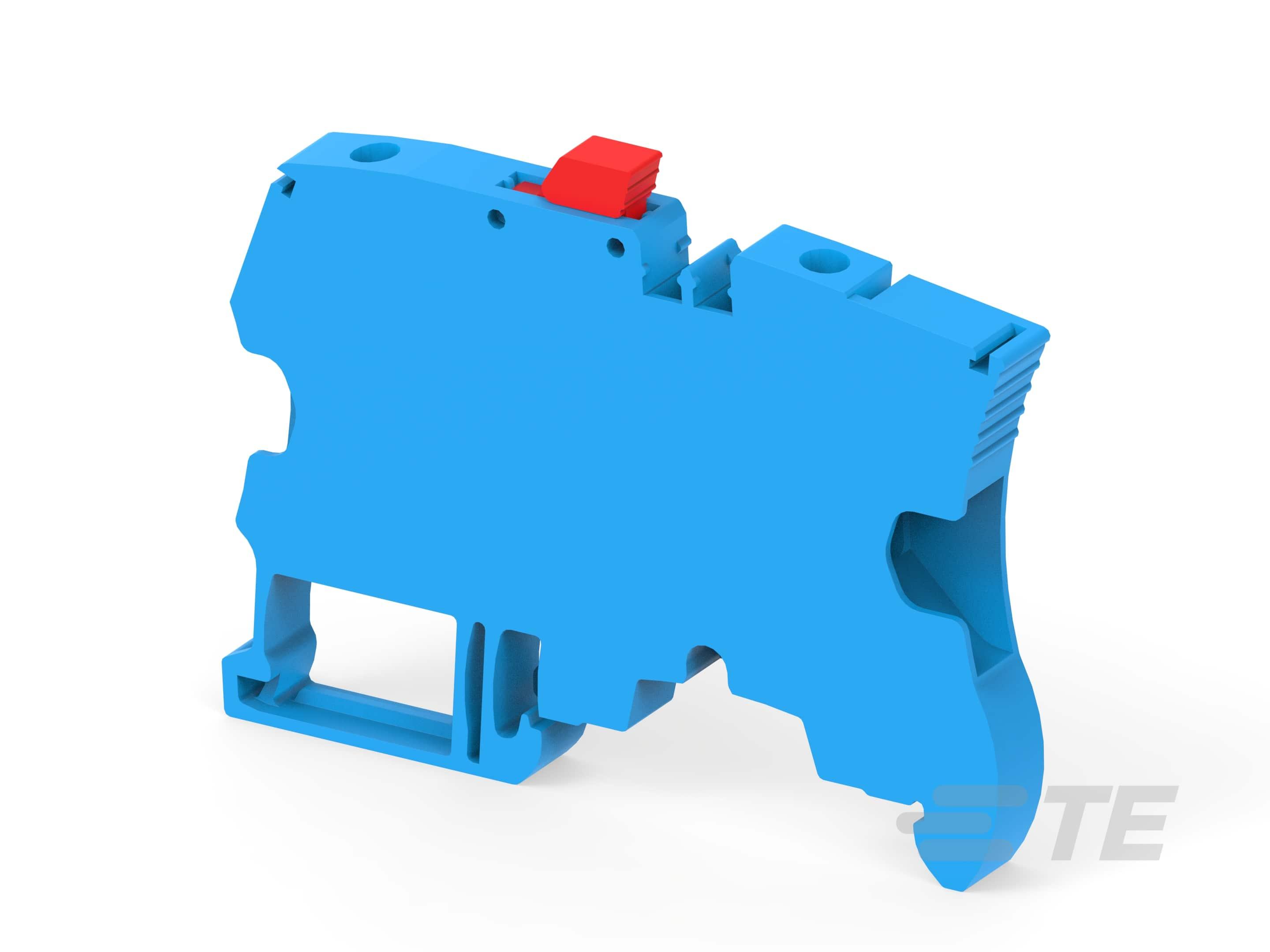

Image provided may only be a representation of final product and may include optional equipment
