Part Number # 1SNK508066R0000
SKU # 2350709
1SNK508066R0000
ENTRELEC 1SNK508066R0000 Save space by connecting conductors up to 10 mm (without insulated ferrule
Part Number # 1SNK508066R0000
SKU # 2350709
ENTRELEC 1SNK508066R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK508066R0000 |
| SKU #: | 2350709 |
| Amperage Rating: | 57 A |
| Dimensions: | 53 mm H x 8 mm W x 47.3 mm L |
| Number of Poles: | 2 |
| Series: | SNK |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Clamp |
| Type: | ZS10-BK |
| Wire Size: | 6 AWG |
| Connection type: | Screw |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325489171 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK508066R0000 Save space by connecting conductors up to 10 mm (without insulated ferrule
Brand: ENTRELEC
Part Number: 1SNK508066R0000
TE, 1SNK508066R0000, Terminal Blocks, ZS10-BK, Series: SNK, 1000 V, 57 A, 2 Pole, 6 AWG Wire, 12 mm Wire Strip Length, Clamp Terminal, 8 mm Spacing, DIN Rail Mounting, Screw Connection, -55 to 110?| deg C, Polyamide, Black, 53 mm H x 8 mm W x 47.3 mm L Dimensions
Additional Description: TEC -1SNK508066R0000 ZS10-BK Screw Clamp Terminal Block - Feed-through - Black 1SNK508066R0000
Catalog Description: - Save space by connecting conductors up to 10 mm² (without insulated ferrule, CB certified) 6 AWG in just 8 mm 0.315 in spacing, - Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.
1SNK508066R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK508066R0000 Standards
UL 94V-0|IP20|CB certified|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2350709Part Number #1SNK508066R0000UNSPSC39121410UPC00804325489171

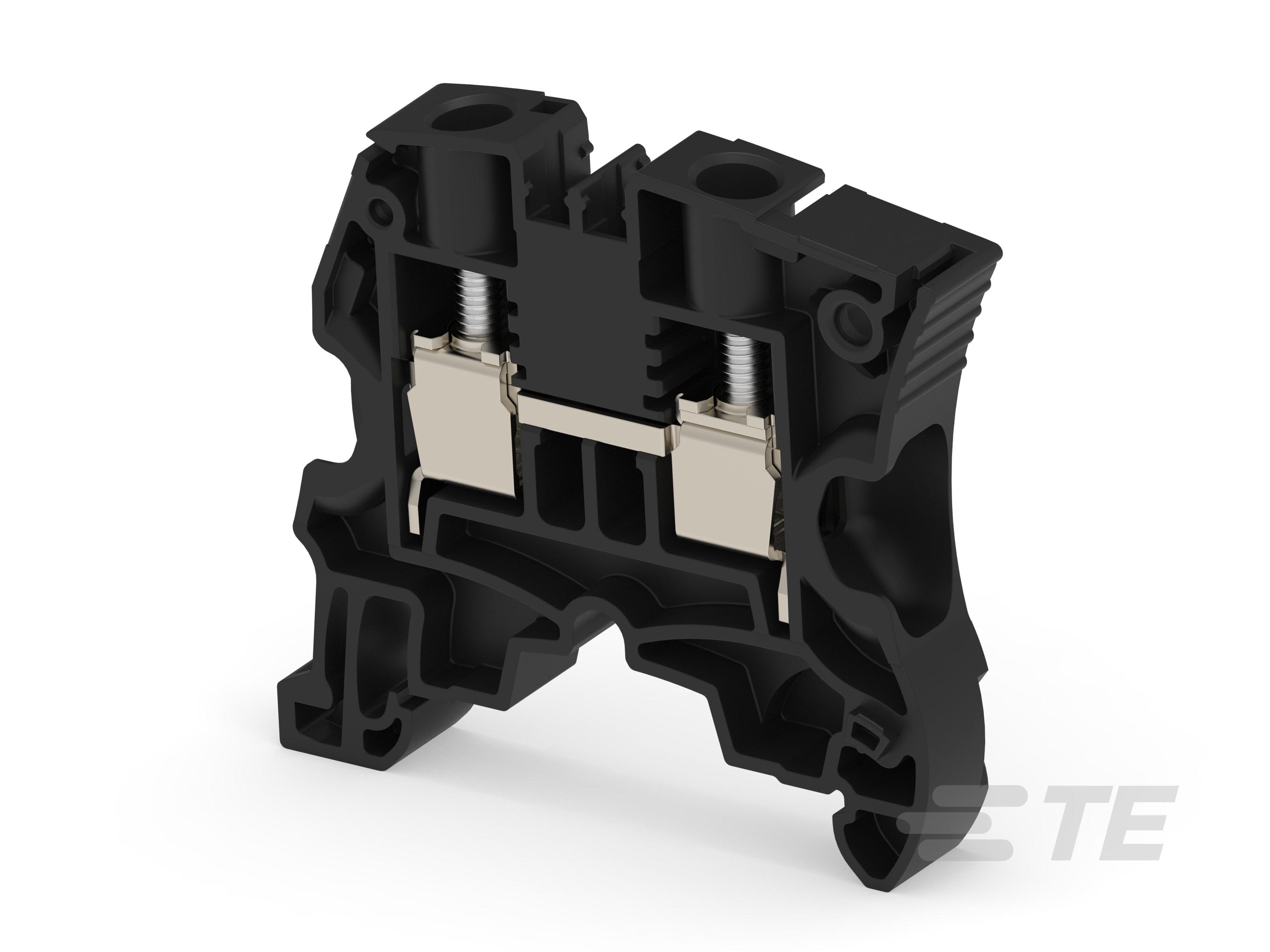

Image provided may only be a representation of final product and may include optional equipment
