Part Number # 1SNK508150R0000
SKU # 2213082
Image Disclaimers Message

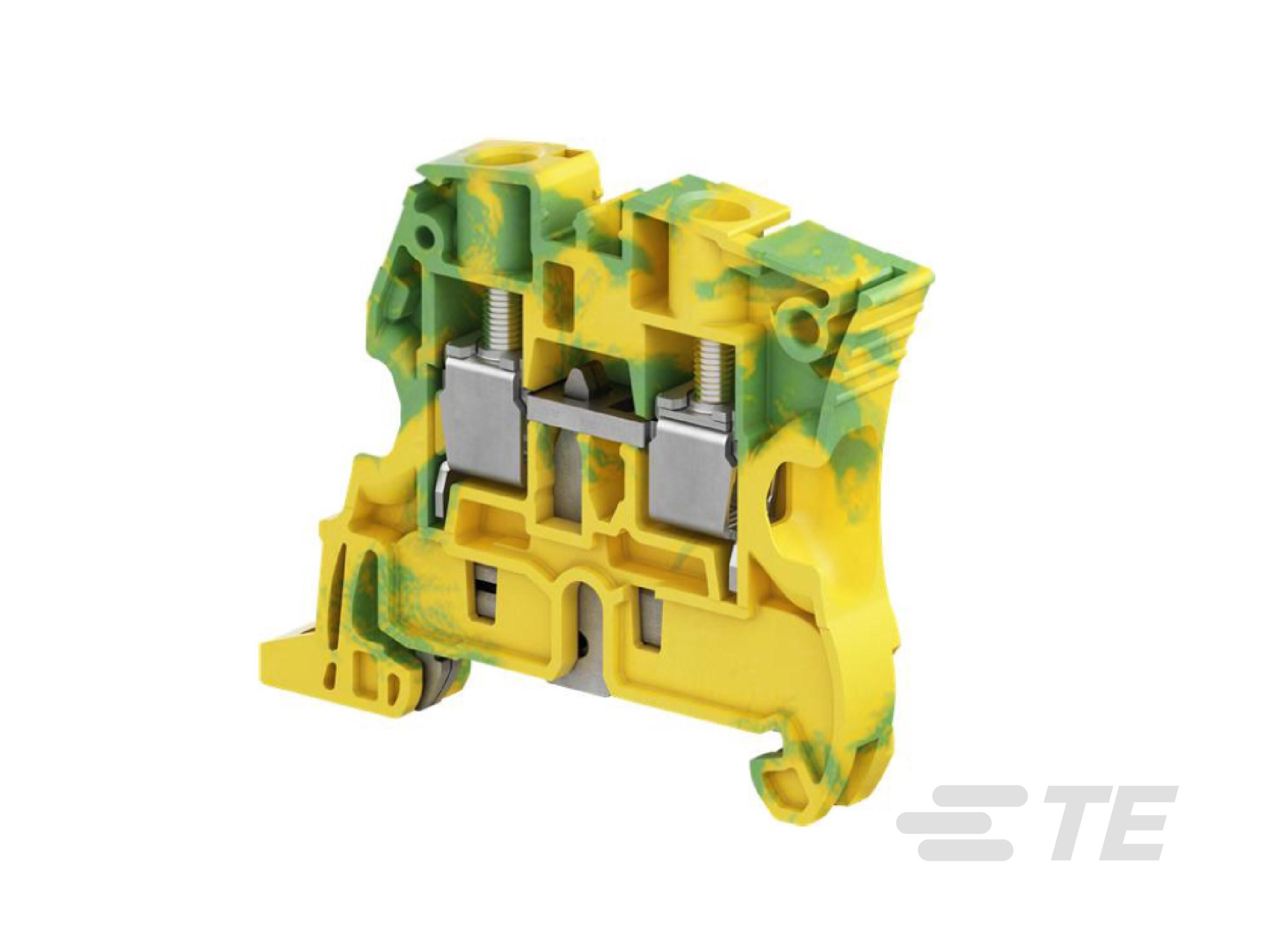

1SNK508150R0000
ENTRELEC 1SNK508150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # 1SNK508150R0000
SKU # 2213082
ENTRELEC 1SNK508150R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK508150R0000 |
| SKU #: | 2213082 |
| Amperage Rating: | 1200, 1200 A |
| Dimensions: | 59.5 mm H x 8 mm W x 47.3 mm D, 59.5 mm H x 8 mm W x 47.3 mm L, 8 x 59.5 x 47.3, 8 x 59.5 x 47.3 mm |
| Series: | SNK |
| Spacing: | 0.315 in, 8, 8 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C, -67 to 230 deg F |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Torque Rating: | 1.3 |
| Type: | Feed-Through |
| Wire Size: | 6, 6 AWG, 6 AWG Stranded |
| Color: | Green/Yellow |
| Connection type: | Ground/Screwless Rail, Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325489188 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK508150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Brand: ENTRELEC
Part Number: 1SNK508150R0000
ABB Ground Terminal Block, 8000 VAC, 1200 A, 6 AWG Stranded Wire, 8 mm Spacing, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Green/Yellow, 8 x 59.5 x 47.3 mm
Additional Description: TEC -1SNK508150R0000 ZS10-PE Screw Clamp Terminal Block - Ground - Green/Yellow 1SNK508150R0000
Catalog Description: Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of IEC 60947-7-2 terminal block standard, - Secured snap on or remove from the rail.
1SNK508150R0000 Specifications
- For 1 sec 1200 A rated short time withstand current (Icw), 8000 V rated impulse withstand voltage (Uimp)
- 2200 VAC dielectric test voltage, 3 pollution degree, IP20 degree of protection
- V-0 per UL94 flammability rated
1SNK508150R0000 Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
1SNK508150R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|IP20|IEC 60947-7-2SKU #2213082Part Number #1SNK508150R0000UNSPSC39121410UPC00804325489188
