1SNK510010R0000
ENTRELEC 1SNK510010R0000 Save space by connecting conductors up to 16 mm (without insulated ferrule
Part Number # 1SNK510010R0000
SKU # 2237574
ENTRELEC 1SNK510010R0000 Key Features
SKU # 2237574
Part Number # 1SNK510010R0000
ENTRELEC 1SNK510010R0000 Save space by connecting conductors up to 16 mm (without insulated ferrule
Brand: ENTRELEC
Part Number: 1SNK510010R0000

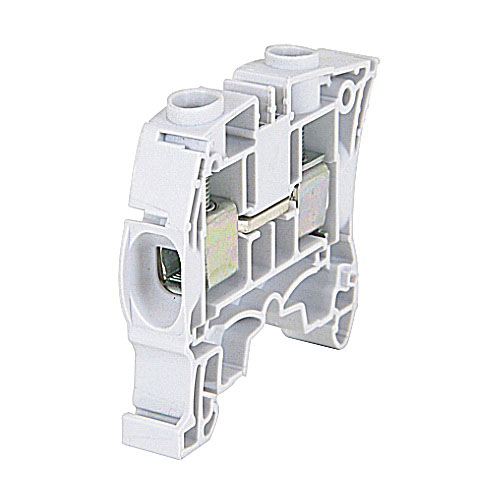

ABB entrelec Terminal Block, Series: SNK, 1000 VAC, 76 A, 4 AWG Wire, 13.5 mm Wire Strip Length, Screw Clamp Terminal, 10 mm Spacing, 1.8 N-m Torque, DIN Rail Mounting, Feed-Through Connection, Polyamide, Gray, 56.1 mm H x 10 mm W x 48.8 mm D Dimensions
Additional Description: TEC -1SNK510010R0000 ZS16 Screw Clamp Terminal Block - Feed-through - Grey 1SNK510010R0000
Catalog Description: - Save space by connecting conductors up to 16 mm² (without insulated ferrule, CB certified) 4 AWG in just 10 mm 0.394 in spacing, - Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.
1SNK510010R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK510010R0000 Standards
UL 94V-0|IP20|CB certified|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2237574Part Number #1SNK510010R0000UNSPSC39121410UPC00804325489270
