Part Number # 1SNK510150R0000
SKU # 2208419
Image Disclaimers Message
Brand: ENTRELEC
1SNK510150R0000
ENTRELEC 1SNK510150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # 1SNK510150R0000
SKU # 2208419
$96.60 / 20Each
Typical price:$124.48 / Each
ENTRELEC 1SNK510150R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK510150R0000 |
| SKU #: | 2208419 |
| Amperage Rating: | 76, 76 A |
| Dimensions: | 48.8 mm L x 10 mm W x 62.6 mm H, 60.6 mm H x 10 mm W x 48.8 mm L |
| Series: | SNK |
| Spacing: | 0.394 in, 10, 10 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C, -67 to 230 deg F |
| Terminal Type: | Screwless |
| Type: | 1-Level 2-Position, Ground |
| Wire Size: | 22 to 4, 22 to 4 AWG, 4 AWG |
| Color: | Green/Yellow |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB, TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325489300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.60 / 20Each
Typical price:$124.48 / Each
Quantity:

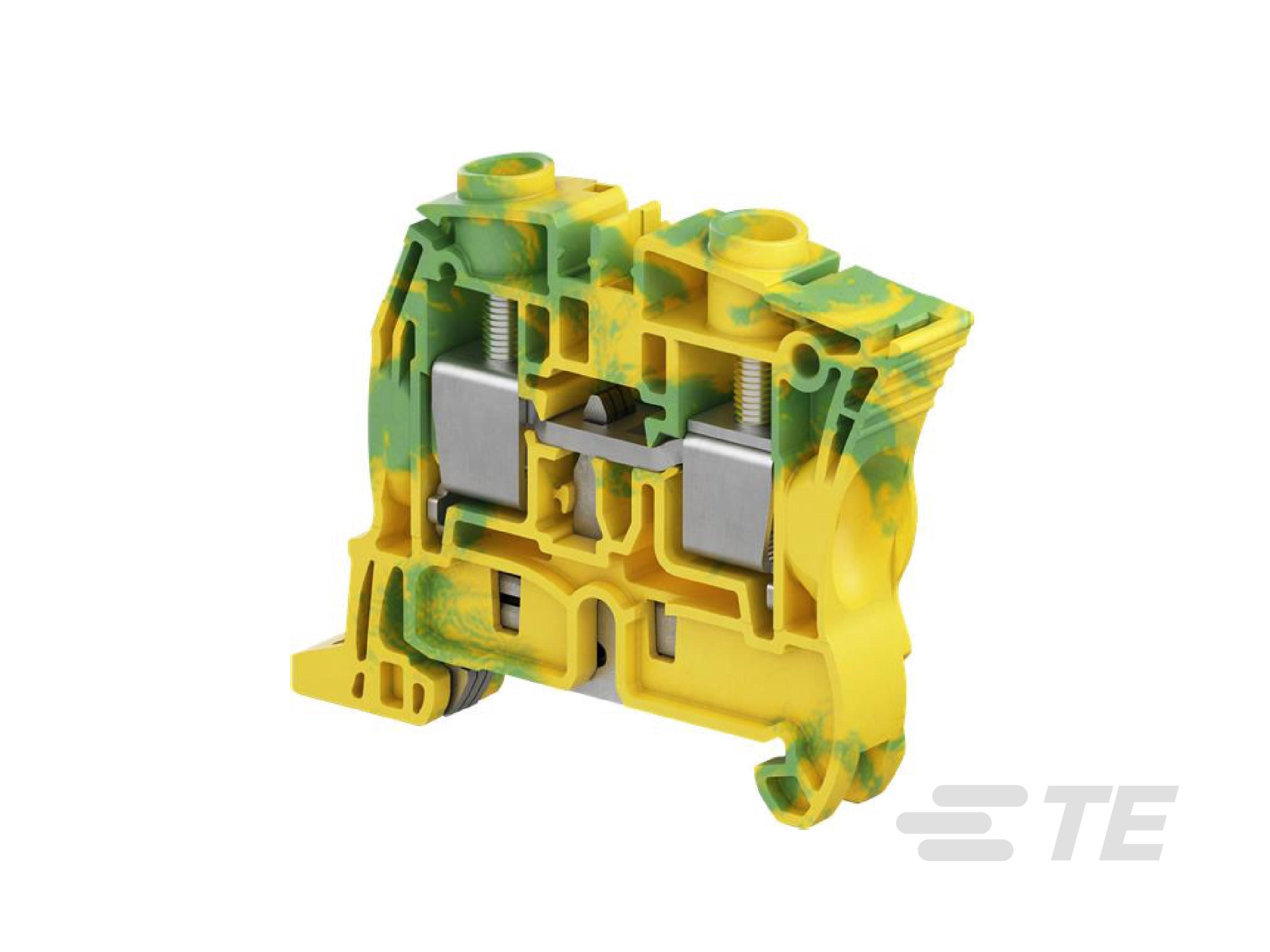

- ABB Ground Terminal Block, 1-Level 2-Position, Series: SNK, 1000 VAC, 76 A, 22 to 4 AWG Wire, 13.5 mm Wire Strip Length, 10 mm Spacing, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Green/Yellow, 48.8 mm L x 10 mm W x 62.6 mm H
1SNK510150R0000 Application
For applications ranging from standard distribution and control panels, to specialized applications in key industries such as traction, energy, maritime, explosive atmospheres and material handling1SNK510150R0000 Item Features
- Snap-in rail connection for rapid installation and removal
- IP20 deg of protection
- Flexible 1x 0.5 to 16 sq-mm, rigid 1x 0.5 to 16 sq-mm, with insulated ferrule 1x 0.5 to 10 sq-mm, without insulated ferrule 1x 0.5 to 10 sq-mm connecting capacity main circuit
- TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 mounting DIN rail
- 3 deg pollution
- 5.5 mm recommended screw driver
- 16 sq-mm rated cross section
- A6-B6 gauge type
- For 1 sec 1200 A short time withstand current, 8000 V rated impulse withstand voltage, 2200 V dielectric test voltage
- 22 to 4 AWG wire range
1SNK510150R0000 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cUL Listed|ATEX|BV|CB|CE Certified|DNV|RINA Certified|UL94 V-0 Flammability RatingSKU #2208419Part Number #1SNK510150R0000UNSPSC39121410UPC00804325489300
