Part Number # 1SNK531010R0000
SKU # 2371677
1SNK531010R0000
ENTRELEC 1SNK531010R0000 Perfectly adapted to solar applications : 1500V DC (1000V AC) IEC and 1000V UL
Part Number # 1SNK531010R0000
SKU # 2371677
ENTRELEC 1SNK531010R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK531010R0000 |
| SKU #: | 2371677 |
| Amperage Rating: | 309 A |
| Dimensions: | 119.4 mm H x 107 mm D |
| Number of Poles: | 1 |
| Series: | SNK |
| Spacing: | 1.22 in |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Feed-Through |
| Torque Rating: | 177 in-lb |
| Type: | Feed-Through |
| Wire Size: | 350 kcmil |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 03472599854130 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK531010R0000 Perfectly adapted to solar applications : 1500V DC (1000V AC) IEC and 1000V UL
Brand: ENTRELEC
Part Number: 1SNK531010R0000

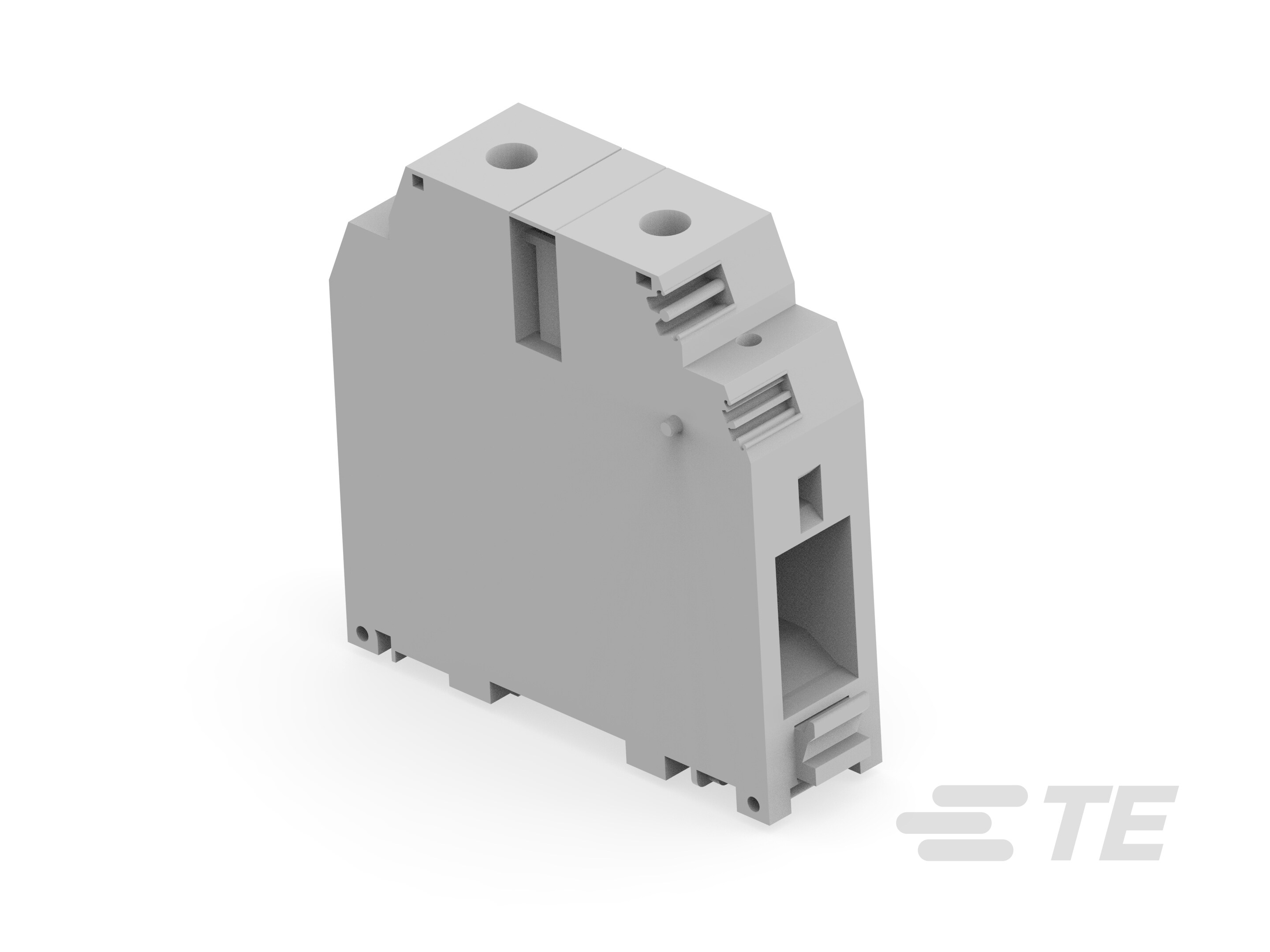

Additional Description: TEC -1SNK531010R0000 ZS150 Screw Clamp Terminal Block - Feed-through - Grey 1SNK531010R0000
Catalog Description: - Perfectly adapted to solar applications : 1500V DC (1000V AC) IEC and 1000V UL, - Closed terminal block: no end section needed, optimized rigidity, - Ease your voltage monitoring or distribution with the 2 built-in derivations, - Use of jumper bars requires the user to cut-out the partition.
1SNK531010R0000 Application
Perfectly adapted to solar applications1SNK531010R0000 Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
1SNK531010R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|UL Listed|CSA Certified|IEC StandardsSKU #2371677Part Number #1SNK531010R0000UNSPSC39121410UPC03472599854130
Image provided may only be a representation of final product and may include optional equipment
