Part Number # 1SNK705512R0000
SKU # 2386636
Image Disclaimers Message
1SNK705512R0000

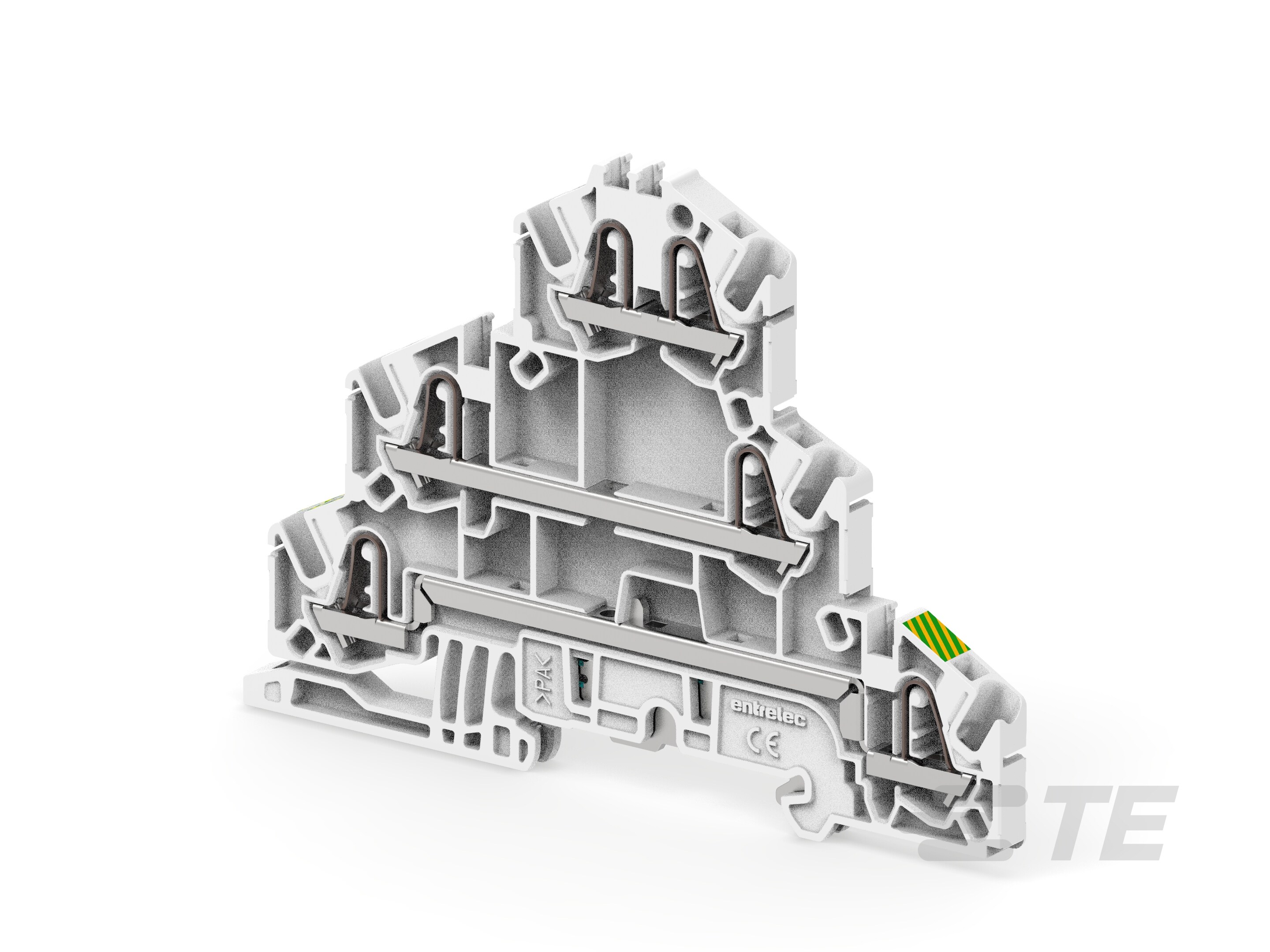

ENTRELEC 1SNK705512R0000 Combine high performance with compact dimensions: - 500V IEC 300 V UL
Part Number # 1SNK705512R0000
SKU # 2386636
ENTRELEC 1SNK705512R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK705512R0000 |
| SKU #: | 2386636 |
| Amperage Rating: | 22 A |
| Dimensions: | 101.9 mm H x 5.2 mm W x 73.34 mm L |
| Series: | SNK |
| Spacing: | 0.205 in |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Feed-Through |
| Type: | Feed-Through |
| Wire Size: | 12 AWG |
| Color: | Grey |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861463018 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK705512R0000 Combine high performance with compact dimensions: - 500V IEC 300 V UL
Brand: ENTRELEC
Part Number: 1SNK705512R0000
Additional Description: TEC -1SNK705512R0000 ZK2.5-L-L-PE PI-Spring clamp Terminal Block - Triple Deck - Feed-through + Ground - Grey, Green-Yellow 1SNK705512R0000 Feed-through + Ground - Grey, Green-Yellow Feed-through + Ground - Grey, Green-Yellow 1SNK705512R0000
Catalog Description: Combine high performance with compact dimensions: - 500V IEC 300 V UL, - 2 feed through circuits and 1 ground circuit in just 5.2 mm 0.205 in spacing, - 1 jumper channel and a large input and output marker zone on each deck, - designed for easy wiring.
1SNK705512R0000 Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
1SNK705512R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|UL Listed|CSA Certified|IP20|IEC StandardsSKU #2386636Part Number #1SNK705512R0000UNSPSC39121410UPC00088861463018
