Part Number # 1SNK712150R0000
SKU # 2350297
Image Disclaimers Message
1SNK712150R0000

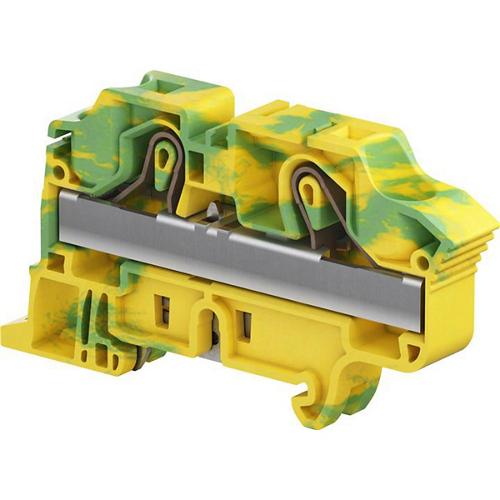

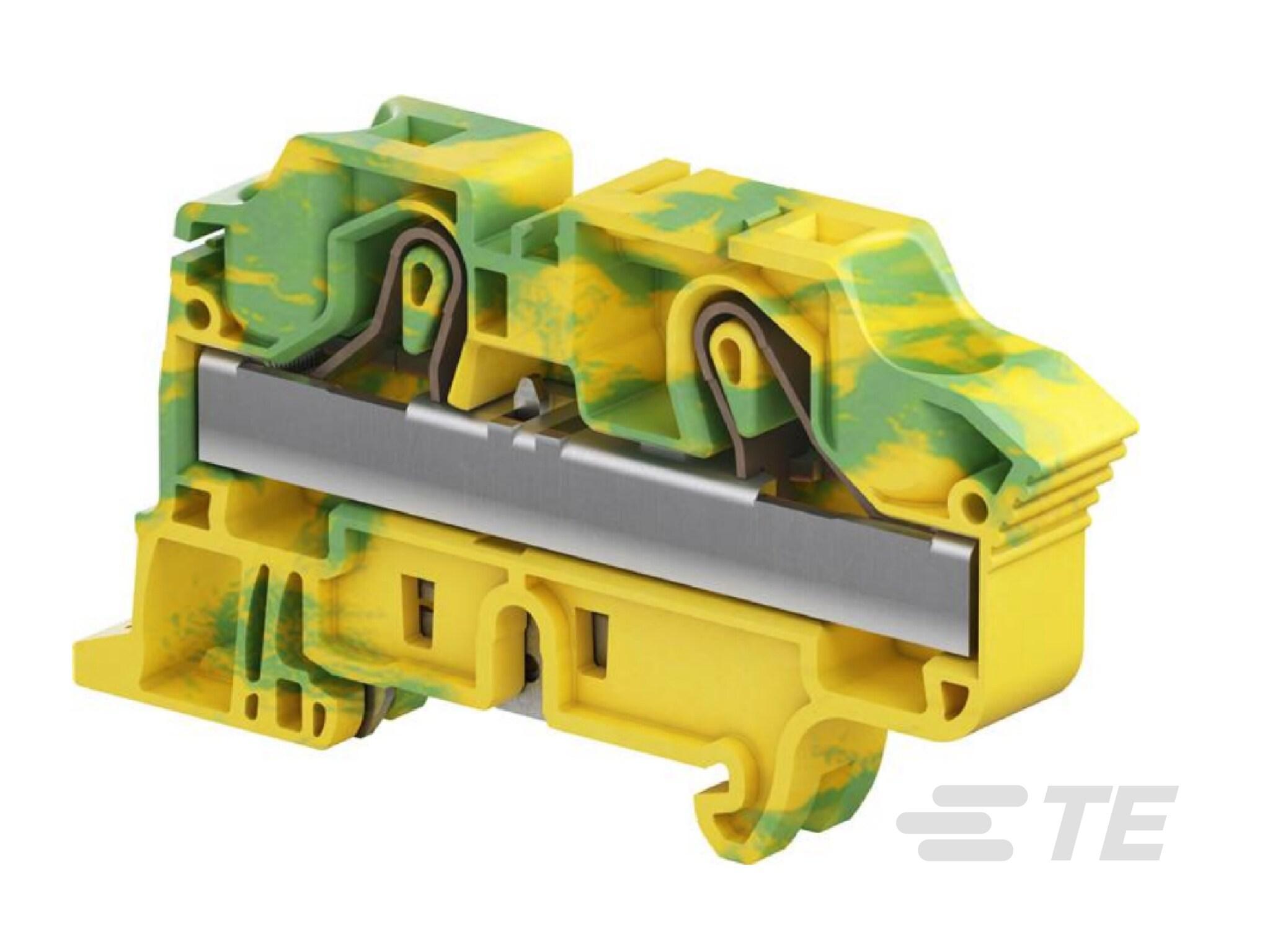

ENTRELEC 1SNK712150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # 1SNK712150R0000
SKU # 2350297
ENTRELEC 1SNK712150R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK712150R0000 |
| SKU #: | 2350297 |
| Amperage Rating: | 1920 A |
| Dimensions: | 47.6 mm L x 12 mm W x 87.7 mm H, 89 mm H x 12 mm W x 47.6 mm L |
| Series: | SNK, ZK16-PE |
| Spacing: | 12 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Spring Clamp |
| Type: | Ground |
| Wire Size: | 20 to 4 AWG |
| Color: | Green/Yellow |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00888614180710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK712150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Brand: ENTRELEC
Part Number: 1SNK712150R0000
ABB Terminal Block, Series: SNK, 693 V, 20 to 4 AWG Wire, 15 mm Wire Strip Length, Spring Clamp Terminal, 12 mm Spacing, DIN Rail Mounting, PI Spring Connection, -55 to 110 deg C, Polyamide, Green/Yellow, 47.6 mm L x 12 mm W x 87.7 mm H Dimensions
Additional Description: TEC -1SNK712150R0000 ZK16-PE PI-Spring clamp Terminal Block - Ground - Green Yellow 1SNK712150R0000
Catalog Description: Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of the IEC 60947-7-2 terminal block standard, - Secured snap on or off the rail, - Profile aligned with ZK16.
1SNK712150R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK712150R0000 Standards
IP20 Standards|IEC 60947-7-2|UL 94V-0|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2350297Part Number #1SNK712150R0000UNSPSC39121410UPC00888614180710
