Part Number # 1SNK900205R0000
SKU # 2220472
1SNK900205R0000

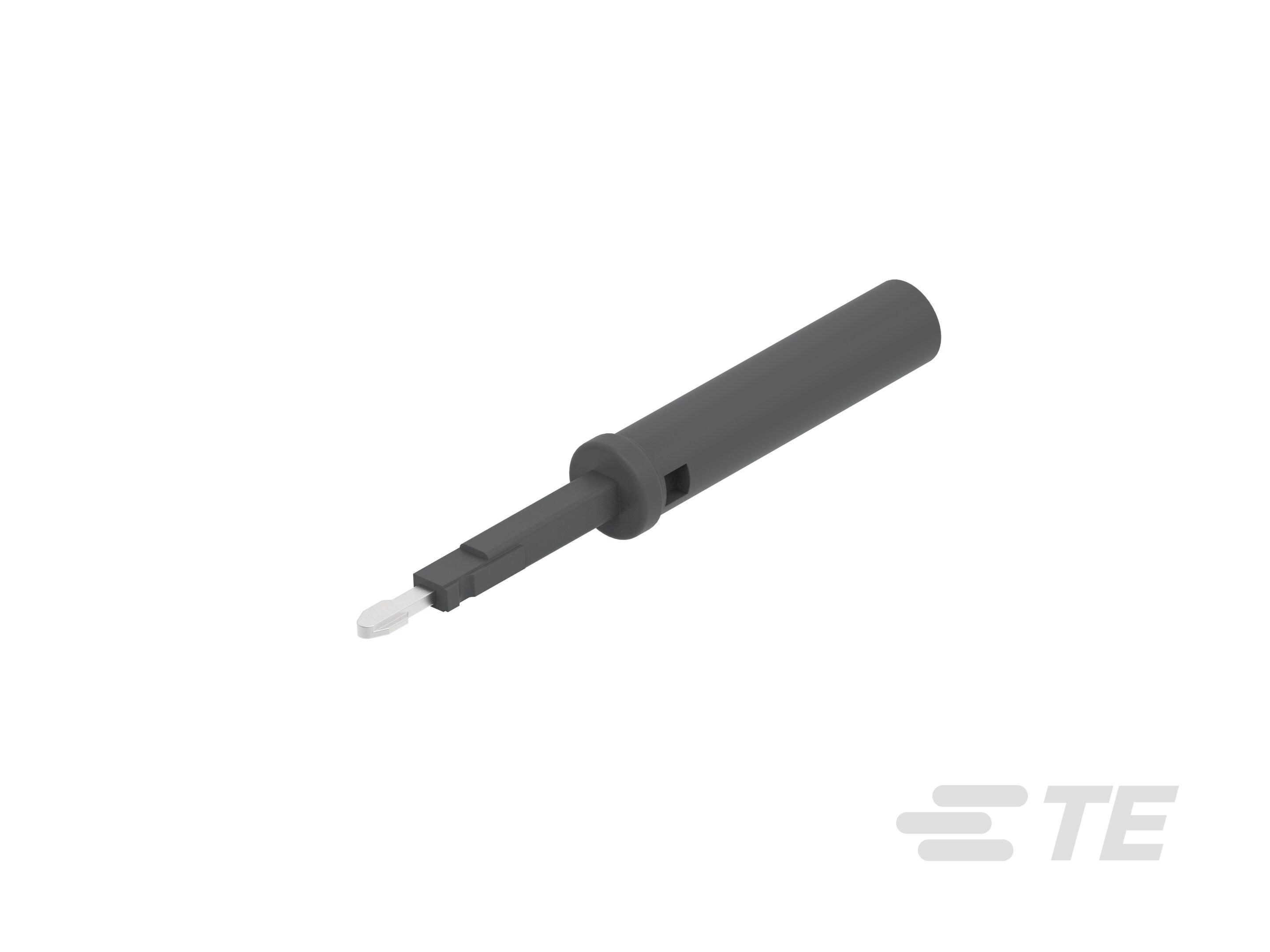

ENTRELEC 1SNK900205R0000 Isolated test adapter that enables individual voltage control
Part Number # 1SNK900205R0000
SKU # 2220472
ENTRELEC 1SNK900205R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK900205R0000 |
| SKU #: | 2220472 |
| Dimensions: | 7.6 mm H x 7.6 mm W x 56.63 mm L |
| Series: | TP4 |
| UNSPSC: | 39121410 |
| UPC: | 00804325489515 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK900205R0000 Isolated test adapter that enables individual voltage control
Brand: ENTRELEC
Part Number: 1SNK900205R0000
TE, 1SNK900205R0000, Terminal Block, Low Voltage, Series: TP4, Polyamide, Dark Grey, 7.6 mm H x 7.6 mm W x 56.63 mm L Dimensions
Additional Description: TEC -1SNK900205R0000 (N) TP4 Test Adapter for test plugs DIA 4 mm .16 in - Dark Grey 1SNK900205R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Isolated test adapter that enables individual voltage control, - Direct plug-in solution into the jumpers channels, - Compatible with standard insulated or non isolated test plugs DIA 4 mm 0.157 in, - Withstand more than 10000 operations according to ABB test standards.
1SNK900205R0000 Application
For Test Adapter application1SNK900205R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK900205R0000 Standards
CSA Certified|UL Listed|IEC Certified|IP20 Standard|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2220472Part Number #1SNK900205R0000UNSPSC39121410UPC00804325489515
Image provided may only be a representation of final product and may include optional equipment
