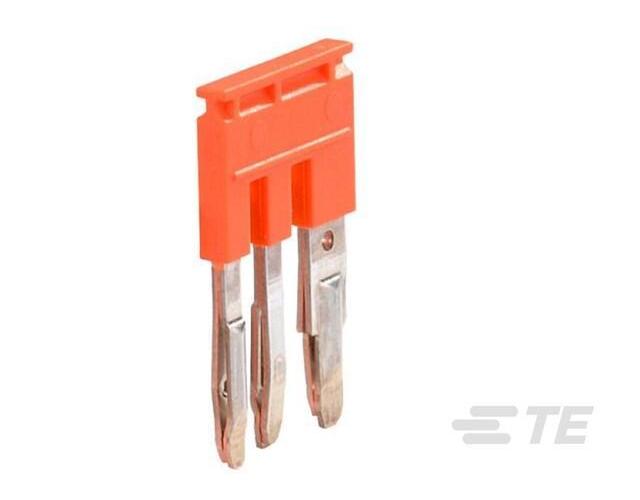

ENTRELEC 1SNK900603R0000 Allows power distribution between terminal blocks with different spacing
Part Number # 1SNK900603R0000
SKU # 2271689
ENTRELEC 1SNK900603R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK900603R0000 |
| SKU #: | 2271689 |
| Dimensions: | 27.8 mm H x 8 mm W x 42.5 mm L |
| Suitable For Use With: | ZDK2.5-22/ZDK4-22/ZK2.5/ZK2.5-3P/ZK2.5-4P/ZK2.5-PE/ZK2.5-PE-3P/ZK2.5-PE-4P/ZK2.5-S/ZK2.5-SF |
| Country of origin: | FR |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325489577 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK900603R0000 Allows power distribution between terminal blocks with different spacing
Brand: ENTRELEC
Part Number: 1SNK900603R0000
Orange cross spacing jumpers with 8 - 5.2 spacing for use on ZS4 feed through terminal blocks with screw clamp connection
Additional Description: TEC -1SNK900603R0000 (N) JB85-3 Cross Spacing Jumper - Orange 1SNK900603R0000 NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Allows power distribution between terminal blocks with different spacing, - JB5-3, JB6-3 and JB8-3 can be used as cross spacing jumpers (see selection table on Mounting instructions below).
1SNK900603R0000 Item Features
- 32 IEC Current Rating
- 1000 IEC Voltage Rating
- 2200 Maximum Dielectric Withstanding Voltage
- 480 Short-Time Withstanding Current Rating at 1s
- 30 CSA Current Rating
- 600 CSA Voltage Rating
- 8000 IEC Impulse Withstanding Voltage Rating
- 600 UL and CSA Operating Voltage Rating - Main Circuit
- Primary Product Color is Orange
- 32 Maximum Contact Current Rating
- -55 to 110 deg C Operating Temperature
- -5 to 40 deg C Installation Temperature
1SNK900603R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL Listed|CSA Certified|IP20SKU #2271689Part Number #1SNK900603R0000UNSPSC39121410UPC00804325489577
