Part Number # 1SNK906303R0000
SKU # 2220900
Image Disclaimers Message
1SNK906303R0000
ENTRELEC 1SNK906303R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Part Number # 1SNK906303R0000
SKU # 2220900
ENTRELEC 1SNK906303R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK906303R0000 |
| SKU #: | 2220900 |
| Dimensions: | 15 mm H x 6 mm W x 26.8 mm D, 15 mm H x 6 mm W x 26.8 mm L |
| Number of Poles: | 3 |
| Suitable For Use With: | SNK Terminal Block, ZDK4-22/ZDS4-22-R1/ZK2.5-SF/ZK2.5-SF-R/ZK2.5-S-R1/ZK4/ZK4-3P/ZK4-4P/ZK4-PE/ZK4-PE-3P |
| Country of origin: | FR |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325489942 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK906303R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Brand: ENTRELEC
Part Number: 1SNK906303R0000

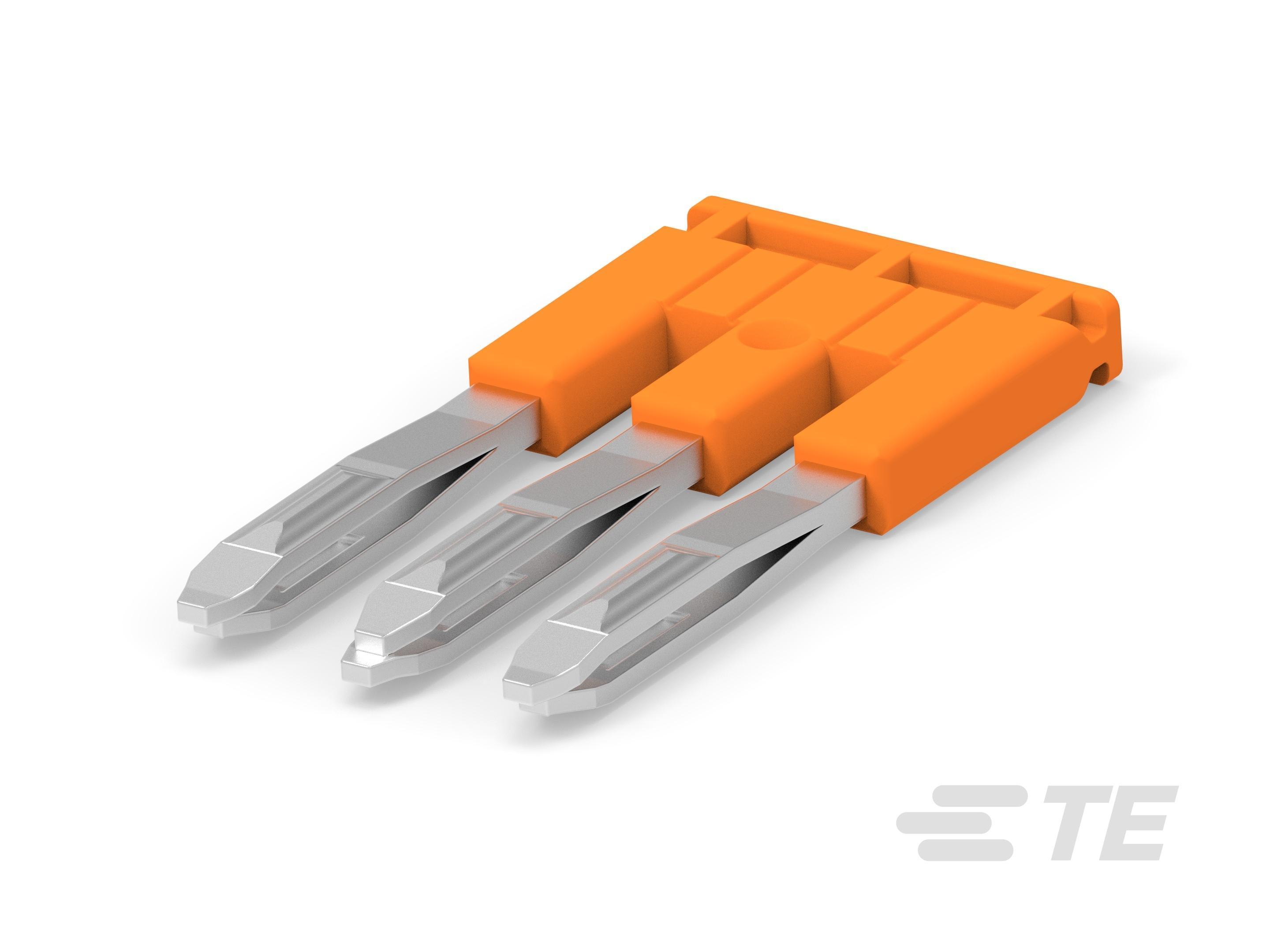

ABB entrelec Jumper Bar, 3 Pole, For Use With: SNK Terminal Block, Polyamide, 15 mm H x 6 mm W x 26.8 mm D
Additional Description: TEC -1SNK906303R0000 JB6-3 Jumper Bar - Orange 1SNK906303R0000
Catalog Description: Facilitate & secure your jumper bar assembly process: - Screwless mounting, - Pre-cut poles for alternated jumpering between terminal blocks, - Insulated, - Positive locking, - Perfectly adapted to low level electrical contact (20mA, 50mV).
1SNK906303R0000 Item Features
- 41 IEC Current Rating
- 1000 IEC Voltage Rating
- 2200 Maximum Dielectric Withstanding Voltage
- 720 Short-Time Withstanding Current Rating at 1s
- 30 CSA Current Rating
- 600 CSA Voltage Rating
- 8000 IEC Impulse Withstanding Voltage Rating
- 600 UL and CSA Operating Voltage Rating - Main Circuit
- Primary Product Color is Orange
- 41 Maximum Contact Current Rating
- -55 to 110 deg C Operating Temperature
- -5 to 40 deg C Installation Temperature
1SNK906303R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL Listed|CSA Certified|IP20SKU #2220900Part Number #1SNK906303R0000UNSPSC39121410UPC00804325489942
