Part Number # 1SNK908302R0000
SKU # 2213098
Image Disclaimers Message
1SNK908302R0000
ENTRELEC 1SNK908302R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Part Number # 1SNK908302R0000
SKU # 2213098
$62.00 / 50Each
Typical price:$78.70 / Each
ENTRELEC 1SNK908302R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK908302R0000 |
| SKU #: | 2213098 |
| Dimensions: | 13.6 mm H x 8 mm W x 27.8 mm L |
| Suitable For Use With: | ZK6/ZK6-3P/ZK6-PE/ZK6-PE-3P/ZS10/ZS10-PE/ZS10-SF/ZS10-SF-R/ZS10-S-R2/ZS4-D2-SF1/ZS4-D2-SF1-R |
| Country of origin: | FR |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325489997 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$62.00 / 50Each
Typical price:$78.70 / Each
Quantity:
ENTRELEC 1SNK908302R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Brand: ENTRELEC
Part Number: 1SNK908302R0000

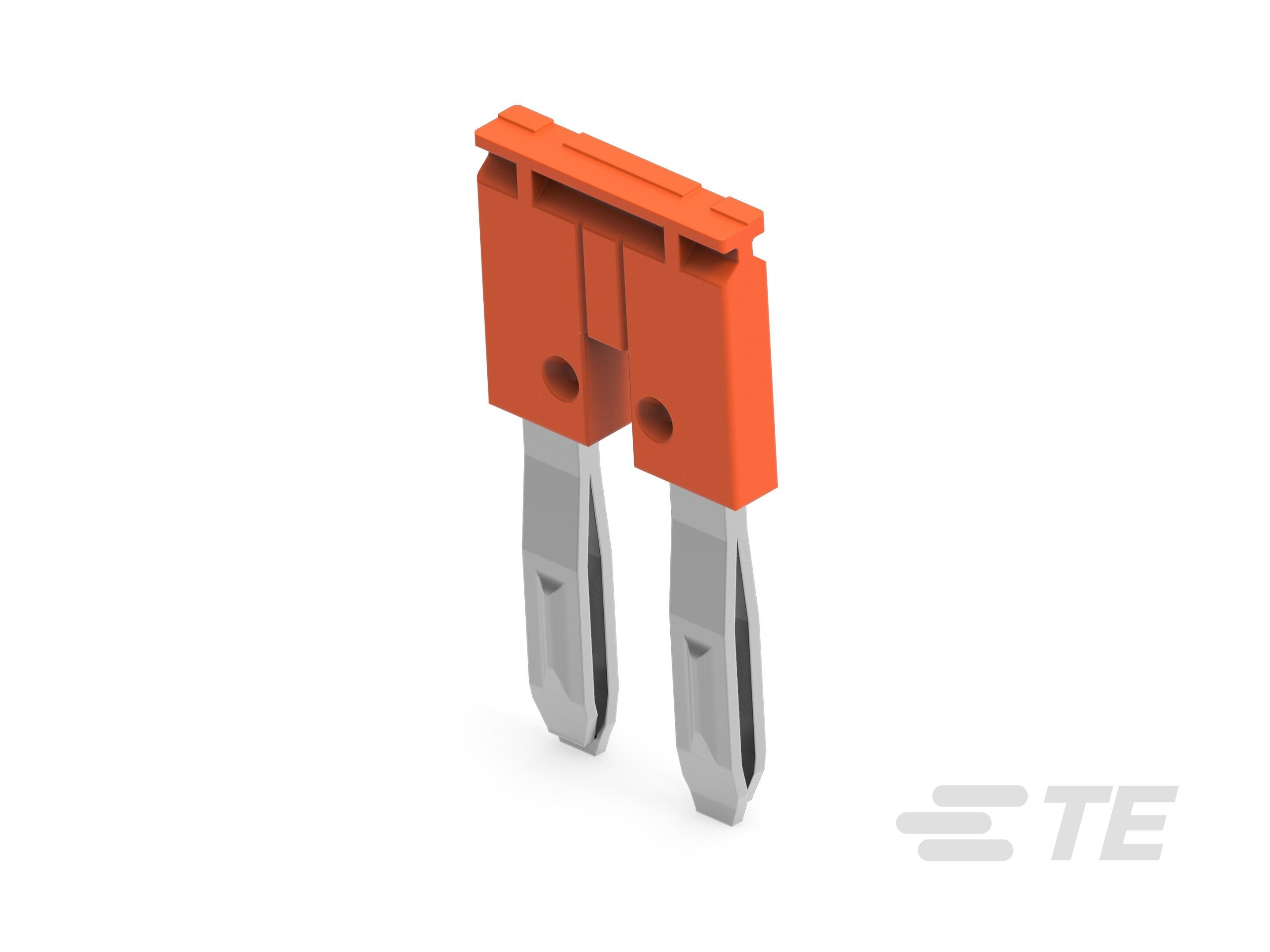

Orange, 2 pole type JB8-2, 57 Amp jumper bar.
Additional Description: TEC -1SNK908302R0000 JB8-2 Jumper Bar - Orange 1SNK908302R0000
Catalog Description: Facilitate & secure your jumper bar assembly process: - Screwless mounting, - Pre-cut poles for alternated jumpering between terminal blocks, - Insulated, - Positive locking, - Perfectly adapted to low level electrical contact (20mA, 50mV).
1SNK908302R0000 Item Features
- 57 IEC Current Rating
- 1000 IEC Voltage Rating
- 2200 Maximum Dielectric Withstanding Voltage
- 1200 Short-Time Withstanding Current Rating at 1s
- 42 CSA Current Rating
- 600 CSA Voltage Rating
- 6000 IEC Impulse Withstanding Voltage Rating
- 600 UL and CSA Operating Voltage Rating - Main Circuit
- Primary Product Color is Orange
- 57 Maximum Contact Current Rating
- -55 to 110 deg C Operating Temperature
- -5 to 40 deg C Installation Temperature
1SNK908302R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL Listed|CSA Certified|IP20SKU #2213098Part Number #1SNK908302R0000UNSPSC39121410UPC00804325489997
