Part Number # 1SNK908304R0000
SKU # 2232573
Image Disclaimers Message
1SNK908304R0000
ENTRELEC 1SNK908304R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Part Number # 1SNK908304R0000
SKU # 2232573
ENTRELEC 1SNK908304R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK908304R0000 |
| SKU #: | 2232573 |
| Dimensions: | 29.6 mm H x 8 mm W x 27.8 mm L |
| Number of Poles: | 4 |
| Series: | SNK |
| Suitable For Use With: | Terminal Block and strips |
| Type: | Comb |
| Country of origin: | FR |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325490016 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK908304R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Brand: ENTRELEC
Part Number: 1SNK908304R0000

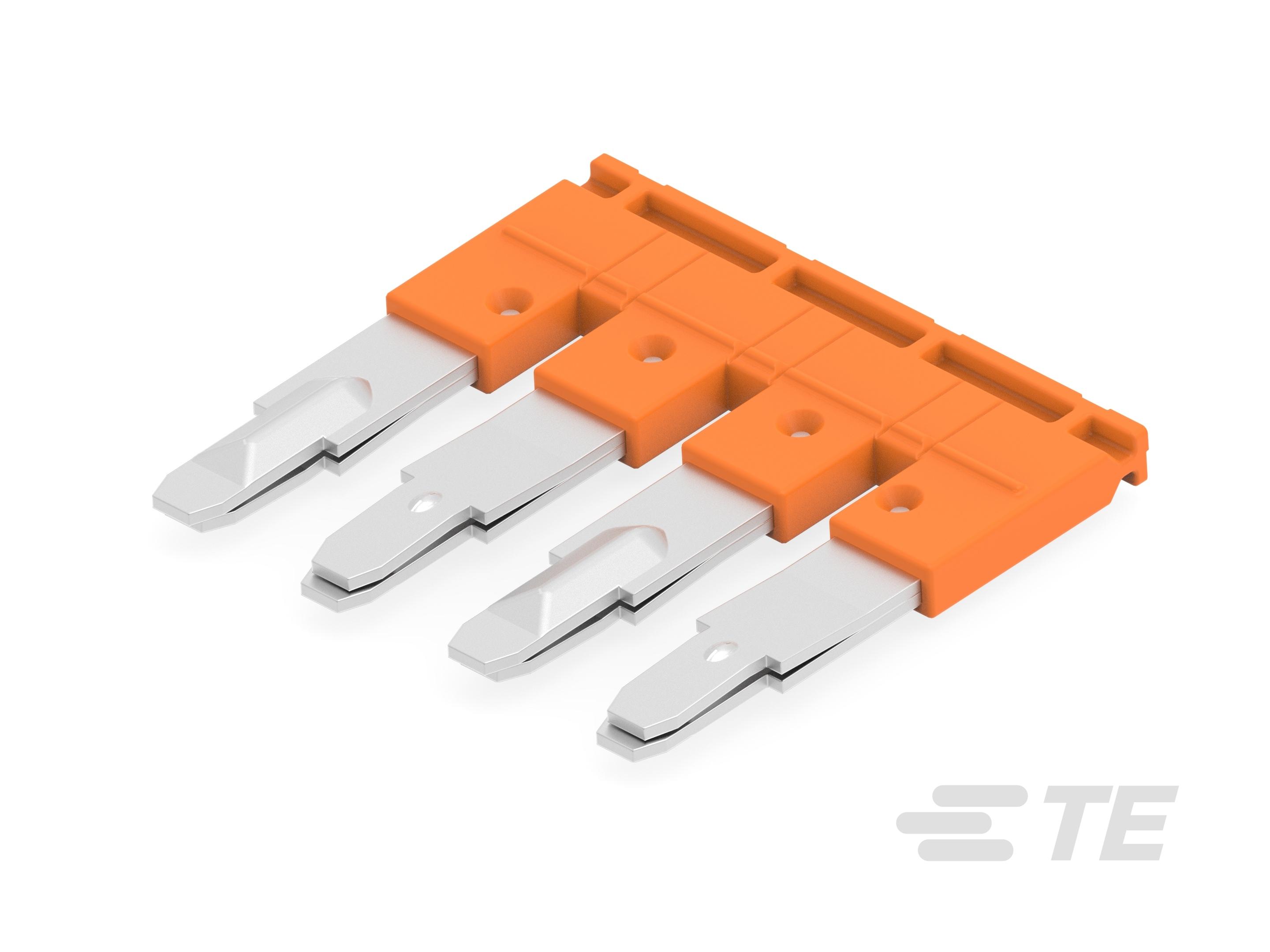

TE, 1SNK908304R0000, Jumper Bar, Comb, Series: SNK, 4 Pole, For Use With: Terminal Block and Strips, Polyamide, 29.6 mm H x 8 mm W x 27.8 mm L Dimensions
Additional Description: TEC -1SNK908304R0000 (N) JB8-4 Jumper Bar - Orange 1SNK908304R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Facilitate & secure your jumper bar assembly process: - Screwless mounting, - Pre-cut poles for alternated jumpering between terminal blocks, - Insulated, - Positive locking, - Perfectly adapted to low level electrical contact (20mA, 50mV).
1SNK908304R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK908304R0000 Standards
IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2232573Part Number #1SNK908304R0000UNSPSC39121410UPC00804325490016
