Part Number # 1SNK910310R0000
SKU # 2260270
Image Disclaimers Message
1SNK910310R0000
ENTRELEC 1SNK910310R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Part Number # 1SNK910310R0000
SKU # 2260270
ENTRELEC 1SNK910310R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK910310R0000 |
| SKU #: | 2260270 |
| Dimensions: | 98 mm H x 10 mm W x 31.5 mm D, 98 mm H x 10 mm W x 31.5 mm L |
| Number of Poles: | 10 |
| Suitable For Use With: | SNK Terminal Block, ZK10/ZK10-3P/ZK10-PE/ZK10-PE-3P/ZS16 |
| Country of origin: | FR |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325490085 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK910310R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Brand: ENTRELEC
Part Number: 1SNK910310R0000

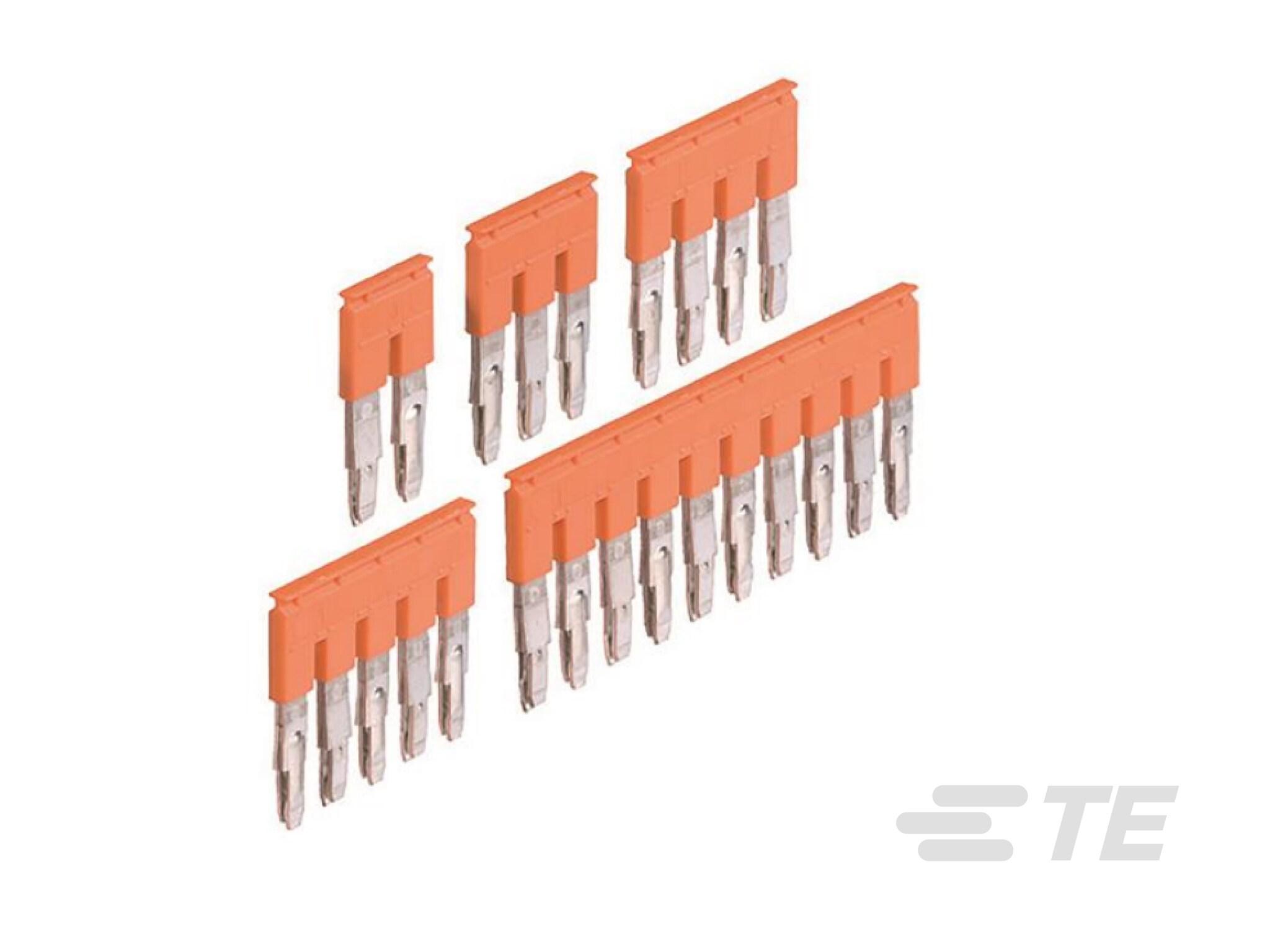

ABB Jumper Bar, 10 Pole, For Use With: SNK Terminal Block, Polyamide, 98 mm H x 10 mm W x 31.5 mm D
Additional Description: TEC -1SNK910310R0000 (N) JB10-10 Jumper Bar - Orange 1SNK910310R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Facilitate & secure your jumper bar assembly process: - Screwless mounting, - Pre-cut poles for alternated jumpering between terminal blocks, - Insulated, - Positive locking, - Perfectly adapted to low level electrical contact (20mA, 50mV).
1SNK910310R0000 Item Features
- 76 IEC Current Rating
- 1000 IEC Voltage Rating
- 2200 Maximum Dielectric Withstanding Voltage
- 1920 Short-Time Withstanding Current Rating at 1s
- 67 CSA Current Rating
- 600 CSA Voltage Rating
- 6000 IEC Impulse Withstanding Voltage Rating
- 600 UL and CSA Operating Voltage Rating - Main Circuit
- Primary Product Color is Orange
- 76 Maximum Contact Current Rating
- -55 to 110 deg C Operating Temperature
- -5 to 40 deg C Installation Temperature
1SNK910310R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL Listed|CSA Certified|IP20SKU #2260270Part Number #1SNK910310R0000UNSPSC39121410UPC00804325490085
