ENTRELEC 1SNK912303R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Part Number # 1SNK912303R0000
SKU # 2350293
1SNK912303R0000
ENTRELEC 1SNK912303R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Part Number # 1SNK912303R0000
SKU # 2350293
ENTRELEC 1SNK912303R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK912303R0000 |
| SKU #: | 2350293 |
| Dimensions: | 32 mm H x 12 mm W x 31.5 mm L |
| Series: | JB12 |
| Suitable For Use With: | ZK16/ZK16-3P/ZK16-PE/ZK16-PE-3P/ZS25/ZS25-PE |
| UNSPSC: | 39121410 |
| UPC: | 00888614180031 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNK912303R0000 Facilitate & secure your jumper bar assembly process: - Screwless mounting
Brand: ENTRELEC
Part Number: 1SNK912303R0000

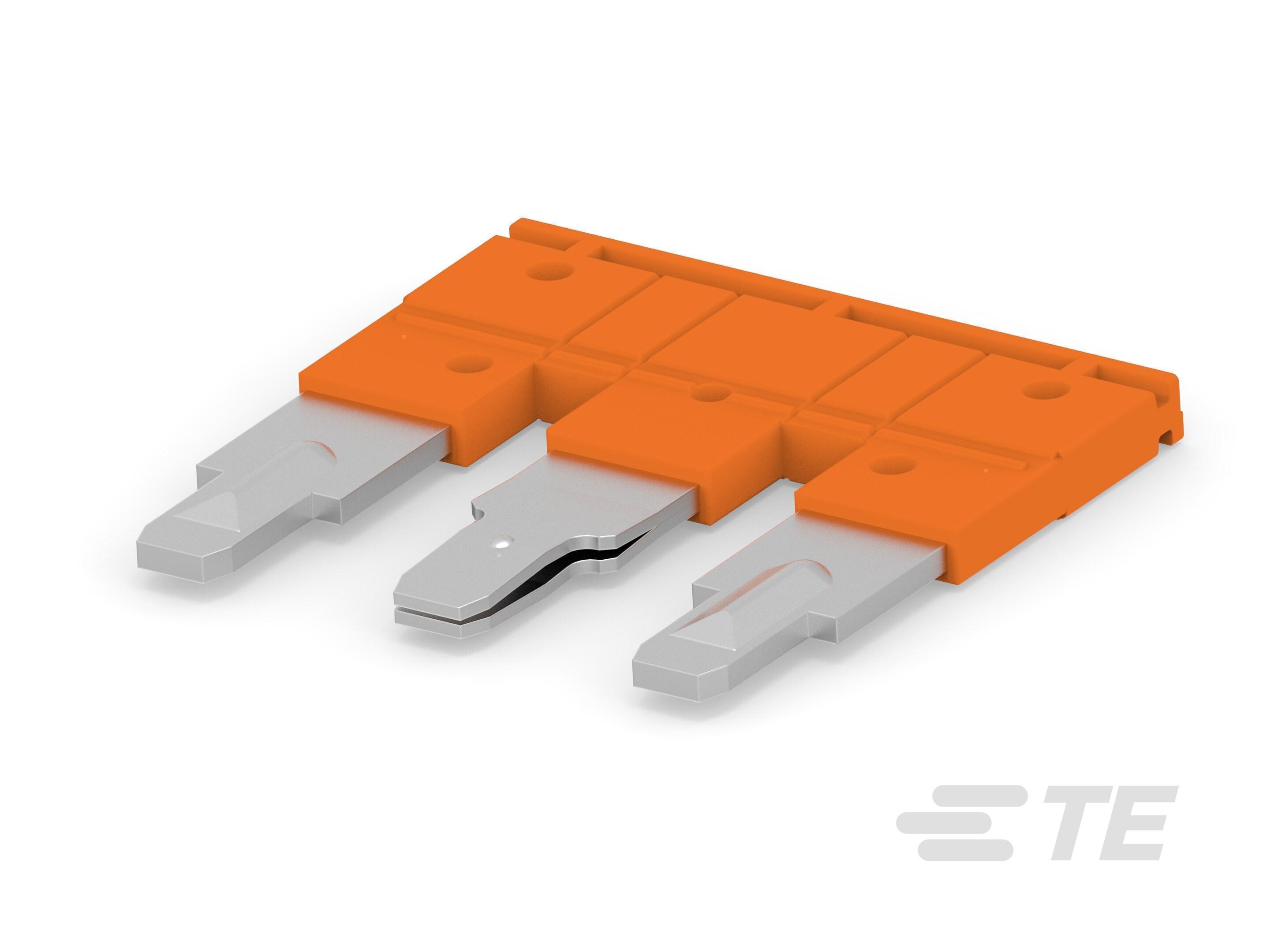

TE, 1SNK912303R0000, Jumper Bar, Terminal Block, Series: JB12, 3 Pole, For Use With: ZK16/ZK16-3P/ZK16-PE/ZK16-PE-3P/ZS25/ZS25-PE, Polyamide, 32 mm H x 12 mm W x 31.5 mm L Dimensions
Additional Description: TEC -1SNK912303R0000 (N) JB12-3 Jumper Bar - Orange 1SNK912303R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Facilitate & secure your jumper bar assembly process: - Screwless mounting, - Pre-cut poles for alternated jumpering between terminal blocks, - Insulated, - Positive locking, - Perfectly adapted to low level electrical contact (20mA, 50mV).
1SNK912303R0000 Application
For Jumper Bars application1SNK912303R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK912303R0000 Standards
CSA Certified|UL Listed|IEC Certified|IP20 Standard|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2350293Part Number #1SNK912303R0000UNSPSC39121410UPC00888614180031
Image provided may only be a representation of final product and may include optional equipment
