104-2U-03V
Edwards Signaling 104-2U-03V
Part Number # 104-2U-03V
SKU # 2444545
$72.26 / Each
Typical price:$78.93 / Each
Edwards Signaling 104-2U-03V Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 104-2U-03V |
| SKU #: | 2444545 |
| Actuator Type: | Magnetic |
| Contact Rating: | 0.5 A at 30 V AC/DC, 15 VA |
| Dimensions: | 1.5 in L x 0.27 in W x 0.75 in H |
| Enclosure Type: | NEMA 1/2/3/4/4X/5/6/12/IP67 |
| Series: | Mini-Guard 104 |
| Type: | Non-Contact Reed |
| Connection type: | 22/3 AWG Fly Lead |
| Contact material: | Polyurethane |
| Manufacturer Name: | Edwards Signaling |
| UNSPSC: | 39122221 |
| UPC: | 00046188002887 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$72.26 / Each
Typical price:$78.93 / Each
Quantity:

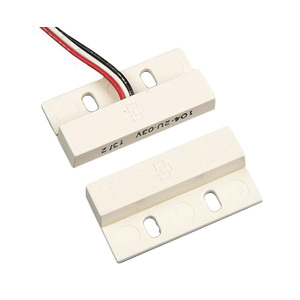

- Edwards Signaling GuardSwitch Interlock/Position Switch, Non-Contact Reed, Series: Mini-Guard 104, Magnetic Actuator, 1.5 in L x 0.27 in W x 0.75 in H Actuator, 0.5 A at 30 V AC/DC, 15 VA Contact, SPDT Contact Configuration, Polyurethane Contact, 22/3 AWG Fly Lead Connection, 3 ft Cable Length, NEMA 1/2/3/4/4X/5/6/12/IP67 Enclosure, ABS, 1.5 in L x 0.27 in W x 0.75 in H Dimensions
104-2U-03V Application
Mail Sorting Machines, Gaming Industry, Drop Door, Player Tracking, Bill Validator, Access Door, Scissor Lift and Position Sensing Applications104-2U-03V Item Features
- This small switch is easy-to-install and is ideal for mail sorting and gaming machine position or security applications
- 0.11 A at 120 VAC/VDC switching voltage, 0.5 A at 30 VAC/VDC switching current,15 VA contact rating
- Magnet/U
104-2U-03V Standards
cURus File No. E122942|CSA File No. LR89176|UL Listed|cUL ListedSKU #2444545Part Number #104-2U-03VUNSPSC39122221UPC00046188002887
Image provided may only be a representation of final product and may include optional equipment
