Part Number # 105SINHB-G1
SKU # 2347299
Image Disclaimers Message
Brand: Edwards Signaling
105SINHB-G1

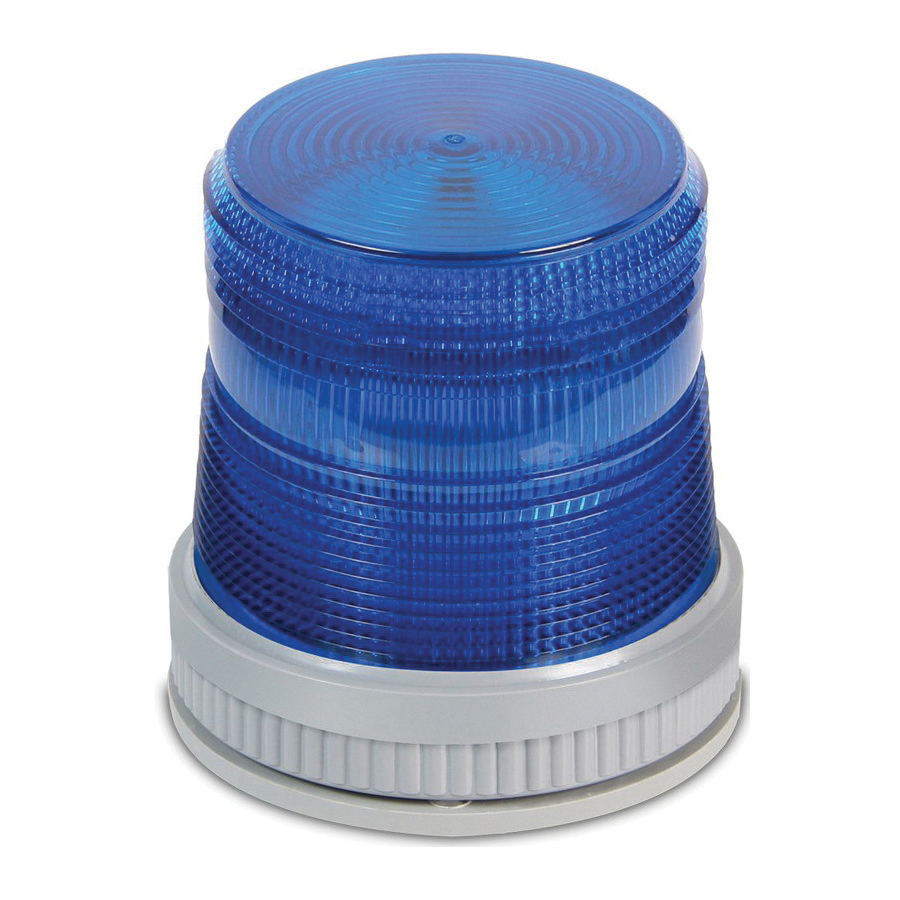

Edwards Signaling 105SINHB-G1 Adaptabeacon Steady-On Beacon
Part Number # 105SINHB-G1
SKU # 2347299
$297.65 / Each
Typical price:$325.13 / Each
Edwards Signaling 105SINHB-G1 Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 105SINHB-G1 |
| SKU #: | 2347299 |
| Amperage Rating: | 0.8 A |
| Dimensions: | 4-5/8 in H |
| Lamp Type: | Halogen |
| Light Output: | 2839 cd |
| NEMA Rating: | NEMA 4X |
| Series: | 105 |
| Temperature Rating (Degrees F): | 248 to 419 deg F |
| Type: | Corrosion-Resistant Heavy Duty |
| Wattage: | 20 W |
| Color: | Blue |
| Country of origin: | US |
| Diameter: | 4-1/2 in |
| Housing material: | Glass Reinforced Thermoplastic Polyester Resin/Polycarbonate |
| Mounting type: | Panel/Wall, Versatile |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39111706 |
| UPC: | 00078264026667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$297.65 / Each
Typical price:$325.13 / Each
Quantity:
- Edwards Signaling AdaptaBeacon Steady-On Beacon, Corrosion-Resistant Heavy Duty, Series: 105, 24 V DC, 0.8 A, 20 W Wattage, 4-1/2 in Diameter, Halogen Lamp, Blue, Continuous Steady-On Flash, 2839 cd Light Output, 20000 hr Average Life, Versatile Mounting, NEMA 4X NEMA Rating, 248 to 419 deg F, Glass Reinforced Thermoplastic Polyester Resin/Polycarbonate Housing Material, 4-5/8 in H Dimensions
105SINHB-G1 Application
Indoor, Outdoor, Marine, Adverse and Hazardous Locations105SINHB-G1 Item Features
- Shatter-resistant double fresnel polycarbonate lens
- Gray Rynite (PET) base with brass hardware
- Glass reinforced thermoplastic polyester resin base, polycarbonate lens
105SINHB-G1 Standards
UL 1638|UL 1604|UL 1971|UL Listed for Class I Div. 2, Group A, B, C, D, Class II Div. 2, Group F, G, Class III for Hazardous Location|cUL Listed for Marine Environments|UL Listed|cULus ListedSKU #2347299Part Number #105SINHB-G1UNSPSC39111706UPC00078264026667
