1078W-N

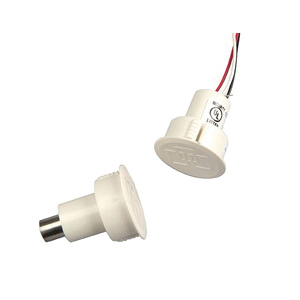

Edwards Signaling 1078W-N Door Recessed Switch
Part Number # 1078W-N
SKU # 2264453
$22.02 / Each
Typical price:$24.05 / Each
Edwards Signaling 1078W-N Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 1078W-N |
| SKU #: | 2264453 |
| Amperage Rating: | 0.5 A |
| Contact Configuration: | 1NO |
| Dimensions: | 1 in Dia |
| Series: | 1078 |
| Specifications: | 7.5 W/VA Load, 1 in Sense Range, 1 ft L Lead, 0.2 Ohm Contact Resistance, NEMA 1/2/3/4/4X/5/6/12/IP67 Enclosure |
| Temperature Rating (Degrees F): | -40 to 150 deg F |
| Terminal Type: | 22 AWG Wire Lead |
| Type: | Wide Gap |
| Color: | Natural White |
| Country of origin: | US |
| Material: | ABS/Steel |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39122221 |
| UPC: | 00046188015757 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.02 / Each
Typical price:$24.05 / Each
Quantity:
- Edwards Signaling Door Recessed Switch, Wide Gap, Series: 1078, 100 V AC/DC, 0.5 A, 1NO Contact Configuration, Specifications: 7.5 W/VA Load, 1 in Sense Range, 1 ft L Lead, 0.2 Ohm Contact Resistance, NEMA 1/2/3/4/4X/5/6/12/IP67 Enclosure, 22 AWG Wire Lead Terminal, -40 to 150 deg F, ABS/Steel, Natural White, 1 in Dia Dimensions
1078W-N Application
For steel doors commonly found in commercial building and outdoor applications1078W-N Item Features
- Unique housing design features a rugged unibody construction with flexible ribbed sides for quick installs
- Special design for special mounting
- Self-lock mounting
- 15/16 in Dia hole required
- UL approved for specific fire doors
1078W-N Standards
UL Listed|ULC Listed|cULus ListedSKU #2264453Part Number #1078W-NUNSPSC39122221UPC00046188015757
