Edwards Signaling 141-6Y-06M Switch Part Or Accessory
Part Number # 141-6Y-06M
SKU # 2413188
141-6Y-06M
Edwards Signaling 141-6Y-06M Switch Part Or Accessory
Part Number # 141-6Y-06M
SKU # 2413188
Edwards Signaling 141-6Y-06M Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 141-6Y-06M |
| SKU #: | 2413188 |
| Actuator Type: | Magnetic |
| Contact Rating: | 0.7 A at 35 V AC/1 A at 25 V DC, 25 VA |
| Dimensions: | 2.13 in L x 0.57 in W x 0.86 in H |
| Enclosure Type: | NEMA 1/2/3/4/4X/5/6/12/13/IP67 |
| Series: | 141 |
| Type: | Non-Contact Reed |
| Connection type: | 18/2 AWG SJTOW Cable |
| Contact material: | Polyurethane |
| Material: | Kynar Polyvinylidene Fluoride |
| Manufacturer Name: | Edwards Signaling |
| UNSPSC: | 39122221 |
| UPC: | 00046188130610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Edwards Signaling 141-6Y-06M Switch Part Or Accessory
Brand: Edwards Signaling
Part Number: 141-6Y-06M

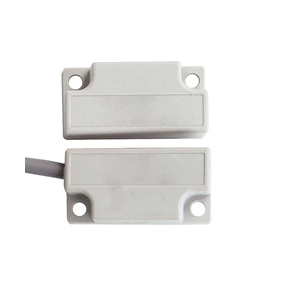

Edwards Signaling™ GuardSwitch™ Interlock/Position Switch, Non-Contact Reed, Series: 141, Magnet/Y Actuator, 2.13 in L x 0.57 in W x 0.86 in H Actuator, 0.7 A at 35 VAC/1 A at 25 VDC, 25 VA Contact, 1NO Contact Configuration, Polyurethane Contact, 18/2 AWG SJTOW Cable Connection, 6 ft Cable Length, NEMA 1/2/3/4/4X/5/6/12/13/IP67 Enclosure, Kynar® Polyvinylidene Fluoride, Gray, 2.13 in L x 0.57 in W x 0.86 in H Dimensions
Additional Description: EDWD-141-6Y-06M 141,RE, 25 VA ,NO MAG, Y 18/2,
Catalog Description: 141 Reed, 25VA, N.O, 1 Amp Max, Grey SJTOW 18/2 6Ft, Y Actuator
141-6Y-06M Application
Commercial Dishwashing Machine, Parts Cleaning Machine and Chemical Environments141-6Y-06M Item Features
- 0.2 A at 120 VAC/0.2 A at 120 VDC switching current, 0.7 A at 35 VAC/1 A at 25 VDC switching current, 25 VA contact rating
- Magnet/Y
141-6Y-06M Standards
cURus File No. E115761|CSA File No. LR89176|UL ListedSKU #2413188Part Number #141-6Y-06MUNSPSC39122221UPC00046188130610
Image provided may only be a representation of final product and may include optional equipment
