Edwards Signaling 301-CT-06K Switch Part Or Accessory
Part Number # 301-CT-06K
SKU # 2432379
301-CT-06K
Edwards Signaling 301-CT-06K Switch Part Or Accessory
Part Number # 301-CT-06K
SKU # 2432379
Edwards Signaling 301-CT-06K Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 301-CT-06K |
| SKU #: | 2432379 |
| Actuator Type: | Magnetic |
| Contact Rating: | 0.18 A at 13.8 V AC/0.18 A at 13.8 V DC, 2.5 VA |
| Dimensions: | 1.48 in H x 3.07 in W x 0.66 in D |
| Enclosure Type: | NEMA 1/2/4/4X/5/12/12K/IP66 |
| Series: | 301 |
| Type: | Non-Contact Reed |
| Connection type: | 18/2 AWG SJTOW Cable |
| Contact material: | Polyurethane |
| Manufacturer Name: | Edwards Signaling |
| UNSPSC: | 39122221 |
| UPC: | 00046188006434 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Edwards Signaling 301-CT-06K Switch Part Or Accessory
Brand: Edwards Signaling
Part Number: 301-CT-06K
Edwards Signaling™ GuardSwitch™ Interlock Switch, Non-Contact Reed, Series: 301, Magnet/T Actuator, 3.07 in L x 0.74 in W x 0.98 in H Actuator, 0.18 A at 13.8 VAC/0.18 A at 13.8 VDC, 2.5 VA Contact, 1NO Contact Configuration, Polyurethane Contact, 18/2 AWG SJTOW Cable Connection, 6 ft Cable Length, NEMA 1/2/4/4X/5/12/12K/IP66 Enclosure, 304 Stainless Steel, 1.48 in H x 3.07 in W x 0.66 in D Dimensions
Additional Description: EDWD-301-CT-06K 301 RE .3AMP MAG T CBL 18/2
Catalog Description: 301 Reed, 0.18 Amp, Normally Open, SJTOW 18/2 6Ft, T Actuator
301-CT-06K Application
Highly Defeat Resistant Switch, Grinder Machine, Augur Machine and Chopper Machine Applications301-CT-06K Item Features
- The 301 GuardSwitch is a defeat-resistant position sensor that works best in interlock applications where a switch override must be prevented
- 0.08 A at 30 VAC/0.08 A at 30 VDC switching current, 0.18 A at 13.8 VAC/0.18 A at 13.8 VDC switching current, 2.5 VA contact rating
- Magnet/T
301-CT-06K Standards
cURus File No. E115761|CSA File No. LR89176|UL ListedSKU #2432379Part Number #301-CT-06KUNSPSC39122221UPC00046188006434

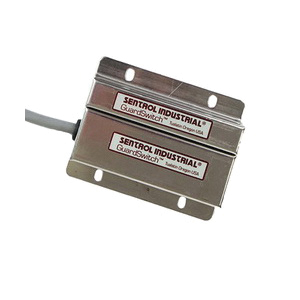

Image provided may only be a representation of final product and may include optional equipment
