Brand: Edwards Signaling
301-DT-06K

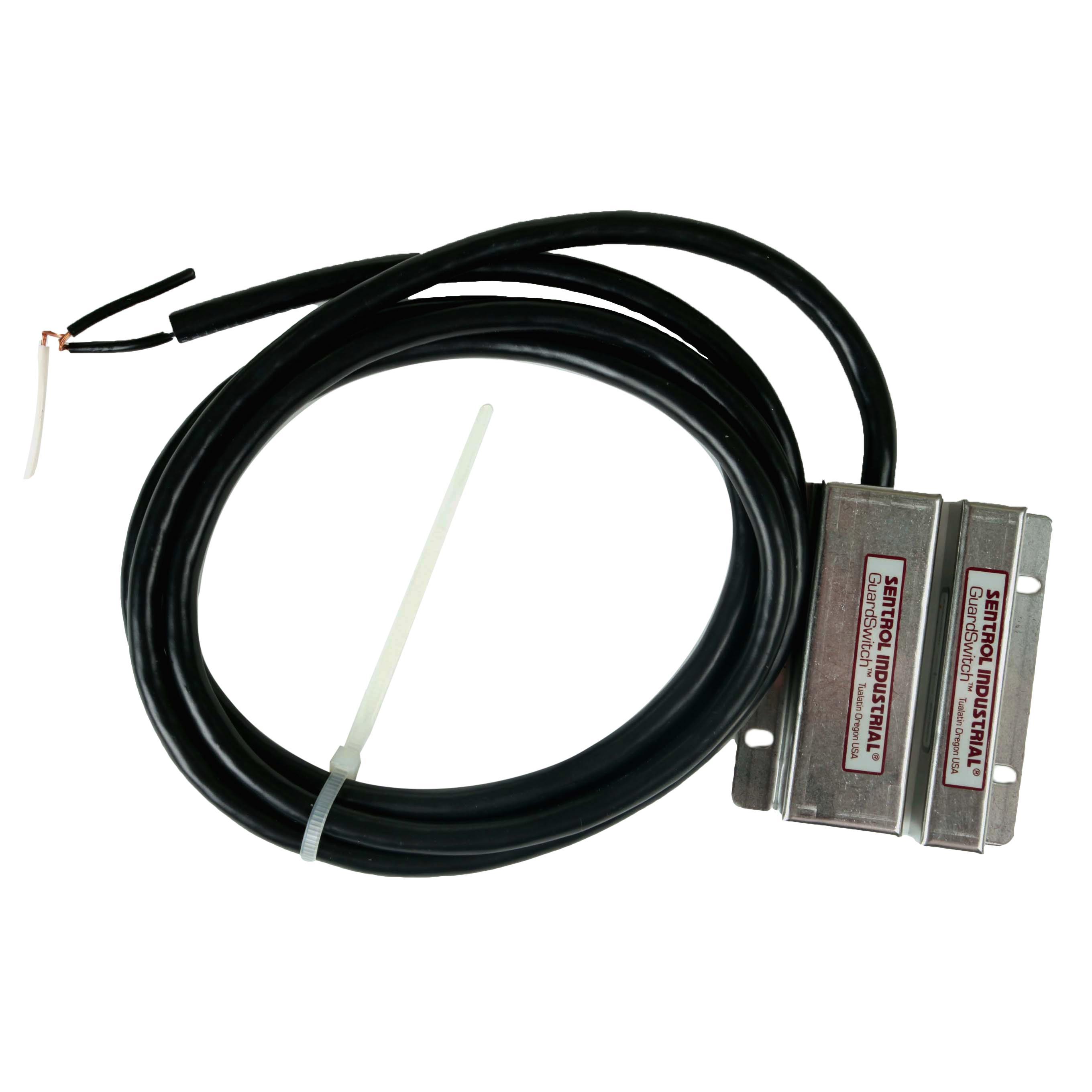

Edwards Signaling 301-DT-06K Guardswitch Interlock Switch
Part Number # 301-DT-06K
SKU # 2223817
$375.42 / Each
Typical price:$410.07 / Each
Edwards Signaling 301-DT-06K Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 301-DT-06K |
| SKU #: | 2223817 |
| Actuator Type: | Magnet/T, Magnetic |
| Contact Configuration: | 1NO |
| Contact Rating: | 1.25 A at 120 V AC/DC, 150 VA, 1.25 A at 120 VAC/VDC, 150 VA |
| Dimensions: | 3.07 in L x 0.66 in W x 1.48 in H |
| Enclosure Type: | NEMA 1/2/4/4X/5/12/12K/IP66 |
| Series: | 301 |
| Type: | Non-Contact |
| Cable length: | 6 ft |
| Connection type: | 18/2 AWG SJTOW Cable |
| Contact material: | Polyurethane |
| Country of origin: | US |
| Material: | 304 Stainless Steel |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39122221 |
| UPC: | 00046188006496 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$375.42 / Each
Typical price:$410.07 / Each
Quantity:
- Edwards Signaling GuardSwitch Interlock Switch, Non-Contact, Series: 301, Magnetic Actuator, 3.07 in L x 0.74 in W x 0.98 in H Actuator, 1.25 A at 120 V AC/DC, 150 VA Contact, 1NO Contact Configuration, Polyurethane Contact, 18/2 AWG SJTOW Cable Connection, 6 ft Cable Length, NEMA 1/2/4/4X/5/12/12K/IP66 Enclosure, 304 Stainless Steel, 3.07 in L x 0.66 in W x 1.48 in H Dimensions
301-DT-06K Application
Highly Defeat Resistant Switch, Grinder Machine, Augur Machine and Chopper Machine Applications301-DT-06K Item Features
- The 301 GuardSwitch is a defeat-resistant position sensor that works best in interlock applications where a switch override must be prevented
- 1.25 A at 120 VAC switching voltage, 1.25 A at 120 VAC/VDC switching current, 150 VA contact rating
- Magnet/T
301-DT-06K Standards
cURus File No. E115761|CSA File No. LR89176|UL ListedSKU #2223817Part Number #301-DT-06KUNSPSC39122221UPC00046188006496
