Part Number # 48SING-G1-20WH
SKU # 2268432
48SING-G1-20WH

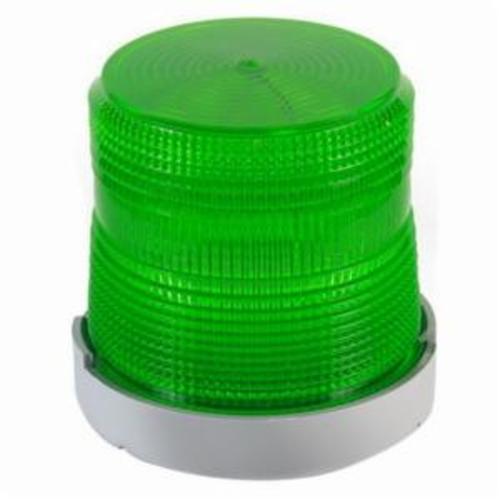

Edwards Signaling 48SING-G1-20WH Adaptabeacon Steady-On Beacon
Part Number # 48SING-G1-20WH
SKU # 2268432
Edwards Signaling 48SING-G1-20WH Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 48SING-G1-20WH |
| SKU #: | 2268432 |
| Dimensions: | 4-7/32 in H |
| Light Output: | 2839 cd |
| Series: | 48 Series |
| Type: | Mid Size Weatherproof |
| Diameter: | 4-9/32 in |
| Housing material: | ABS Base/Polycarbonate Dome |
| Mounting type: | 1/2 in Panel, Versatile |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39111706 |
| UPC: | 00078264025480 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Edwards Signaling 48SING-G1-20WH Adaptabeacon Steady-On Beacon
Brand: Edwards Signaling
Part Number: 48SING-G1-20WH
Edwards Signaling AdaptaBeacon Steady-On Beacon, Mid Size Weatherproof, Series: 48 Series, 24 VDC, 0.8 A, 20 W Wattage, Cylindrical Shape, 4-9/32 in Diameter, Incandescent Lamp, Green, 65 fpm Flash, 2839 cd Light Output, 20000 hr Average Life, Specifications Met: UL 1638, cUL Listed, 1/2 in Panel Mounting, NEMA 4X, -31 to 150 deg F, ABS Base/Polycarbonate Dome Housing Material, 4-7/32 in H
Additional Description: EDWD-48SING-G1-20WH STDY_GRN_24DC
Catalog Description: 48 Series Steady-on Incandescent Beacon designed for indoor or outdoor applications.
48SING-G1-20WH Application
Indoor and Outdoor Applications48SING-G1-20WH Item Features
- Gray color base
- PLC compatible
- The lights may be direct or 1/2 in conduit mounted on any plan
- Quick snap-on
- Shatter-resistant polycarbonate lens
- For weatherproof installations units must be mounted vertically with dome up
- Ideally suited for applications where a continuous steady-on incandescent light signal is required or where ambient noise makes audible signals difficult to hear
- The 48SIN is used where multiple, smaller, stand-alone visual signals are required
- The gasketed NEMA 4X enclosure ensures installation acceptability in most industrial and commercial locations
48SING-G1-20WH Standards
ARRA Compliant|Buy American Act CompliantSKU #2268432Part Number #48SING-G1-20WHUNSPSC39111706UPC00078264025480
Image provided may only be a representation of final product and may include optional equipment
