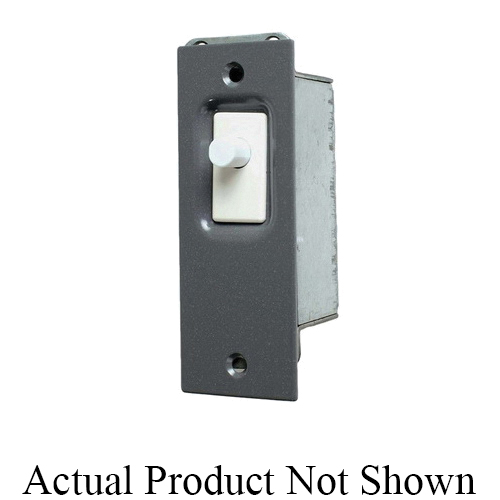

Image provided may only be a representation of
final product and may include optional equipment
501A-G
Edwards Signaling 501A-G Door Light Switch
Part Number # 501A-G
SKU # 2259543
$331.40 / 10Each
Typical price:$362.00 / Each
Edwards Signaling 501A-G Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 501A-G |
| SKU #: | 2259543 |
| Actuator: | Switch |
| Amperage Rating: | 10 A |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Dimensions: | 2-15/16 in H x 1-11/32 in W x 1-3/4 in D |
| Country of origin: | CN |
| Mounting type: | Hole |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39122216 |
| UPC: | 00078264024570 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$331.40 / 10Each
Typical price:$362.00 / Each
Quantity:
Edwards Signaling 501A-G Door Light Switch
Brand: Edwards Signaling
Part Number: 501A-G
Edwards Signaling Door Light Switch, 120 VAC, 10 A, 1NC-1NO Contact Configuration, Switch Actuator, Hole Mounting, Gold, 2-15/16 in H x 1-11/32 in W x 1-3/4 in D Dimensions
Additional Description: EDWD-501A-G SWITCH DOOR, GOLD FACE PLATE
Catalog Description: All-purpose electric door switch. Wired either normally open or normally closed. Painted gold face plate
501A-G Application
For closet doors, dark rooms and walk-in refrigerators501A-G Item Features
- All purpose electric door switch
- May be wired either normally open or normally closed
- Painted gold faceplate
- Switch mounts using the mounting holes on 3 in (76 mm) centers
501A-G Standards
UL ListedSKU #2259543Part Number #501A-GUNSPSC39122216UPC00078264024570
