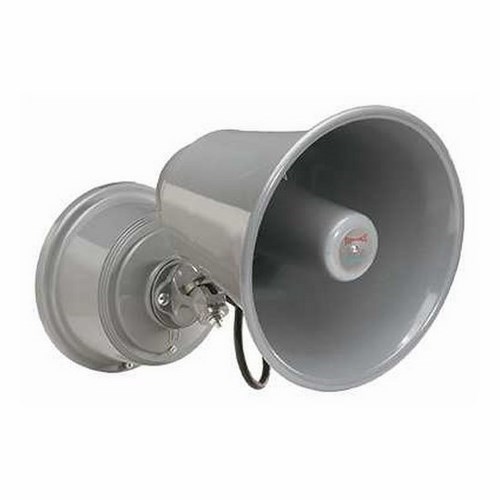

Edwards Signaling 5520-N5 Duotronic Horn And Siren
Part Number # 5520-N5
SKU # 11494
$1122.57 / Each
Typical price:$1290.73 / Each
Edwards Signaling 5520-N5 Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 5520-N5 |
| SKU #: | 11494 |
| Amperage Rating: | 0.35 A |
| Dimensions: | 14 in L x 13-1/2 in W x 11 in H |
| Frequency Rating: | 50/60 Hz |
| Series: | 5520 |
| Sound Level: | 114 dB Horn/112 dB Siren |
| Type: | Electronic High Decibel |
| Color: | Gray |
| Country of origin: | US |
| Material: | Epoxy Coated Metal |
| Mounting type: | Surface |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 46171602 |
| UPC: | 00078264028040 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1122.57 / Each
Typical price:$1290.73 / Each
Quantity:
- Edwards Signaling Duotronic Horn and Siren, Electronic High Decibel, Series: 5520, 125 V AC, 0.35 A, 50/60 Hz Frequency, 114 dB Horn/112 dB Siren Sound Level, Specifications Met: UL 464, FM Approved, Surface Mounting, Epoxy Coated Metal, Gray, 14 in L x 13-1/2 in W x 11 in H Dimensions
5520-N5 Application
For schools, factories, lumber yards and other industrial and commercial installations5520-N5 Item Features
- Switchable horn or siren or horn models
- Easy mounting plate speeds installation
- Siren frequency rises and falls from 600 to 1300 Hz every 3 sec
- Speaker swivels 180 degree horizontally and 90 degree vertically
- The horn signal is often used for timing, paging, and burglar and fire alarms
- The signals universal Adaptaplate mounts directly on walls, or on any single-gang opening
- Adaptaplate speeds installation by allowing the installer to connect all field wiring to the plate and then finishing the installation by snapping the horn onto the plate
- It also mounts to 3-1/4 in, 3-1/2 in, 4 in octagon, 4 in square boxes or equivalent fittings
- For outdoor applications using 349 back box
- The siren signal is particularly suitable for high noise areas and often used for alerting an evacuation
