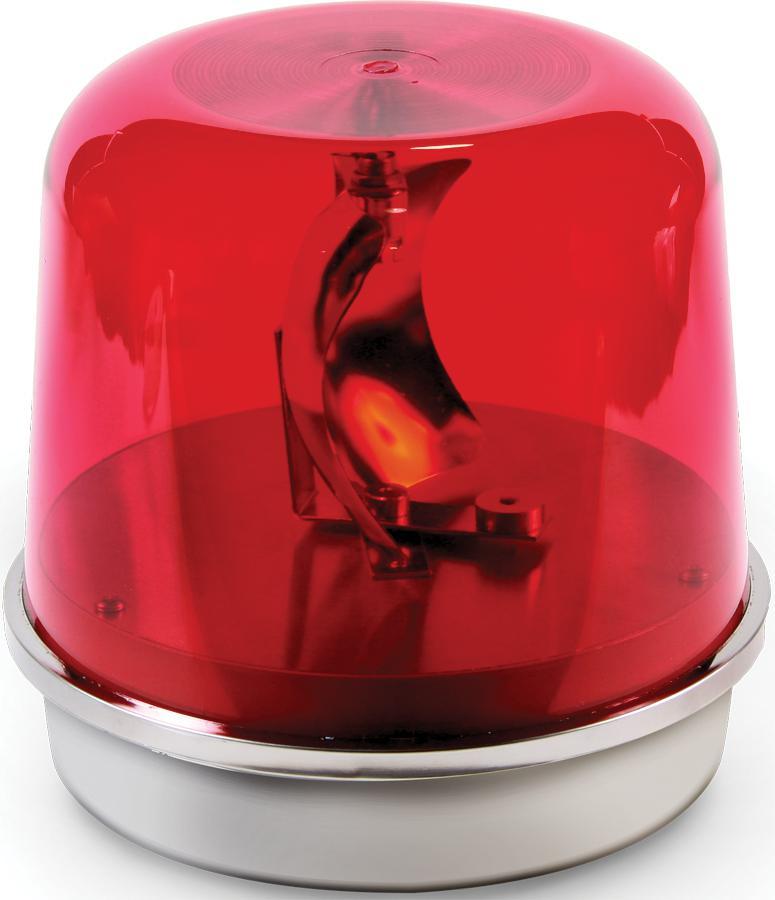

Edwards Signaling 58R-N5-100WH Rotating Beacon
Part Number # 58R-N5-100WH
SKU # 2239093
$1114.92 / Each
Typical price:$1217.83 / Each
Edwards Signaling 58R-N5-100WH Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 58R-N5-100WH |
| SKU #: | 2239093 |
| Amperage Rating: | 1 A |
| Dimensions: | 7-7/8 in H |
| Lamp Type: | Halogen |
| Light Output: | 1620 cd |
| NEMA Rating: | NEMA 4X |
| Series: | 58 Series |
| Temperature Rating (Degrees F): | -31 to 150 deg F |
| Type: | Heavy Duty High Profile |
| Wattage: | 100 W |
| Color: | Red |
| Country of origin: | TW |
| Diameter: | 8-1/16 in |
| Housing material: | Polycarbonate Dome |
| Mounting type: | 3/4 in NPT Surface, Screw |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39111706 |
| UPC: | 00078264030765 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1114.92 / Each
Typical price:$1217.83 / Each
Quantity:
- Edwards Signaling Rotating Beacon, Heavy Duty High Profile, Series: 58 Series, 120 V AC, 1 A, 100 W Wattage, Cylindrical Shape, 8-1/16 in Diameter, Halogen Lamp, Red, 65 fpm Flash, 1620 cd Light Output, 1000 hr Average Life, Specifications Met: UL 1638, UL 1604, cUL Listed, Class I, Div 2, Groups A, B, C, D, Class II, Div 2, Groups F, G, Class III, Div 1, Screw Mounting, NEMA 4X, -31 to 150 deg F, Polycarbonate Dome Housing Material, 7-7/8 in H Dimensions
58R-N5-100WH Application
For hazardous location requirements in industrial, commercial and institutional applications58R-N5-100WH Item Features
- Bayonet base
- Motor driven reflector
- It has a motor driven reflector and 100 W bayonet base halogen lamp
- For weatherproof applications, the unit must be mounted vertically, with the dome facing up
