Part Number # 878EX-G5
SKU # 2205457
Image Disclaimers Message
878EX-G5

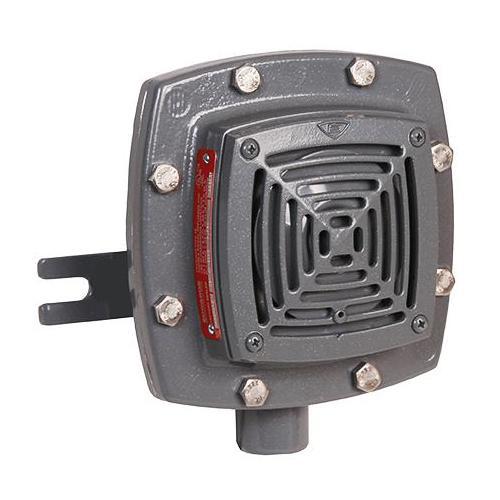

Edwards Signaling 878EX-G5 Vibrating Horn
Part Number # 878EX-G5
SKU # 2205457
$1288.50 / Each
Typical price:$1407.44 / Each
Edwards Signaling 878EX-G5 Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 878EX-G5 |
| SKU #: | 2205457 |
| Amperage Rating: | 0.625 A |
| Dimensions: | 7-5/8 in L x 7-3/8 in W x 4-3/16 in H |
| Frequency Rating: | 50/60 Hz |
| Operating Temperature: | 25 deg F |
| Series: | 878EX |
| Sound Level: | 100 dB |
| Type: | High Decibel |
| Color: | Gray |
| Country of origin: | US |
| Material: | Die Cast |
| Mounting type: | Surface, Wall |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 46171602 |
| UPC: | 00078264025810 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1288.50 / Each
Typical price:$1407.44 / Each
Quantity:
- Edwards Signaling Vibrating Horn, High Decibel, Series: 878EX, 24 V AC, 0.625 A, 50/60 Hz Frequency, 100 dB Sound Level, Specifications Met: UL Listed, Surface Mounting, 25 deg F Operating, Die Cast, Gray, 7-5/8 in L x 7-3/8 in W x 4-3/16 in H Dimensions
878EX-G5 Application
Dusty, Hazardous Atmospheres Where a Distinctive, Urgent Signal is Required, Mines, Petroleum Plants, Gas Plants, Grain Elevators, Flour Mills, Paper Mills, Textile Plants and Tankers878EX-G5 Item Features
- Corrosion-resistant heat flowed epoxy finish
- Low current drain
- Operating voltage range -20 to 10% of nominal voltage
- Power connection wires embedded in sealing compound
- Not recommended for temperatures below 25 deg F
- NEMA type 4X rated enclosure
SKU #2205457Part Number #878EX-G5UNSPSC46171602UPC00078264025810
