Part Number # 888D-N5
SKU # 2256822
Image Disclaimers Message
Brand: Edwards Signaling
888D-N5

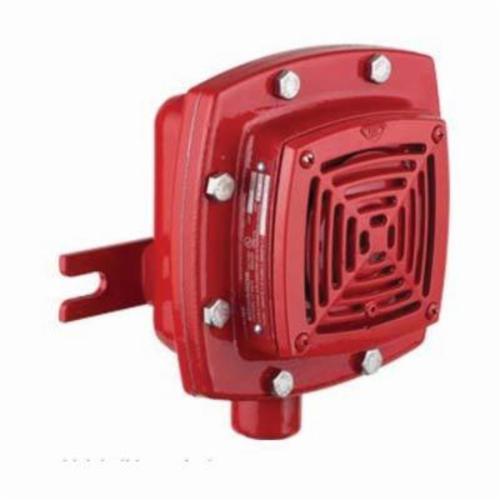

Edwards Signaling 889D-AW Safety Horns
Part Number # 888D-N5
SKU # 2256822
$1172.55 / Each
Typical price:$2030.51 / Each
Edwards Signaling 888D-N5 Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 888D-N5 |
| SKU #: | 2256822 |
| Amperage Rating: | 0.165 A |
| Dimensions: | 7-5/8 in H x 7-3/8 in W x 4-3/16 in D |
| Frequency Rating: | 60 Hz |
| Operating Temperature: | 25 to 104 deg F |
| Series: | 888D |
| Sound Level: | 100/90 dB |
| Type: | Grille |
| Country of origin: | US |
| Mounting type: | Surface, Wall |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 46171602 |
| UPC: | 00079301602350 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1172.55 / Each
Typical price:$2030.51 / Each
Quantity:
- Edwards Signaling Vibrating Horn, Grille, Series: 888D, 125 V AC, 0.165 A, 15.6 W Power, 60 Hz Frequency, 100/90 dB Sound Level, Specifications Met: UL Listed for Class I, Division 1 and 2, Groups B, C, and D, Class II, Division 1, 2, Groups E, F, G, Class III, Surface Mounting, 25 to 104 deg F Operating, Red, 7-5/8 in H x 7-3/8 in W x 4-3/16 in D Dimensions
888D-N5 Application
Used in applications where electrical supervision of signaling circuit field wiring, use in mines, petroleum plants, gas plants, grain elevators, flour mills, paper mills, textile plants and tankers888D-N5 Item Features
- Red corrosion-resistant heat flowed epoxy finish
- Low current drain
- Two mounting brackets are provided on either side of the unit for wall mounting
- The housing is tapped on one side for 3/4 in conduit to allow for field wiring installation
- For use in dusty, hazardous atmosphere where a distinctive, urgent signal is required
- Diode polarized
- -20% to 10% of nominal voltage operating voltage
- Power connection wires embedded in sealing compound
- 78 - 101 dB adjustable output
SKU #2256822Part Number #888D-N5UNSPSC46171602UPC00079301602350
