Part Number # 89SMSTRG-N5
SKU # 2267522
Image provided may only be a representation of
final product and may include optional equipment
89SMSTRG-N5

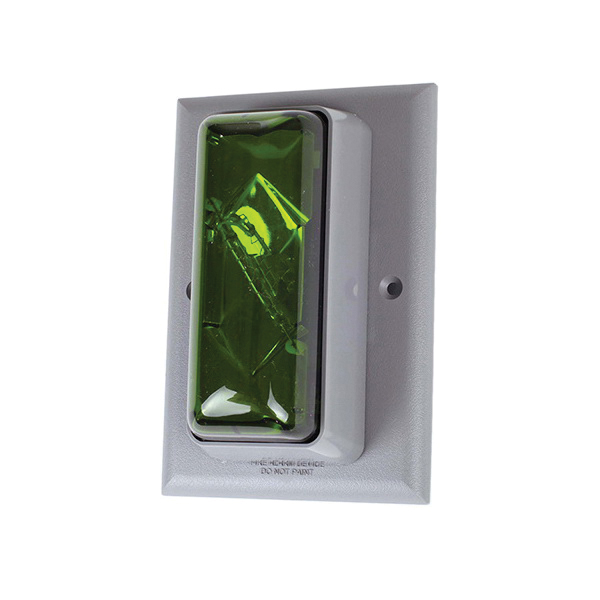

Edwards Signaling 89SMSTRG-N5 Adaptabeacon Flashing Beacon
Part Number # 89SMSTRG-N5
SKU # 2267522
Edwards Signaling 89SMSTRG-N5 Key Features
| Brand: | Edwards Signaling |
|---|---|
| Part Number # : | 89SMSTRG-N5 |
| SKU #: | 2267522 |
| Amperage Rating: | 0.115 A |
| Dimensions: | 5 in L x 3-3/8 in W x 2-1/8 in H |
| Lamp Type: | Xenon, Xenon Strobe |
| Lens Color: | Green |
| Light Output: | 70 cd |
| Series: | 89 Series |
| Temperature Rating (Degrees F): | 32 to 120 deg F |
| Country of origin: | US |
| Housing material: | Thermoplastic |
| Mounting type: | Surface |
| Manufacturer Name: | United Technologies |
| UNSPSC: | 39111706 |
| UPC: | 00078264025477 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Edwards Signaling 89SMSTRG-N5 Adaptabeacon Flashing Beacon
Brand: Edwards Signaling
Part Number: 89SMSTRG-N5
Edwards Signaling AdaptaBeacon Flashing Beacon, Series: 89 Series, 120 VAC, 0.115 A, Xenon Strobe Lamp, Green Lens, 60 fpm Flash, 70 cd Light Output, Surface Mounting, 32 to 120 deg F, Thermoplastic Housing Material, 5 in L x 3-3/8 in W x 2-1/8 in H Dimensions
Additional Description: EDWD-89SMSTRG-N5 STROBE SURFACE GREEN
Catalog Description: Surface Mount Strobe for indoor use. Mounts on supplied single gang box.
89SMSTRG-N5 Application
For timing, scheduling, paging, process control, general alarm, warning and indoor applications89SMSTRG-N5 Item Features
- Low current draw
- 150 cd effective strobe
- Screw terminals for easy wiring
- 85% relative humidity at 86 deg F
- Mounts on supplied single gang box
89SMSTRG-N5 Standards
UL 1638SKU #2267522Part Number #89SMSTRG-N5UNSPSC39111706UPC00078264025477
