Part Number # 1SNA400270R2000
SKU # 2412964
1SNA400270R2000
Entrelec 1SNA400270R2000 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Part Number # 1SNA400270R2000
SKU # 2412964
ENTRELEC 1SNA400270R2000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA400270R2000 |
| SKU #: | 2412964 |
| Dimensions: | 99.1 mm H x 8 mm W x 64.5 mm D |
| UNSPSC: | 39121629 |
| UPC: | 00066201940925 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNA400270R2000 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Brand: ENTRELEC
Part Number: 1SNA400270R2000
TE, 1SNA400270R2000, Terminal Block, Fused, 300 V, 6.3 A, 5 Pole, 9.5 mm Wire Strip Length, 8 mm Spacing, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Grey, 99.1 mm H x 8 mm W x 64.5 mm D Dimensions
Additional Description: TEC -1SNA400270R2000 D4/8.D2.P.SF Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - Grey 040027020
Catalog Description: - Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks), - Save space with double deck terminal blocks: 2 independent circuits 1 fuse on upper deck + 1 feed-through + 1 ground.
1SNA400270R2000 Application
For Fuse application1SNA400270R2000 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA400270R2000 Standards
CSA Certified|UL Listed|UL 94V-0|IEC Certified|IP20 Standard|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2412964Part Number #1SNA400270R2000UNSPSC39121629UPC00066201940925

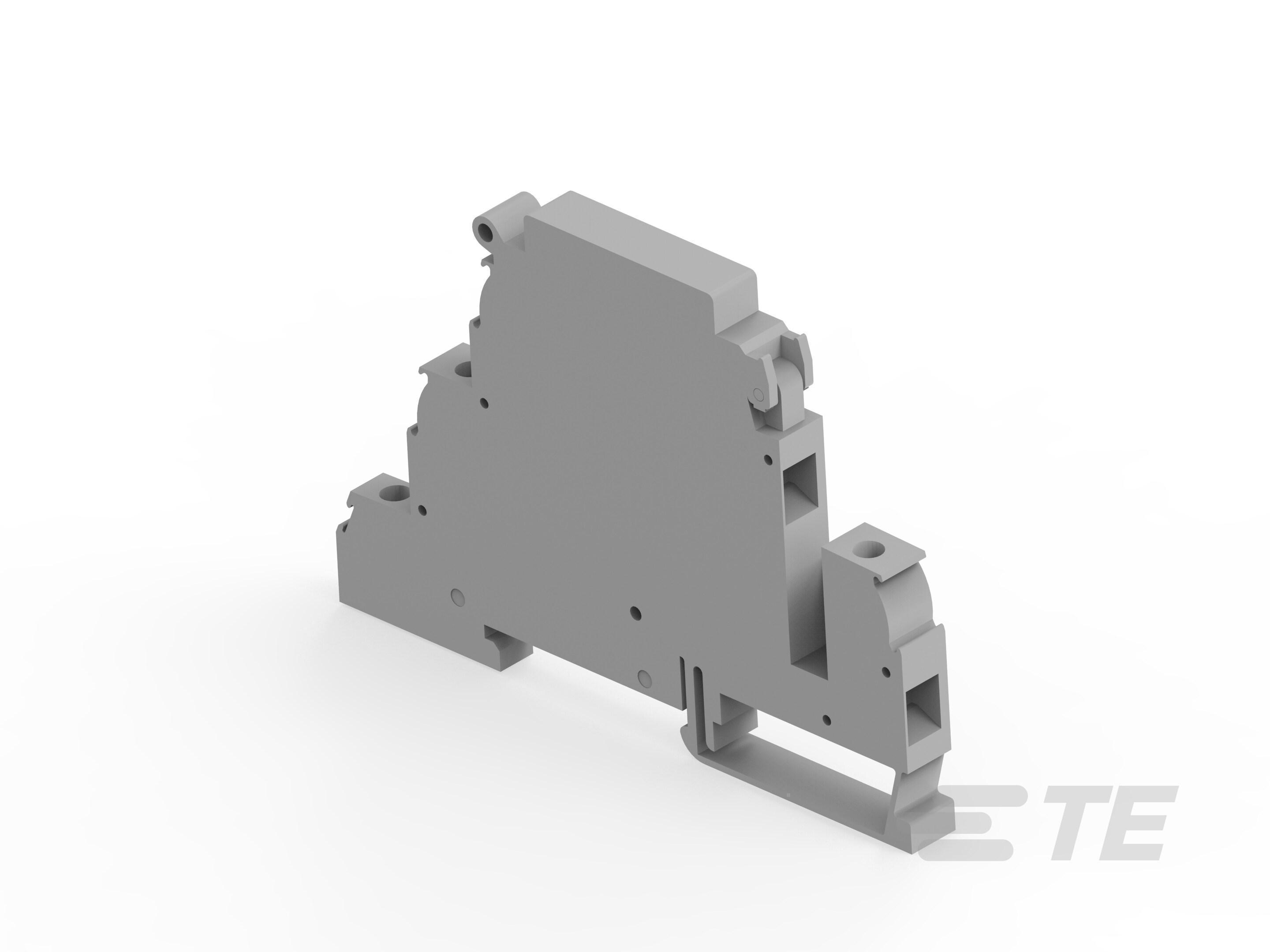

Image provided may only be a representation of final product and may include optional equipment
