Part Number # 1SNA400271R1500
SKU # 2412965
Image Disclaimers Message
1SNA400271R1500

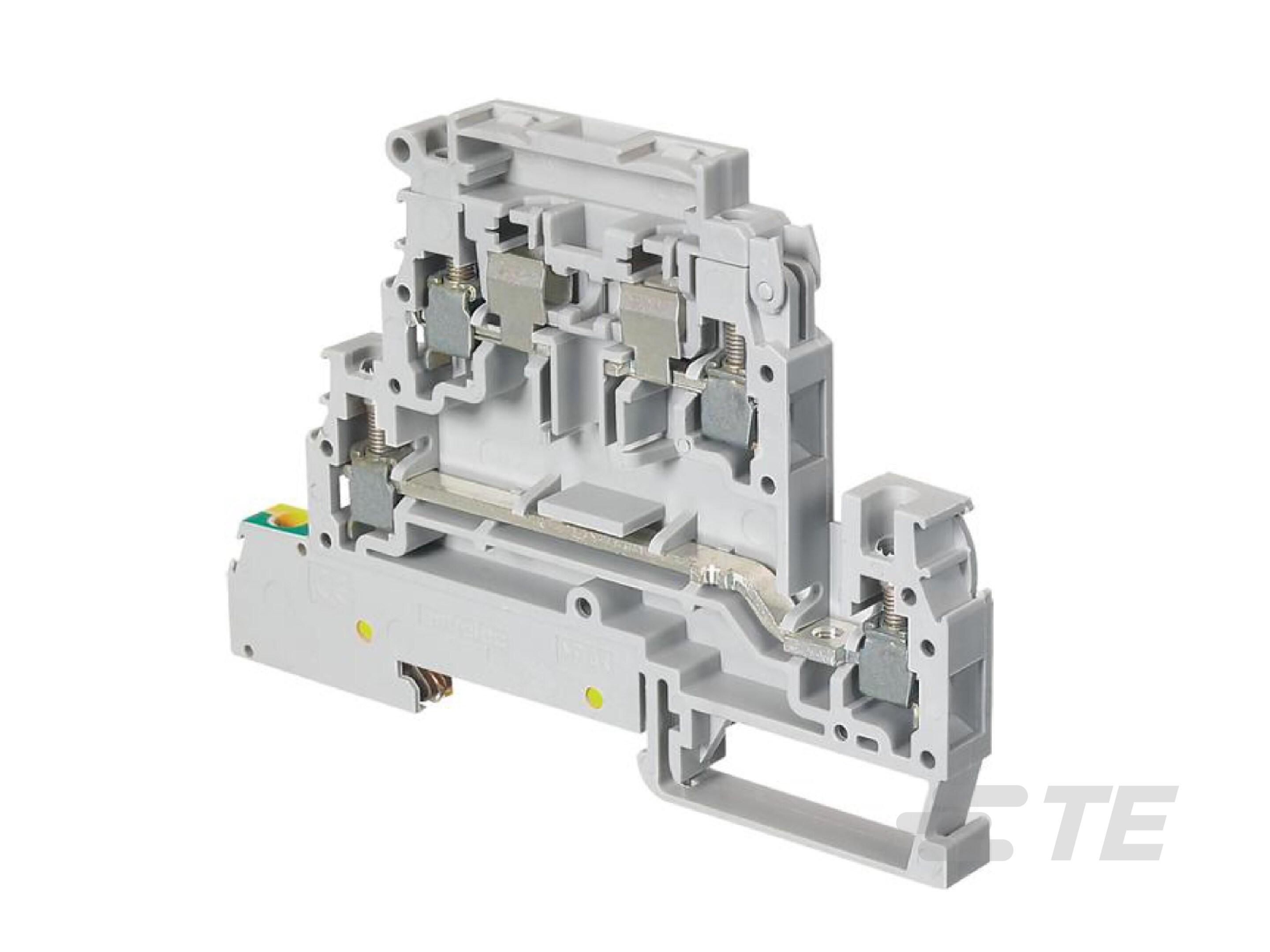

Entrelec 1SNA400271R1500 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Part Number # 1SNA400271R1500
SKU # 2412965
ENTRELEC 1SNA400271R1500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA400271R1500 |
| SKU #: | 2412965 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 99.1 mm H x 8 mm W x 64.5 mm D |
| Number of Poles: | 5 |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Fused |
| Color: | Grey |
| Connection type: | Screw Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| UNSPSC: | 39121629 |
| UPC: | 00066201940922 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNA400271R1500 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Brand: ENTRELEC
Part Number: 1SNA400271R1500
Gray neon double deck fuse holder block with, 6.3 Amp rated current with screw clamp connection that accepts 20-12 AWG UL wire range
Additional Description: TEC -1SNA400271R1500 D4/8.D2.P.SFL Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - with blown fuse indicator - Grey 040027115 fuses - with blown fuse indicator - Grey
Catalog Description: - Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks), - Save space with double deck terminal blocks: 2 independent circuits 1 fuse on upper deck + 1 feed-through + 1 ground, - Quickly identify the defective circuit thanks to the blown fuse indicator.
1SNA400271R1500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #2412965Part Number #1SNA400271R1500UNSPSC39121629UPC00066201940922
