Part Number # 1SNK508424R0000
SKU # 2418350
Image Disclaimers Message
1SNK508424R0000
Entrelec 1SNK508424R0000 Find the same functionalities as ZS4-D2-SF1
Part Number # 1SNK508424R0000
SKU # 2418350
TE Connectivity 1SNK508424R0000 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNK508424R0000 |
| SKU #: | 2418350 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 89.2 mm H x 8 mm W x 66.5 mm D |
| Series: | SNK |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Feed-Through |
| Wire Size: | 10 AWG |
| Color: | Grey/Dark Grey |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121629 |
| UPC: | 00088861417984 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNK508424R0000 Find the same functionalities as ZS4-D2-SF1
Brand: TE Connectivity
Part Number: 1SNK508424R0000

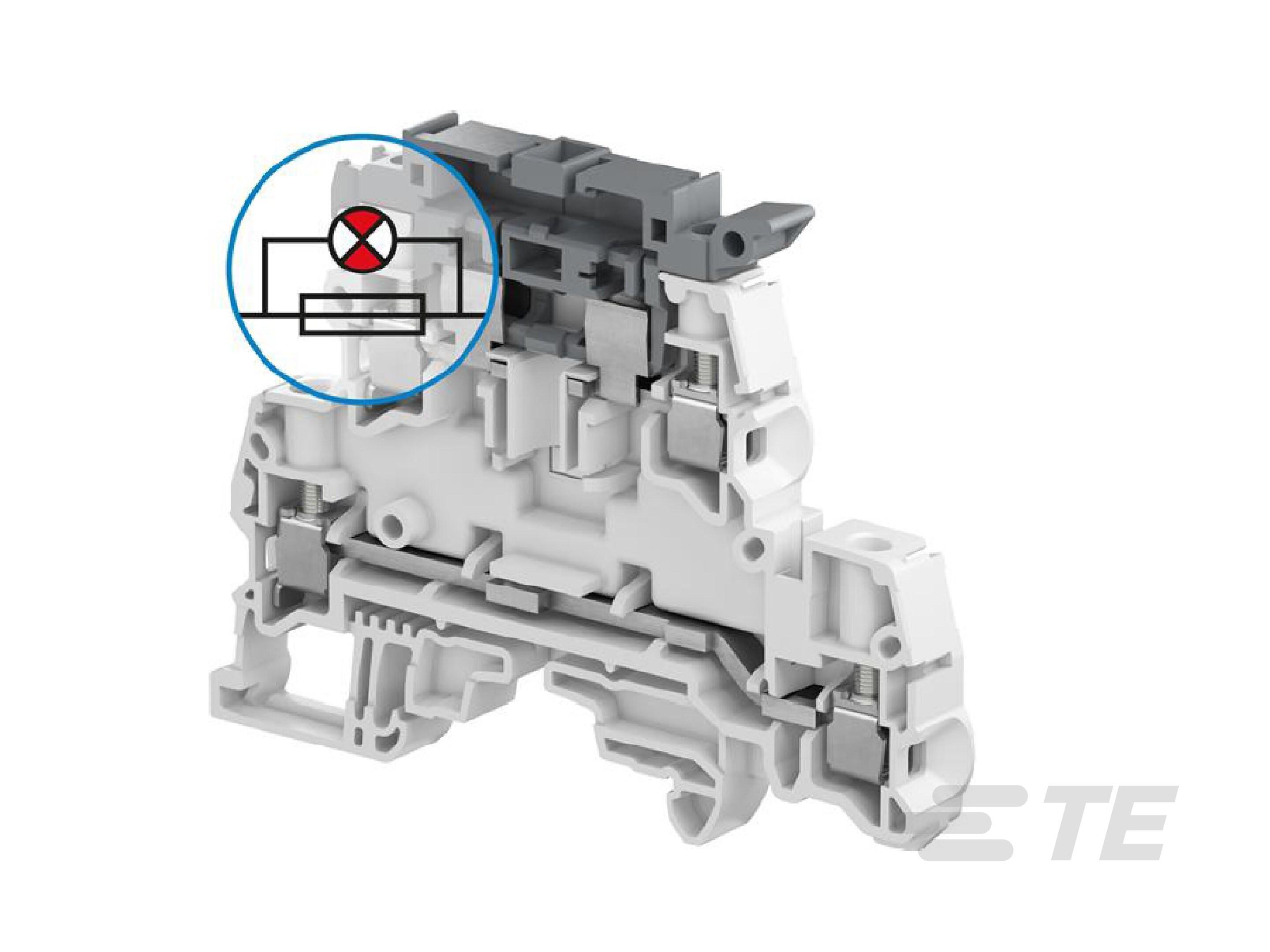

ZS4-D2-SF1-R3 Screw Clamp Terminal Block - Double Deck - Grey - 4 mm2 - 8 mm 0.315 in spacing - Flat marking area
Additional Description: TEC -1SNK508424R0000 (N) ZS4-D2-SF1-R3 Screw Clamp Terminal Block - Double Deck - Grey 1SNK508424R0000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Find the same functionalities as ZS4-D2-SF1, upgraded with our integrated blown fuse indicator (with leakage current < 0.5 mA), - Only one part number needed to fit AC / DC 24 V up to 110 V.
1SNK508424R0000 Application
For Feed-Through & Fuse application1SNK508424R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK508424R0000 Standards
CSA Certified|UL Listed|UL 94V-0|IEC Certified|IP20 Standard|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2418350Part Number #1SNK508424R0000UNSPSC39121629UPC00088861417984
