Part Number # 1SNK705066R0000
SKU # 2396493
1SNK705066R0000
Entrelec 1SNK705066R0000 Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL
Part Number # 1SNK705066R0000
SKU # 2396493
ENTRELEC 1SNK705066R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK705066R0000 |
| SKU #: | 2396493 |
| Amperage Rating: | 24 A |
| Dimensions: | 50.9 mm H x 5.2 mm W x 40.2 mm L |
| Number of Poles: | 2 |
| Series: | SNK |
| Spacing: | 5.2 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | ZK2.5-BK |
| Wire Size: | 12 AWG |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861418011 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNK705066R0000 Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL
Brand: ENTRELEC
Part Number: 1SNK705066R0000
ZK2.5-BK PI-Spring clamp Terminal Block - Feed-through - Black - 2.5 mm2 - 5.2 mm 0.205 in spacing - Flat marking area
Additional Description: TEC -1SNK705066R0000 ZK2.5-BK PI-Spring clamp Terminal Block - Feed-through - Black 1SNK705066R0000
Catalog Description: Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705066R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK705066R0000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2396493Part Number #1SNK705066R0000UNSPSC39121410UPC00088861418011

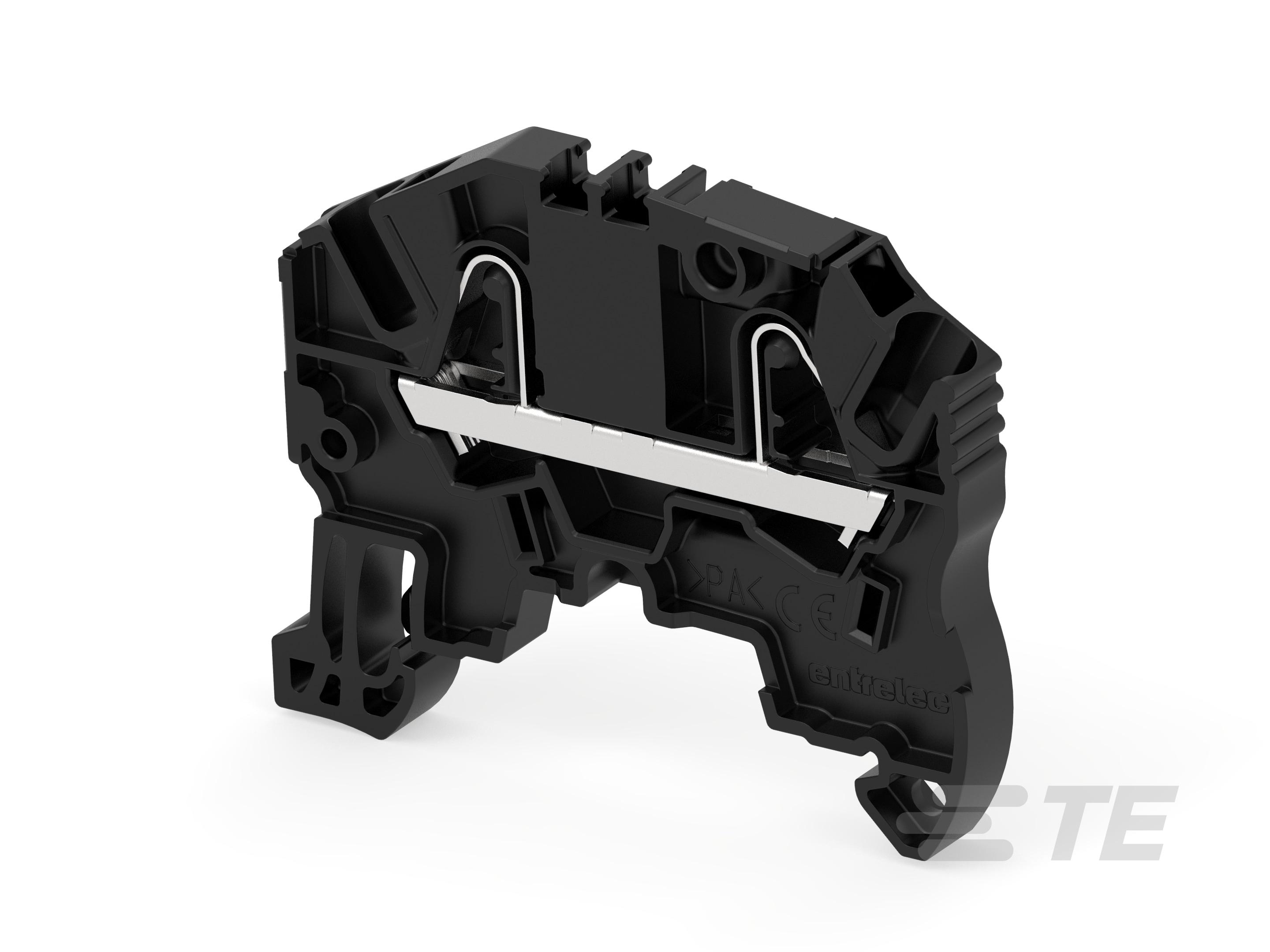

Image provided may only be a representation of final product and may include optional equipment
