Part Number # 1SNK705072R0000
SKU # 2397310
1SNK705072R0000
Entrelec 1SNK705072R0000 Find all the features of the ZK2.5 terminal block with the added option of distributing or branching 3 conductors.
Part Number # 1SNK705072R0000
SKU # 2397310
ENTRELEC 1SNK705072R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNK705072R0000 |
| SKU #: | 2397310 |
| Amperage Rating: | 24 A |
| Dimensions: | 64.7 mm H x 5.2 mm W x 40.2 mm L |
| Number of Poles: | 3 |
| Series: | SNK |
| Spacing: | 5.2 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | ZK2.5-3P-WH |
| Wire Size: | 12 AWG |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861418021 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNK705072R0000 Find all the features of the ZK2.5 terminal block with the added option of distributing or branching 3 conductors.
Brand: ENTRELEC
Part Number: 1SNK705072R0000

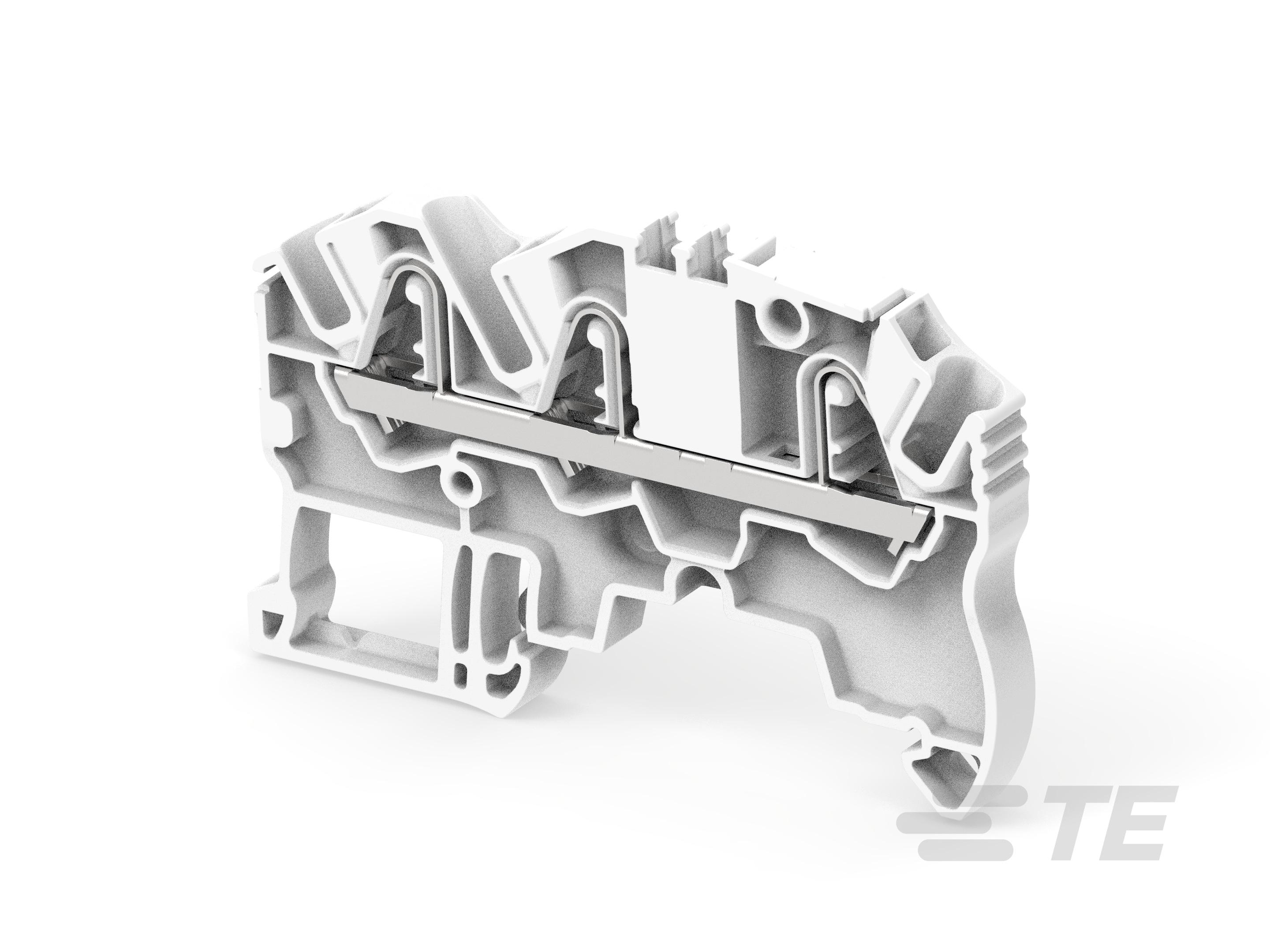

ZK2.5-3P-WH PI-Spring clamp Terminal Block - Feed-through - White - 2.5 mm2 - 5.2 mm 0.205 in spacing - Flat marking area
Additional Description: TEC -1SNK705072R0000 ZK2.5-3P-WH PI-Spring clamp Terminal Block - Feed-through - White 1SNK705072R0000 1SNK705072R0000
Catalog Description: Find all the features of the ZK2.5 terminal block with the added option of distributing or branching 3 conductors.
1SNK705072R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK705072R0000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2397310Part Number #1SNK705072R0000UNSPSC39121410UPC00088861418021
Image provided may only be a representation of final product and may include optional equipment
