Part Number # 1SNK705511R0000
SKU # 2438343
1SNK705511R0000
Entrelec 1SNK705511R0000 Find the same functionalities as ZK2.5-T3 and ease one potential distribution on 6 independent connections.
Part Number # 1SNK705511R0000
SKU # 2438343
$142.73 / 25Each
Typical price:$183.88 / Each
TE Connectivity 1SNK705511R0000 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNK705511R0000 |
| SKU #: | 2438343 |
| Amperage Rating: | 22 A |
| Dimensions: | 99.6 mm H x 5.2 mm W x 73.8 mm L |
| Number of Poles: | 6 |
| Series: | SNK |
| Spacing: | 5.2 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | ZK2.5-T1 |
| Wire Size: | 12 AWG |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861463017 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$142.73 / 25Each
Typical price:$183.88 / Each
Quantity:
Entrelec 1SNK705511R0000 Find the same functionalities as ZK2.5-T3 and ease one potential distribution on 6 independent connections.
Brand: TE Connectivity
Part Number: 1SNK705511R0000
Additional Description: TEC -1SNK705511R0000 ZK2.5-T1 PI-Spring clamp Terminal Block - Triple Deck - Feed-through 1 circuit - Grey 1SNK705511R0000
Catalog Description: Find the same functionalities as ZK2.5-T3 and ease one potential distribution on 6 independent connections.
1SNK705511R0000 Item Features
- Screw is locked in total safety
- Maintenance and trouble shooting operations are minimized thanks to our anti-release system
- High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
- 50% faster assembly time thanks to the locking pin
- 10 pre-assembled blocks plugged-in on rail at a time
- Excellent marker visibility thanks to the exclusive top marking location
- Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers
- Reliable hardened steel clamp
- Convenient double central channels allow multiconfigurations like jumpering, testing and measuring
- Time and stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
- Flat marking surface allows the use of marker cards, labels or pre-marking by hand
- Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)
- Circuit identification is improved thanks to the 20% larger marking area
- Pre-mark by hand or with label on our flat marking surface and start immediately the wiring, before the final markers mounting
1SNK705511R0000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2438343Part Number #1SNK705511R0000UNSPSC39121410UPC00088861463017

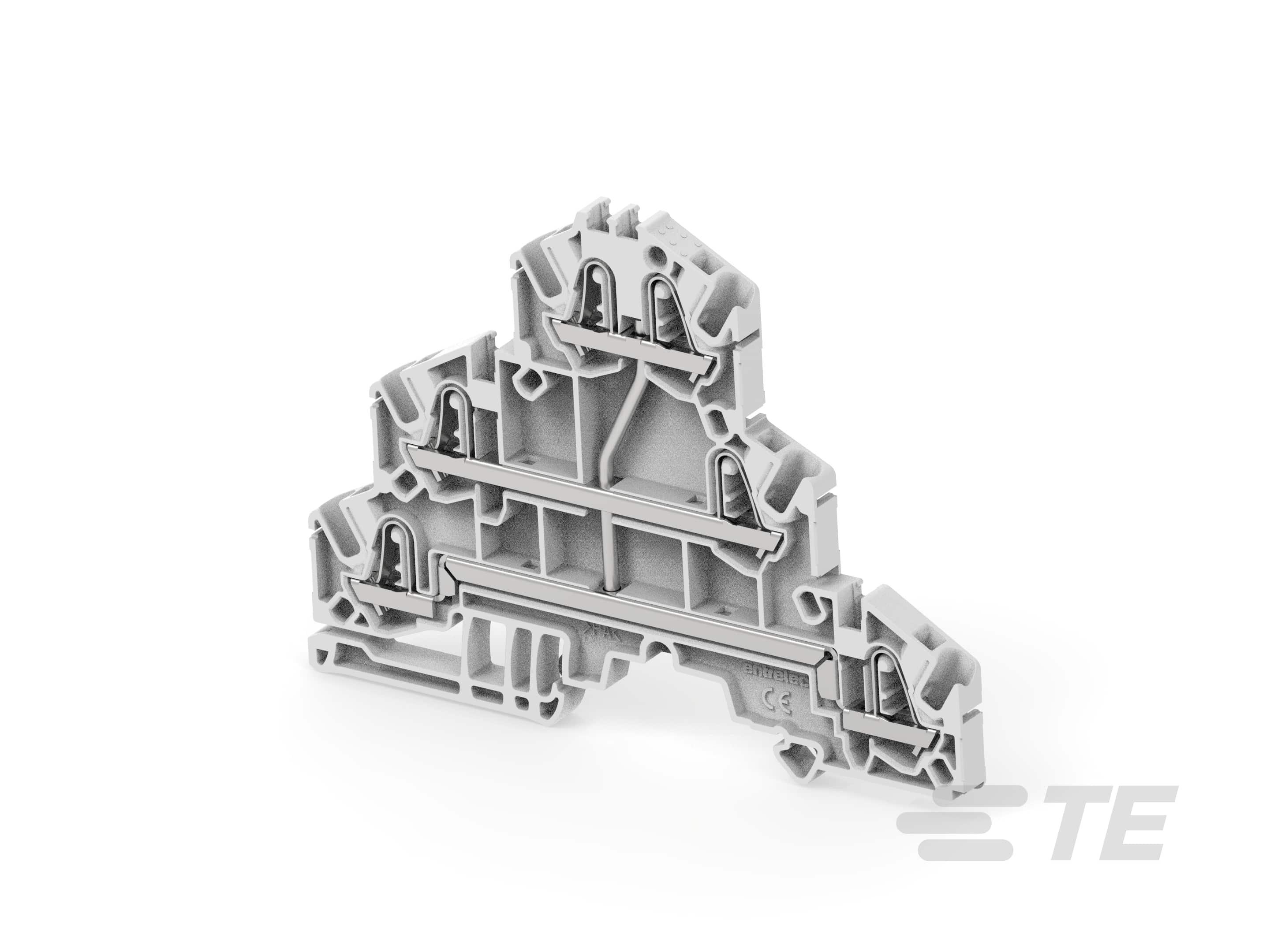

Image provided may only be a representation of final product and may include optional equipment
