Part Number # ZK2.5-L-N-PE
SKU # 2397250
Image Disclaimers Message

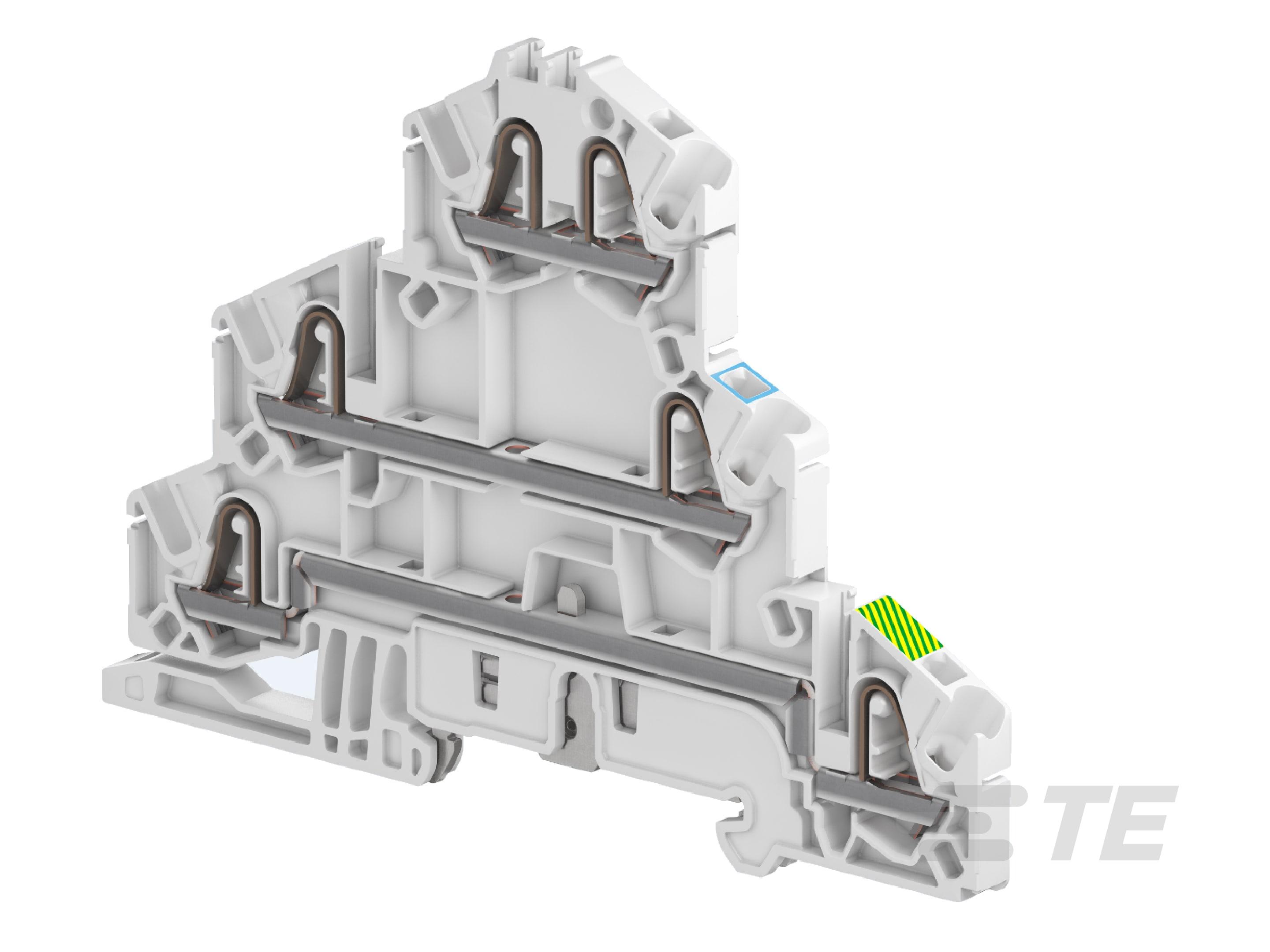

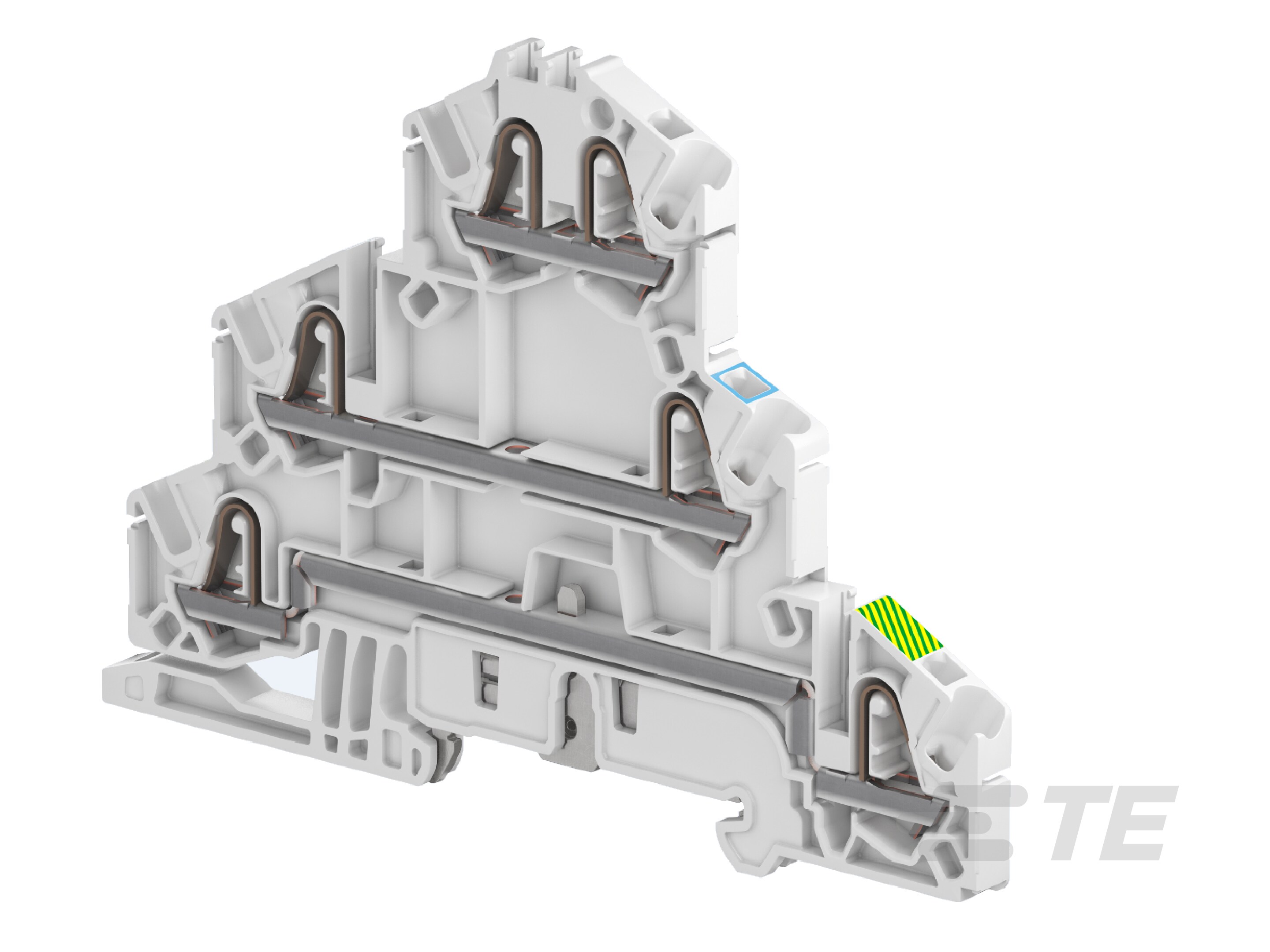

ZK2.5-L-N-PE
Entrelec 1SNK705513R0000 Combine high performance with compact dimensions: -500 V IEC 300 V UL
Part Number # ZK2.5-L-N-PE
SKU # 2397250
$144.50 / 25Each
Typical price:$186.25 / Each
ENTRELEC ZK2.5-L-N-PE Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | ZK2.5-L-N-PE |
| SKU #: | 2397250 |
| Amperage Rating: | 22 A |
| Dimensions: | 101.9 mm H x 5.2 mm W x 73.34 mm L |
| Series: | SNK |
| Spacing: | 0.205 in |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Feed-Through |
| Type: | Feed-Through |
| Wire Size: | 12 AWG |
| Color: | Grey |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861463022 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$144.50 / 25Each
Typical price:$186.25 / Each
Quantity:
- TE Connectivity, 1SNK705513R0000, Terminal Block, Feed-Through, Series: SNK, 500 V, 22 A, 1.6 W Power, 12 AWG Wire, 0.433 in Wire Strip Length, Feed-Through Terminal, 0.205 in Spacing, DIN Rail Mounting, PI Spring Connection, -55 to 110 deg C, Polyamide, Grey, 101.9 mm H x 5.2 mm W x 73.34 mm L Dimensions
ZK2.5-L-N-PE Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
ZK2.5-L-N-PE Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|UL Listed|CSA Certified|IP20|IEC StandardsSKU #2397250Part Number #ZK2.5-L-N-PEUNSPSC39121410UPC00088861463022
