Part Number # 1SNK706151R0000
SKU # 2421953
Image Disclaimers Message
1SNK706151R0000
Entrelec 1SNK706151R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # 1SNK706151R0000
SKU # 2421953
TE Connectivity 1SNK706151R0000 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNK706151R0000 |
| SKU #: | 2421953 |
| Dimensions: | 79 mm H x 6 mm W x 41.2 mm L |
| Number of Poles: | 4 |
| Series: | SNK |
| Spacing: | 0.236 in |
| Temperature Rating (Degrees F): | -67 to 230 deg F |
| Terminal Type: | Spring Clamp |
| Type: | Ground |
| Wire Size: | 10 AWG |
| Color: | Green/Yellow |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861418052 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNK706151R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Brand: TE Connectivity
Part Number: 1SNK706151R0000

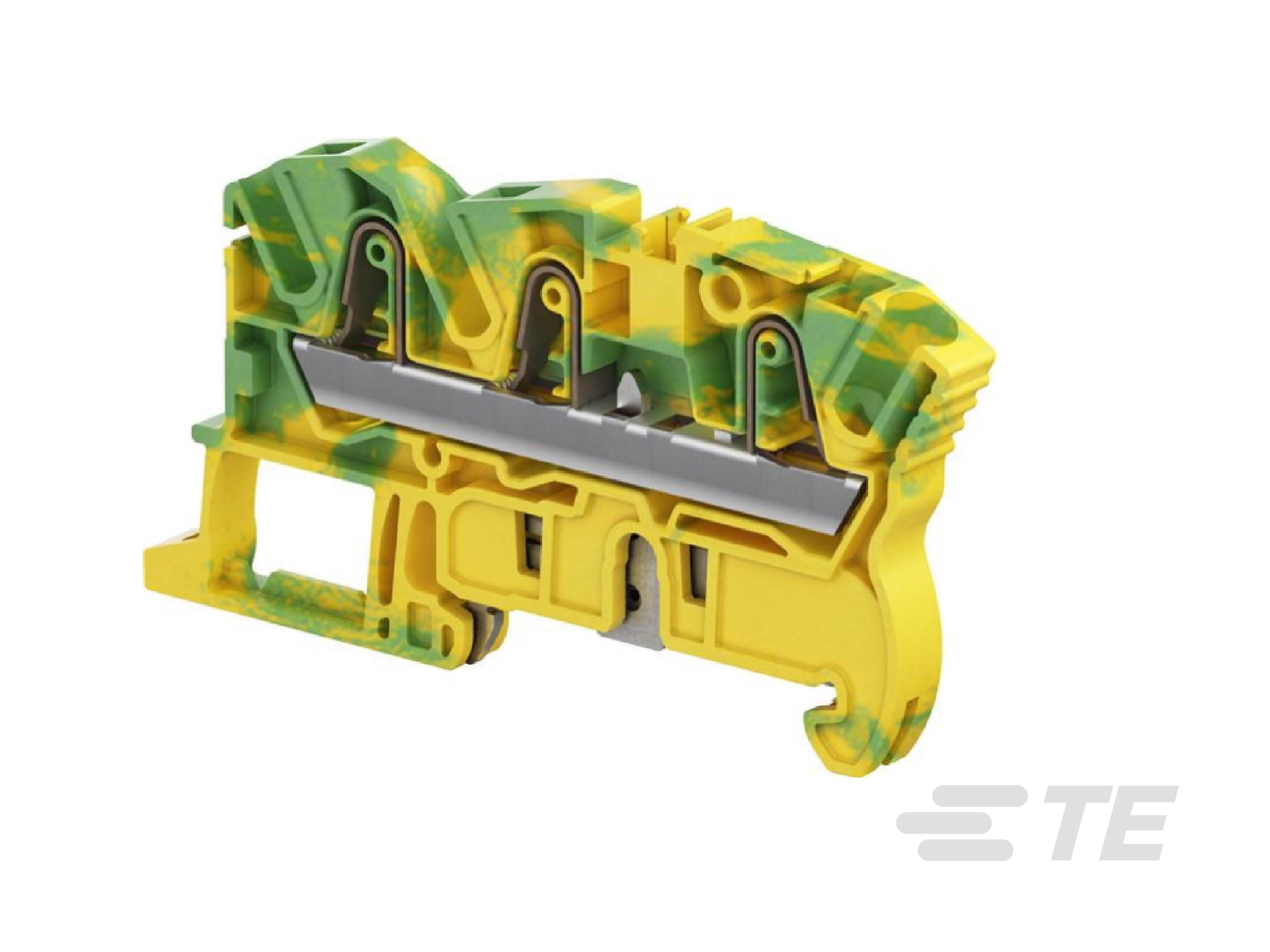

ZK4-PE-3P PI-Spring clamp Terminal Block - Ground - Green Yellow - 4 mm2 - 6 mm 0.236 in spacing - Flat marking area
Additional Description: TEC -1SNK706151R0000 ZK4-PE-3P PI-Spring clamp Terminal Block - Ground - Green Yellow 1SNK706151R0000
Catalog Description: Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of the IEC 60947-7-2 terminal block standard, - Secured snap on or off the rail, - Profile aligned with ZK4-3P.
1SNK706151R0000 Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
1SNK706151R0000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|IP20|IEC 60947-7-2SKU #2421953Part Number #1SNK706151R0000UNSPSC39121410UPC00088861418052
