Part Number # ZK6-PE
SKU # 2397511
Image Disclaimers Message
ZK6-PE
Entrelec 1SNK708150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Part Number # ZK6-PE
SKU # 2397511
ENTRELEC ZK6-PE Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | ZK6-PE |
| SKU #: | 2397511 |
| Dimensions: | 64.6 mm H x 8 mm W x 42 mm L |
| Series: | SNK |
| Spacing: | 0.315 in |
| Temperature Rating (Degrees F): | -67 to 230 deg F |
| Terminal Type: | Screw Clamp |
| Type: | Ground |
| Wire Size: | 8 AWG |
| Color: | Green/Yellow |
| Connection type: | PI Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00088861418060 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Entrelec 1SNK708150R0000 Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent
Brand: ENTRELEC
Part Number: ZK6-PE

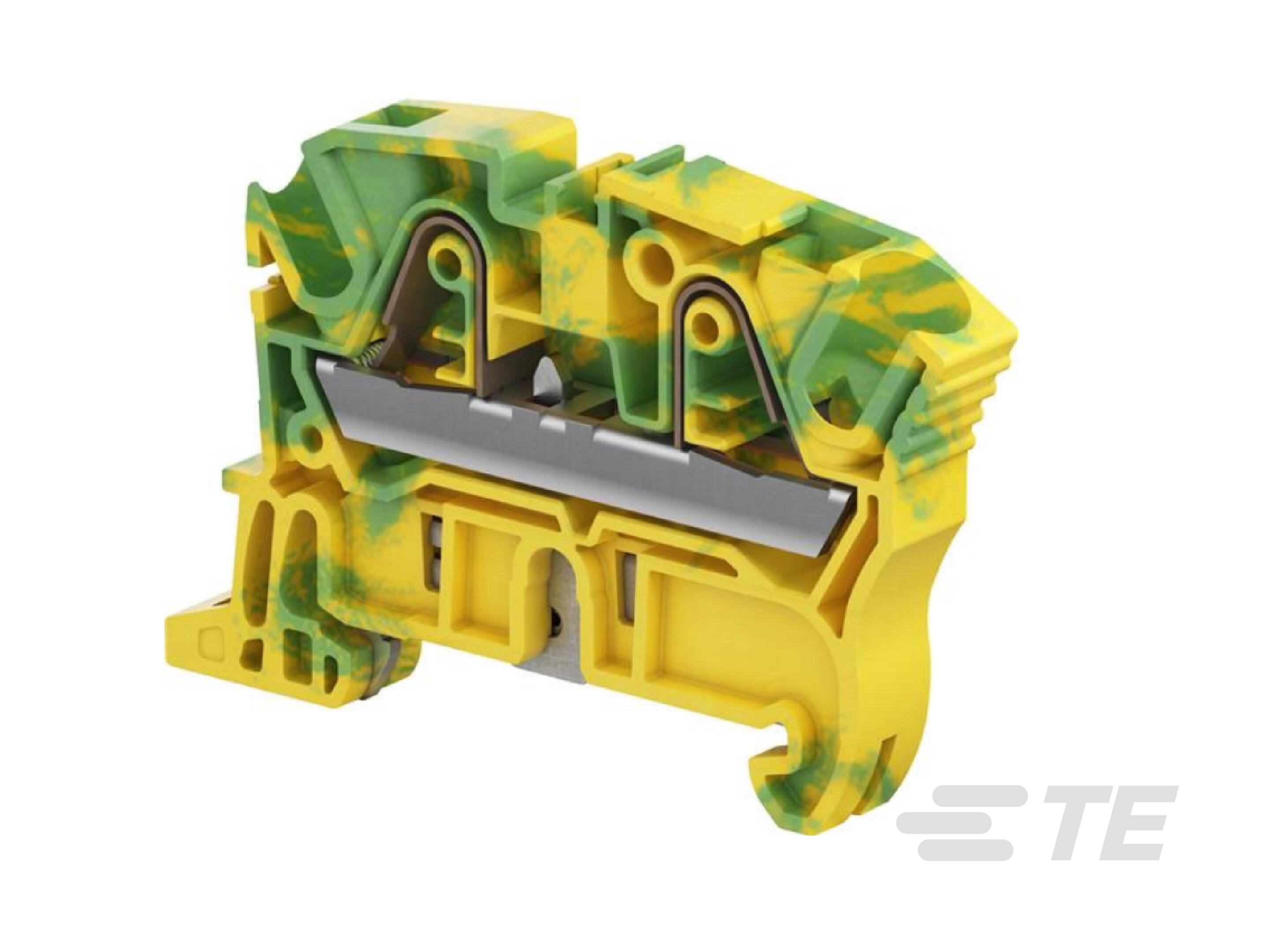

ZK6-PE PI-Spring clamp Terminal Block - Ground - Green Yellow - 6 mm2 - 8 mm 0.315 in spacing - Flat marking area
Additional Description: TEC -1SNK708150R0000 ZK6-PE PI-Spring clamp Terminal Block - Ground - Green Yellow 1SNK708150R0000
Catalog Description: Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of the IEC 60947-7-2 terminal block standard, - Secured snap on or off the rail, - Profile aligned with ZK6.
ZK6-PE Item Features
- Multiple wire access angles to header interface
- Mates with industry standard headers on the same centerline spacing
- Fast wire connections
- Custom marking and printing available
- Available in additional colors
- Wide range of wire-to-board and wire-to-wire terminal blocks
- Custom solutions available
- Accessory options available to improve interconnect performance
ZK6-PE Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|UL 94V-0|IP20|IEC 60947-7-2SKU #2397511Part Number #ZK6-PEUNSPSC39121410UPC00088861418060
