Brand: Erico
Erico 534404 Bus Conductors
Part Number # 534404
SKU # 2424393
Brand: Erico
534404
Erico 534404 Bus Conductors
Part Number # 534404
SKU # 2424393
$337.80 / 10Each
Typical price:$501.00 / Each
Erico 534404 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 534404 |
| SKU #: | 2424393 |
| Amperage Rating: | 160 A |
| Cable Size: | 49.34 kcmil |
| Finish: | Tin Plated |
| Mounting Hole Size: | 0.26 in |
| Series: | IBSB |
| Thickness: | 0.35 in |
| Type: | Advanced Insulated |
| Country of origin: | FR |
| Length: | 24.8 in |
| Material: | Copper/Thermoplastic Elastomer |
| Width: | 0.71 in |
| Manufacturer Name: | nVent |
| UNSPSC: | 26121541 |
| UPC: | 00078285696076 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$337.80 / 10Each
Typical price:$501.00 / Each
Quantity:

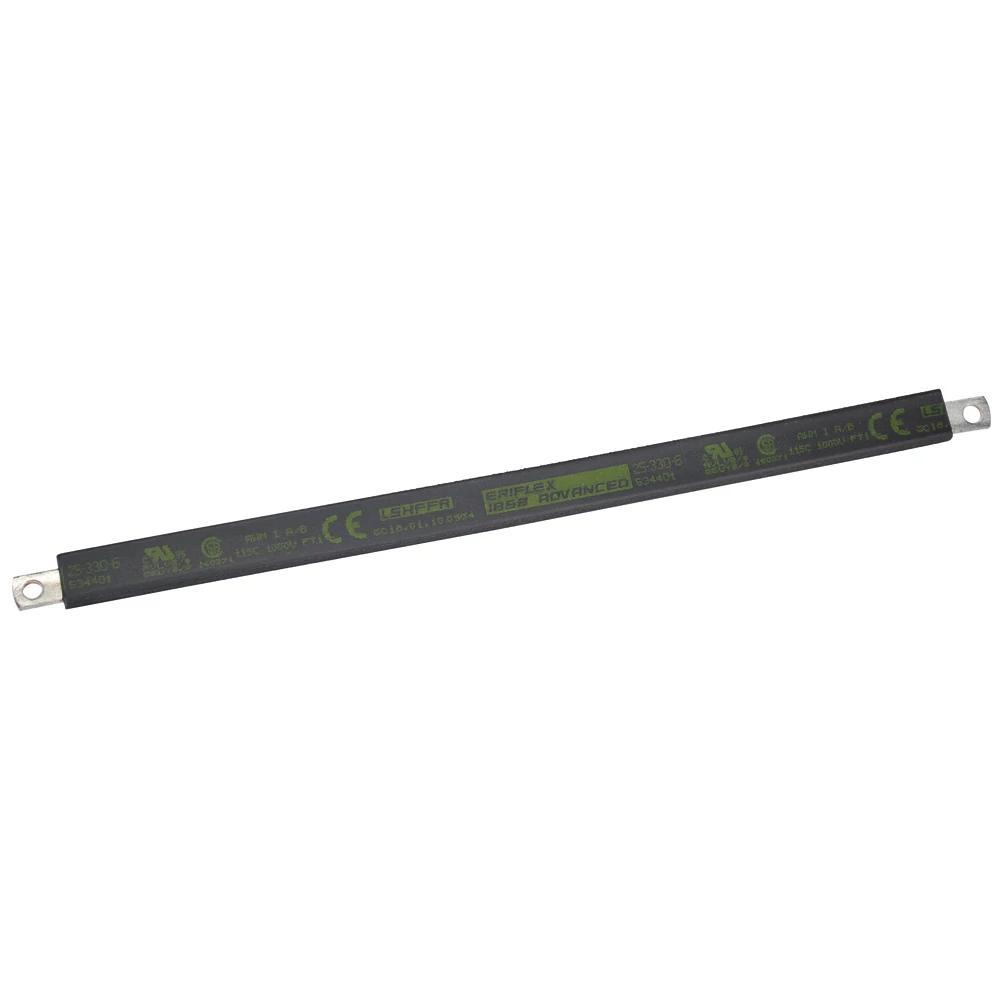

- nVent ERIFLEX Braided Conductor, Advanced Insulated, Series: IBSB, 49.34 kcmil Cable, 24.8 in Length, 0.71 in Width, 0.35 in Thickness, 160 A, 20 kV/mm Tensile, 0.26 in Mounting Hole, Copper/Thermoplastic Elastomer, Tin Plated
534404 Application
Power Connection, Circuit Breakers, Marine and Offshore Applications534404 Item Features
- Suitable for all main molded case circuit breakers
- Resistant to vibration, improving reliability and performance
- Insulated by high-resistance, halogen free, flame retardant and low smoke material
- Improves assembly flexibility and aesthetics
- Quick and easy installation
- No additional cutting, stripping, crimping and punching needed
- Integral palm without lugs or terminals reduces material and assembly weight
- https://youtu.be://Qf2dEjmNfms
534404 Standards
RoHS Compliant|CE Certified|cULus Listed|cURus Recognized|UL 67/758/854/2885/2556|IEC 60439-1/60695-2-1/60754-1/61034-2/61439-1/61439-1 Class II/62821-1/61439-1 Class II/60695-2-12 CC11418 FADV|ISO 5659-2 CC11518 FADV/5659-2|Bureau Veritas 41939|CSA File No. 90005/70173298|DNV GL TAE00003B8|EN 45545-2|UL (IEC) AVLV2 File No. E316390|UL 94 V-0 Flammability RatingSKU #2424393Part Number #534404UNSPSC26121541UPC00078285696076
Image provided may only be a representation of final product and may include optional equipment
