Brand: Erico
Erico 563200 Electrical Connector Assembly
Part Number # 563200
SKU # 2419822
Brand: Erico
563200

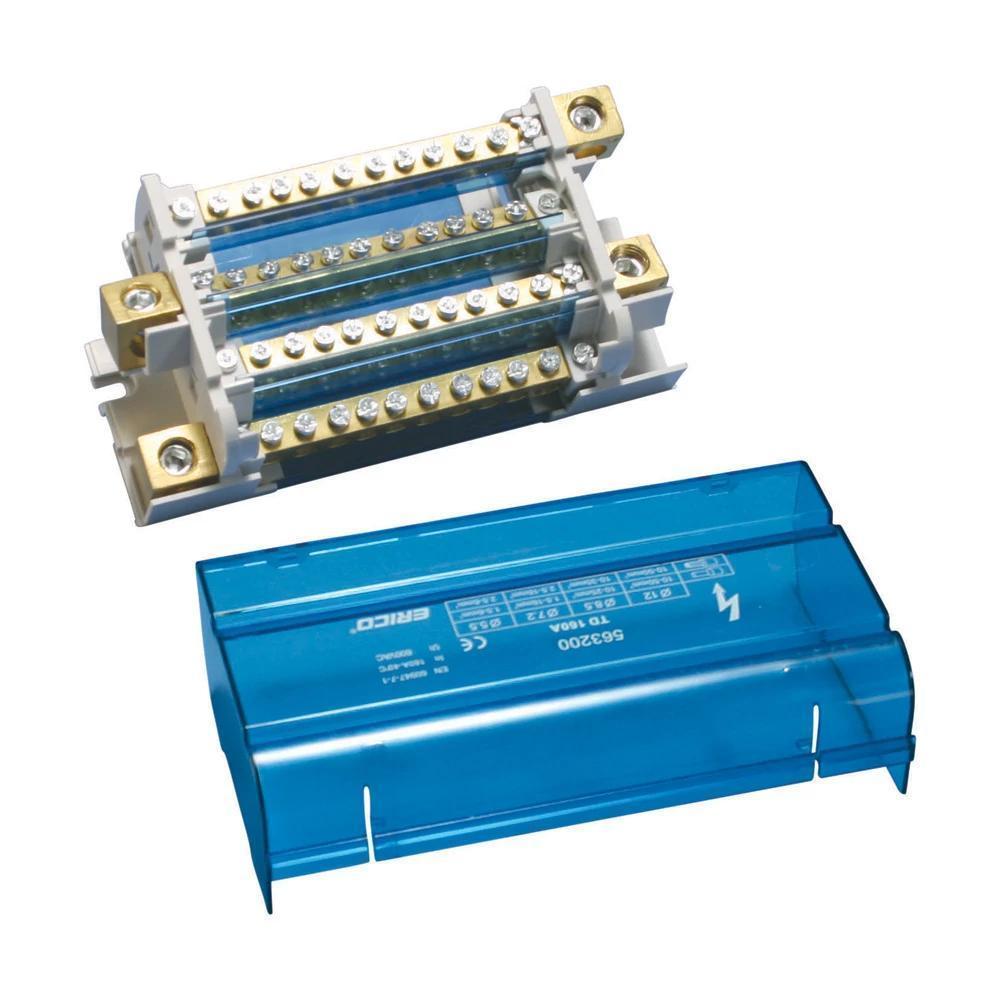

Erico 563200 Electrical Connector Assembly
Part Number # 563200
SKU # 2419822
$197.28 / Each
Typical price:$292.60 / Each
Erico 563200 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 563200 |
| SKU #: | 2419822 |
| Amperage Rating: | 160 A |
| Dimensions: | 3.54 in H x 6.89 in W x 1.97 in D |
| Number of Poles: | 4 |
| Series: | ERI2 |
| Short Circuit Current Rating (kA): | 35 kA |
| Type: | TD Compact |
| Wire Size: | 10 to 50 sq-mm |
| Country of origin: | CN |
| Material: | Brass/Thermoplastic |
| Manufacturer Name: | nVent |
| UNSPSC: | 39121421 |
| UPC: | 00078285644322 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$197.28 / Each
Typical price:$292.60 / Each
Quantity:
- nVent ERIFLEX Distribution Block, TD Compact, Series: ERI2, 690 V AC, 160 A, 4 Pole, 1 Primary Connections/Pole, 11 Secondary Connection/Pole, 10 to 50 sq-mm Wire, 35 kA Short Circuit, Brass/Thermoplastic, 3.54 in H x 6.89 in W x 1.97 in D Dimensions
563200 Includes
563200563200 Item Features
- Minimum space for maximum power
- Protection cover and insulating screens are transparent
- Insulating screen between each row
- Easily clips onto DIN rail or mounts to panel with screws
- Solid bars provide reliability
- Input separated from outputs
- Neutral bar available
- Wiring with or without terminal
563200 Standards
IEC 60947-7-1|EAC 0234267|EAC|0234267|UL 94V-0|RoHS CompliantSKU #2419822Part Number #563200UNSPSC39121421UPC00078285644322
Image provided may only be a representation of final product and may include optional equipment
